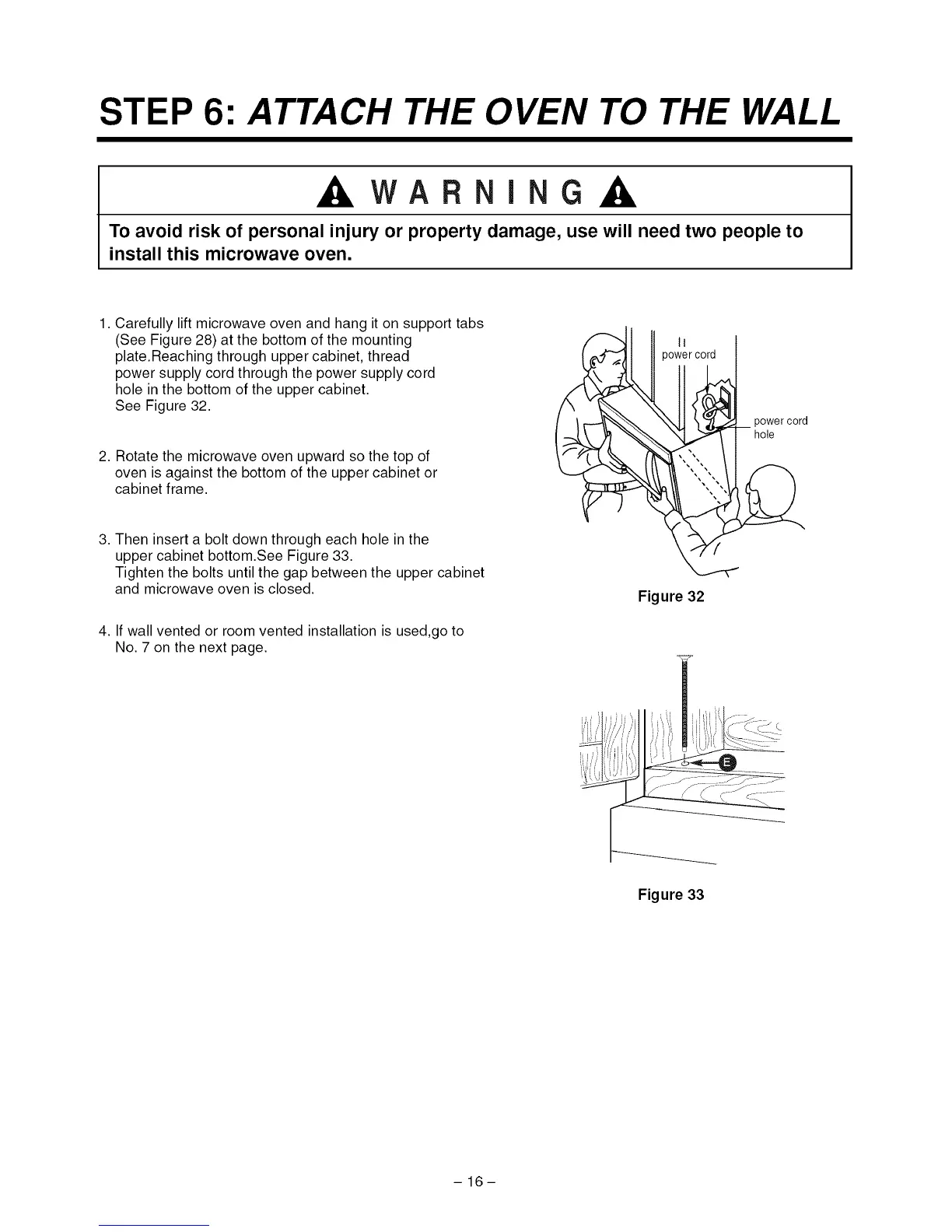

STEP 6: ATTACH THE OVEN TO THE WALL
AWARNINGA
To avoid risk of personal injury or property damage, use will need two people to
install this microwave oven.
1. Carefully lift microwave oven and hang it on support tabs
(See Figure 28) at the bottom of the mounting
plate.Reaching through upper cabinet, thread
power supply cord through the power supply cord
hole in the bottom of the upper cabinet.
See Figure 32.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or
cabinet frame.
It
power cord 1
power cord
hole
3. Then insert a bolt down through each hole in the
upper cabinet bottom.See Figure 33.
Tighten the bolts until the gap between the upper cabinet
and microwave oven is closed.
4. If wall vented or room vented installation is used,go to
No. 7 on the next page.
Figure 32
Figure 33
-16-
