Your microwave oven is shipped with the blower assembled for room-vented. You need to adjust the blower if you
want wall-vented or roof-vented installation.
• DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in
electrical shock.

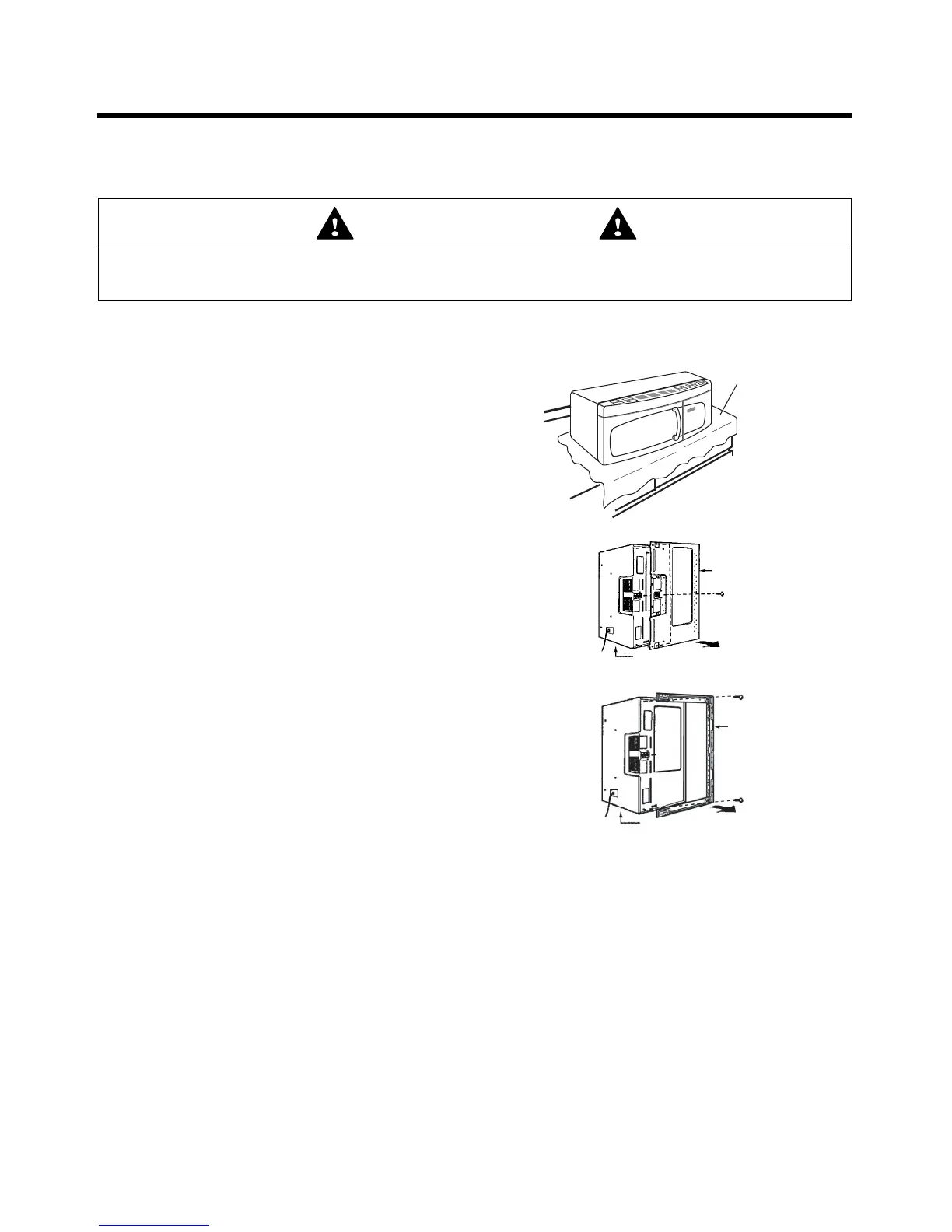

REMOVE THE MOUNTING PLATE:
1. Remove any shipping materials and parts from inside the
microwave oven. Set them aside for later use.
2. Cover the counter top or cooktop with a thick, protective
covering to protect it from damage and dirt. See Figure 11.
NOTE: If you have a free-standing range, disconnect
it, move it onto a piece of cardboard or hardboard and
pull it away from the wall, so that you can get closer to
the upper cabinet and back wall for easier measuring
and drilling.
3. Remove mounting plate screw(s) (1 or 2 screws) from the
mounting plate as shown and discard the screws.
See Figure 12.
4. This plate will be used as the rear mounting plate. (It will be
used to locate and mark the mounting holes on the rear wall.)
5. Locate exhaust adaptor, grease filters and hardware packet.
6. At this point, remove any adhesive tape (if there is any), on the
exhaust adaptor, the grease filters and the power supply cord.
ROOM-VENTED INSTALLATION:
This oven is shipped assembled for room-vented. You need to
go to
STEP 4: PREPARE THE WALL & UPPER CABINET
located
on page 13 .
