– 11 –

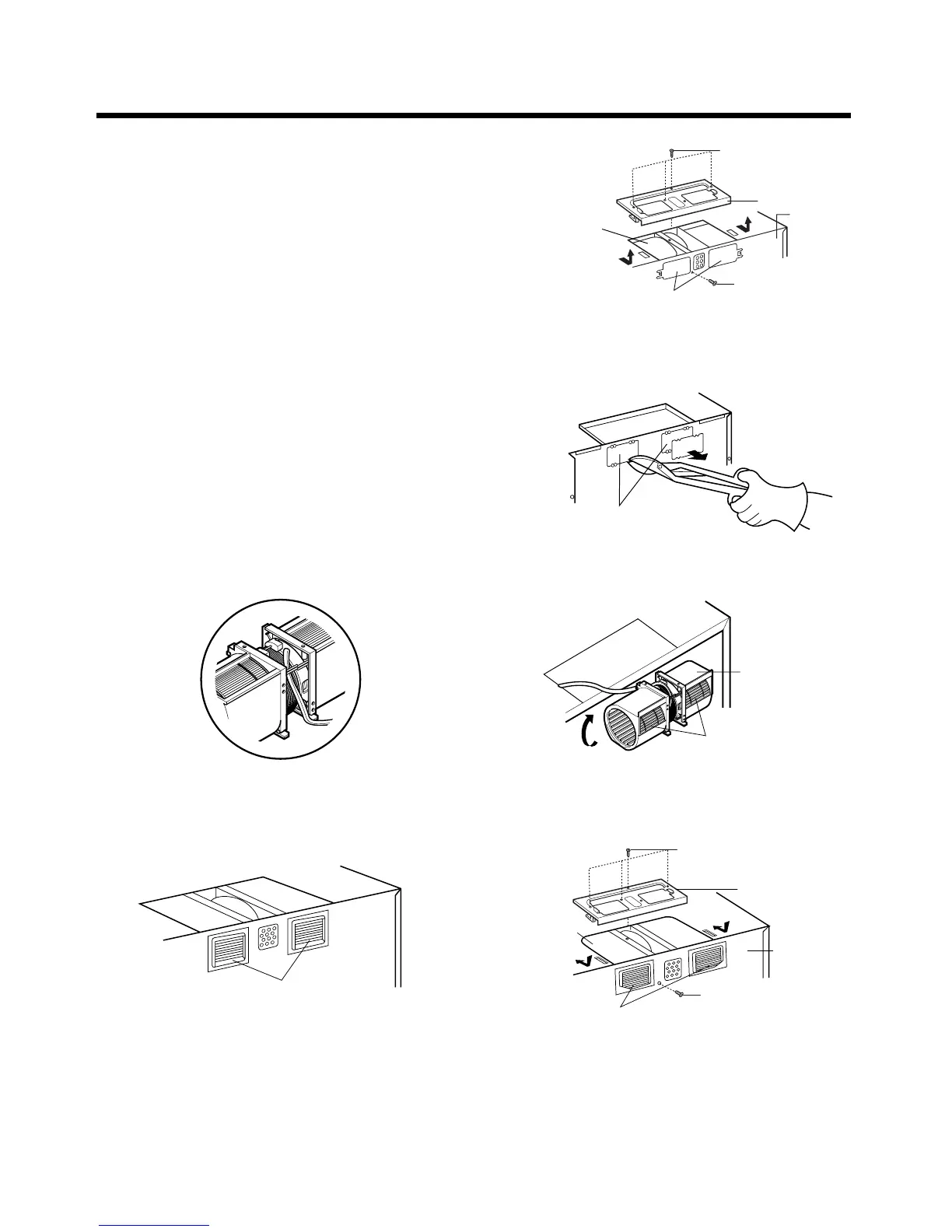

STEP 3: Prepare The Venting Blower
WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and one or
several blower plate mounting screw(s). Remove the
blower plate from cabinet. See Figure 13.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove knockouts
B from Back plate. Discard knockouts. Be careful not to
distort the plate. See Figure 14.
4. Reassemble the blower wire. See Figure 15.
5. Rotate the blower unit so that the exhaust ports face the
rear of the cabinet. See Figure 16.
6. Place blower unit back into cabinet. Check that the exhaust
ports face towards the rear of the cabinet. Be sure the
wires are not pinched. See Figure 17.
7. Reattach the blower plate to cabinet so the exhaust ports
and blower plate opening are aligned. Attach with one
blower unit mounting screw and then one or several blower
plate mounting screw(s). See Figure 18.
Figure 13
Blower Plate
Mounting Screw
Blower Plate
Back Plate
Blower Unit
Mounting Screw
Blower Unit
Parts B
Figure 14
Parts B
Knockouts Parts B
Blower
Unit
Exhaust Ports
Figure 15
Figure 16
Figure 18
Blower Plate
Mounting Screw
Blower Plate
Back Plate
Blower Unit
Exhaust Ports
Blower Unit
Blower Unit
Mounting Screw
Figure 17
Exhaust
Ports
