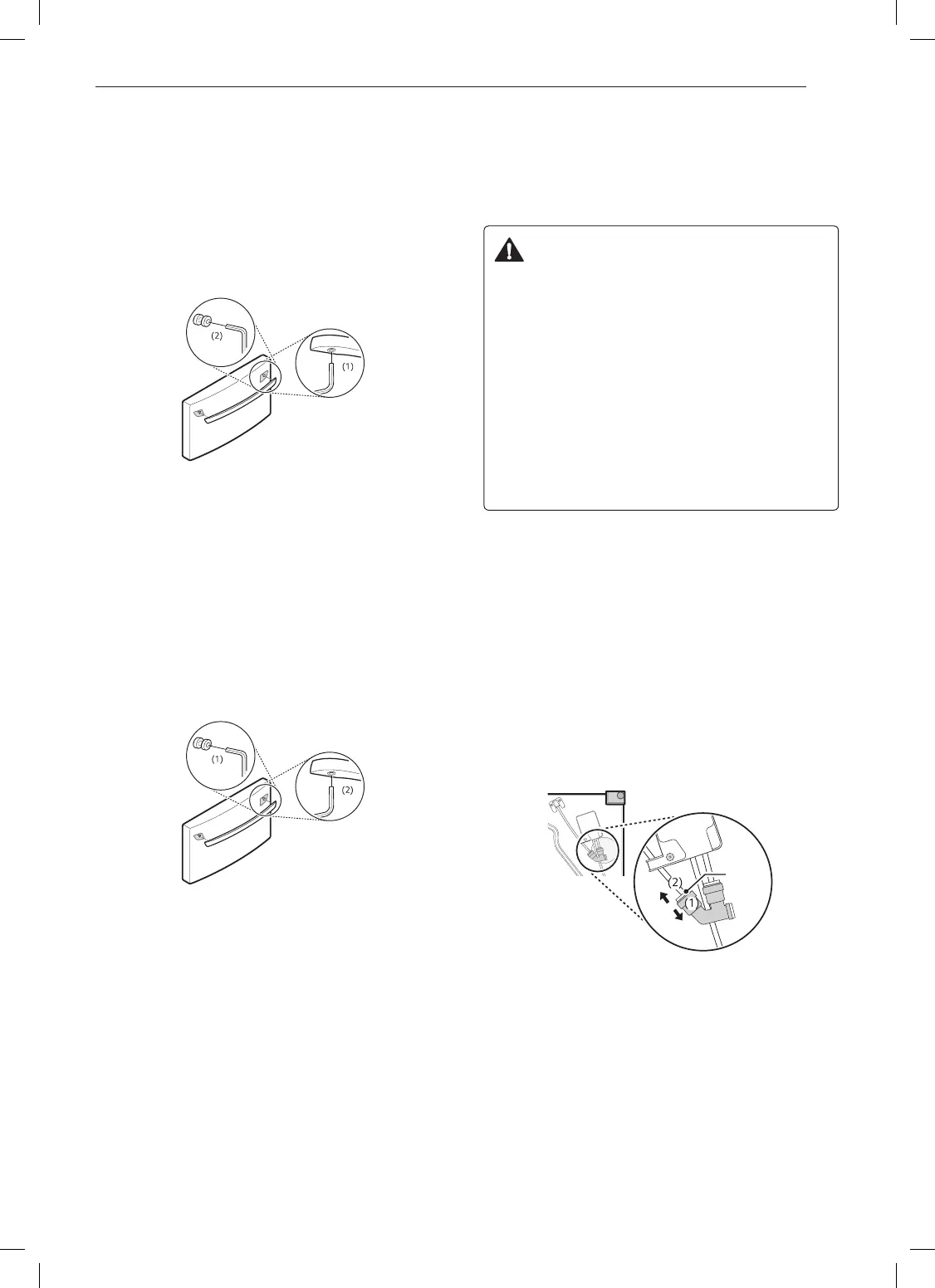

17INSTALLATION
Removing the Freezer Drawer Handle
1
Loosen the set screws (1) located on the lower
side of the handle with a 1/8 in. Allen wrench and
remove the handle.
2
Loosen the mounting fasteners (2) with a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Assembling the Freezer Drawer
Handle
1
Assemble the mounting fasteners (1) at both ends
of the handle with a 1/4 in. Allen wrench.
2
Place the handle on the door by tting the handle
footprints over the mounting fasteners and
tightening the set screws (2) with a 1/8 in. Allen
wrench.
Removing/Assembling the
Doors and Drawers
If the entrance door is too narrow for the refrigerator
to pass through, remove the refrigerator doors and
move the refrigerator sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and stopper.
• Remove food and bins before detaching the
doors and drawers.
• Do not hold the handle when removing or
replacing the doors and drawer as the handle
may come off.
Tools Needed
3/32 in. Allen wrench
1/8 in. Allen wrench
1/4 in. Allen wrench
Removing the Left Refrigerator Door
1
The water supply is connected to the upper
right part of the rear surface of the refrigerator.
Remove the ring in the joint area. Hold the water
supply connection and gently push the collet (1)to
detach the water supply line (2) as shown.
Collet
