16 INSTALLATION
fasteners and tightening the set screws b
with a 1/8 in. Allen wrench.
Removing/Assembling
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors and drawer.
• Do not hold the handle when removing or
replacing the doors and drawer as the handle
may come off.
Tools Needed
3/32 in. Allen wrench
1/8 in. Allen wrench
1/4 in. Allen wrench
Removing the Left Refrigerator
Door
• The number of wire harnesses may vary
depending on the model.

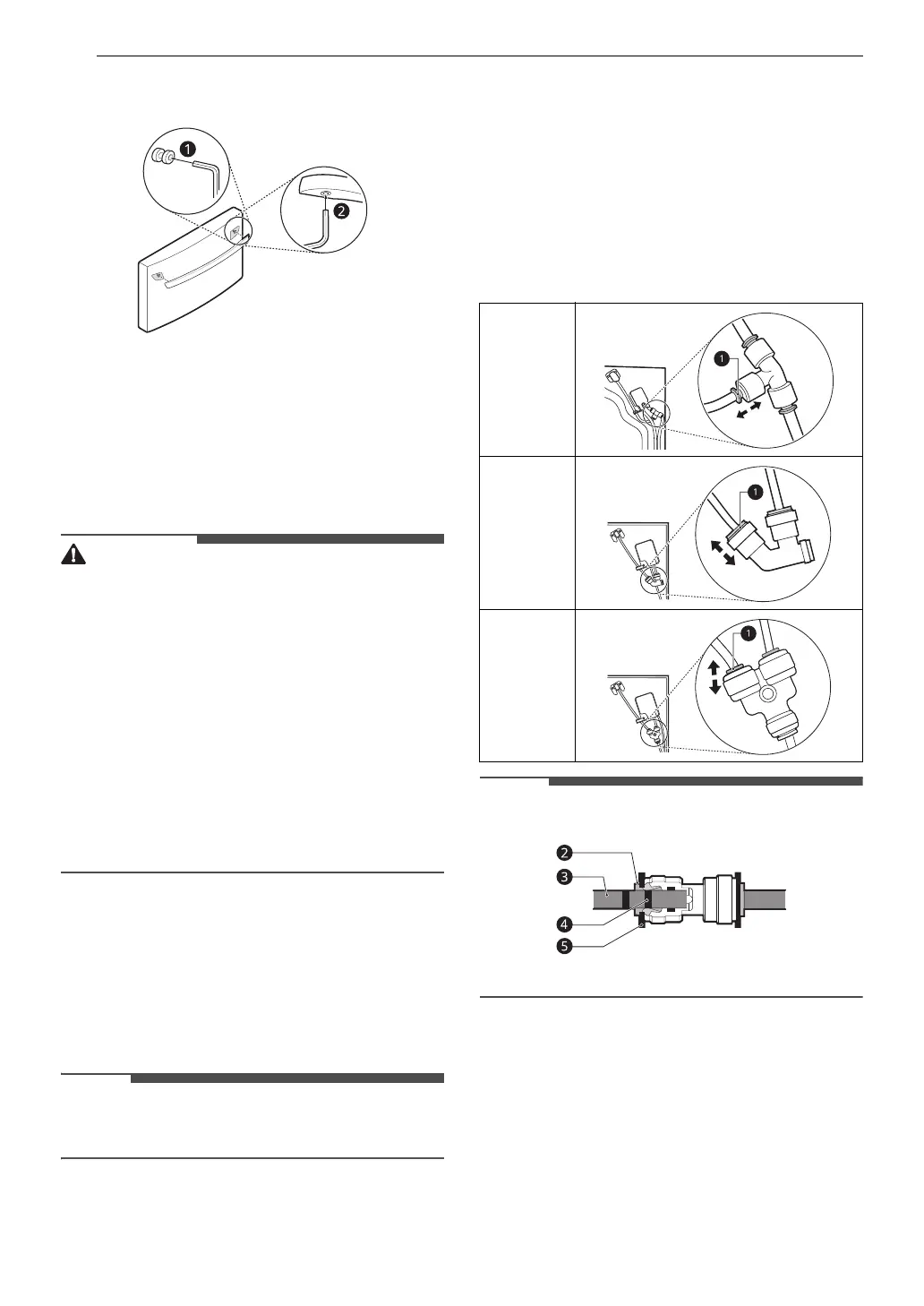

1 The water supply is connected to the upper
right part of the rear surface of the
refrigerator. Remove the clip in the joint area.
Hold the water supply connection and gently
push the collet
a to detach the water supply
line as shown.
• Connections may vary by model.
† This feature is only available on some
models.
• Disassembling/Assembling the Water Lines
b Collet c Tube d Insert line e Clip
2 Remove the screw f from the hinge cover at
the top of the refrigerator. Lift the hook (not
visible), located at the bottom of the front side
of the cover
g with a flat-head screwdriver.
Type A
†
Type B
†
Type C
†
To Next Page
