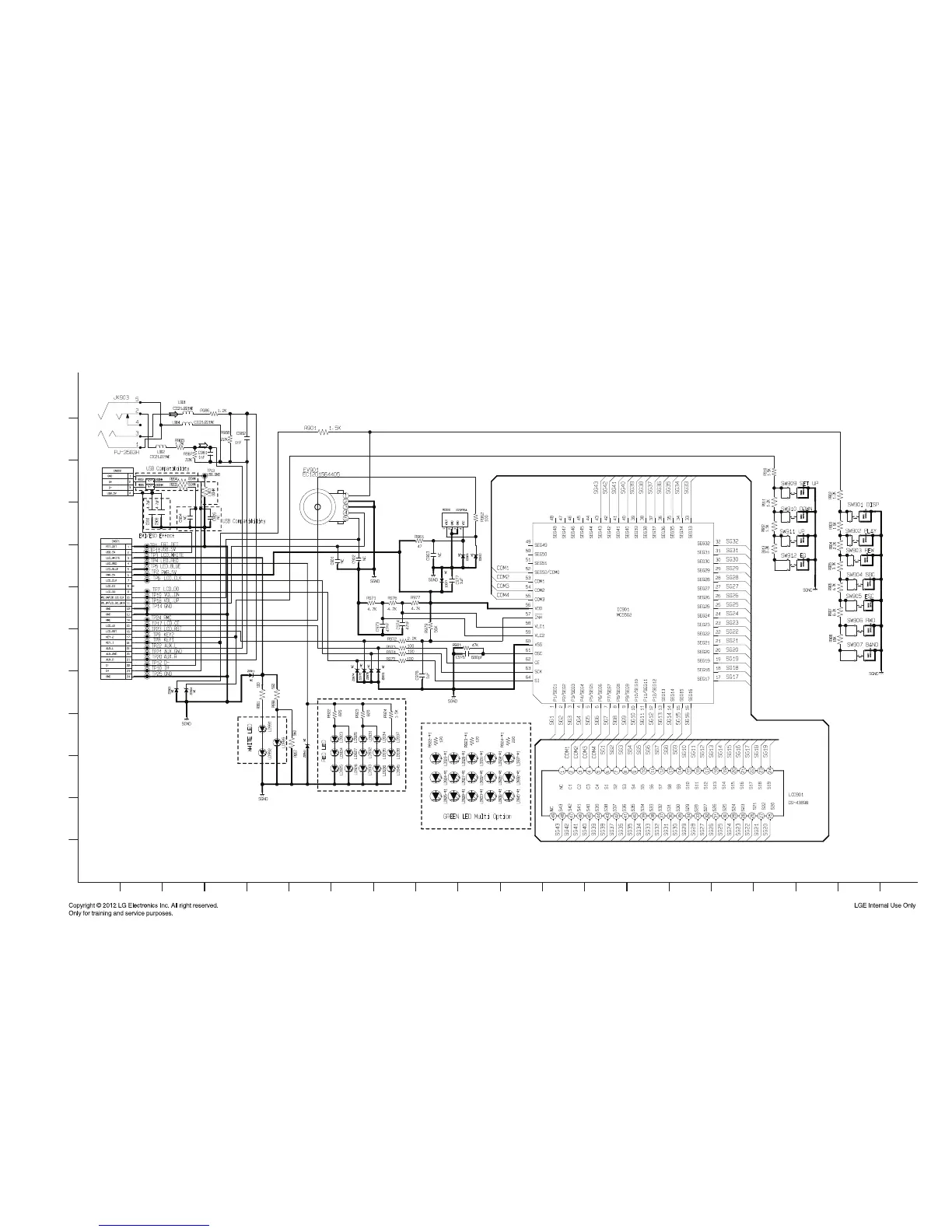

3. FRONT CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
FRONT
EAX64686001_7_1.4-SD
2012. 02. 07
2-31 2-32
