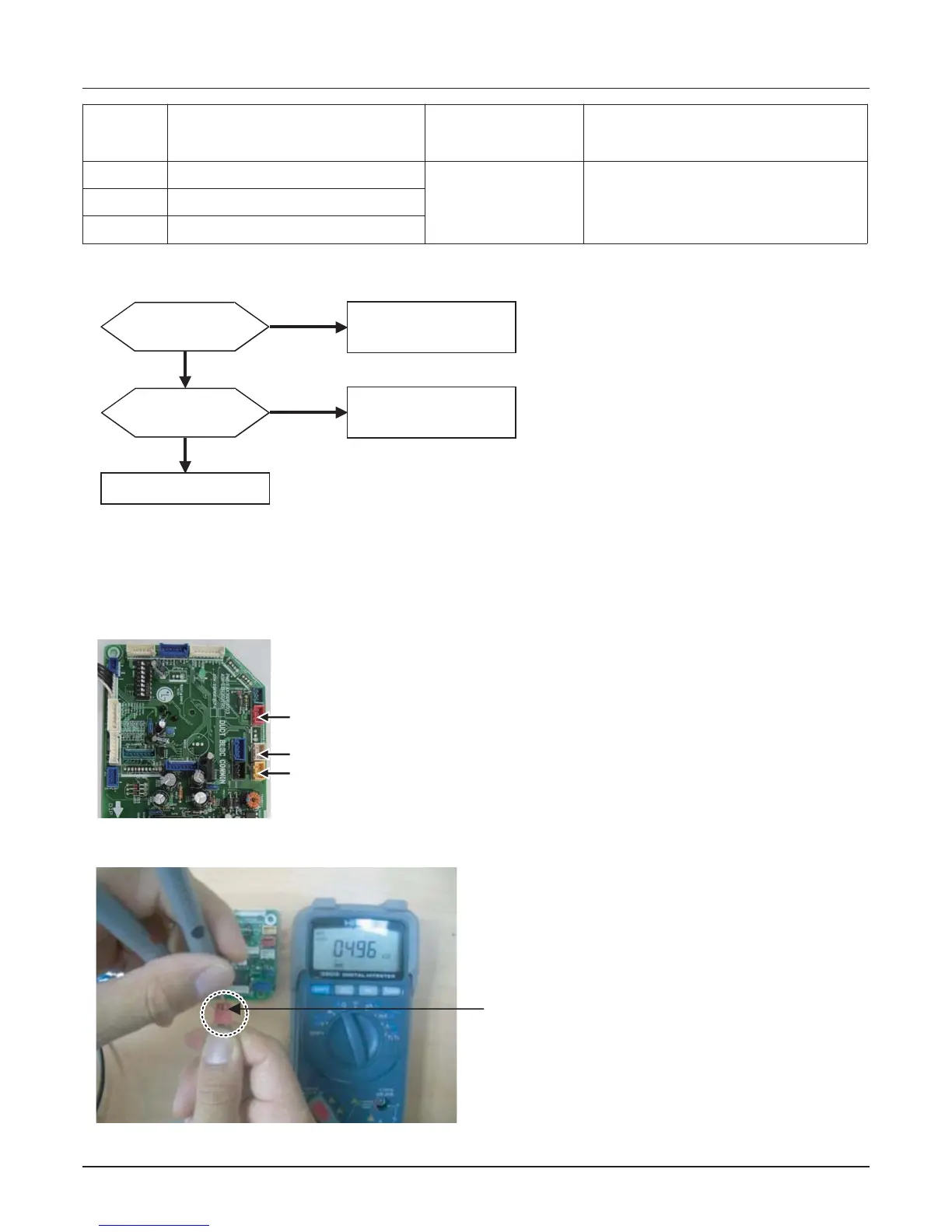

Self-diagnosis function
** In case the value is more than 100kΩ (open) or less than 100Ω (short), Error occurs
Refer: Resistance value maybe change according to temperature of temp sensor,
It shows according to criteria of current temperature(±5% margin) ‘ Normal
Air temp sensor: 10°C(50°F) = 20.7kΩ : 25°C(76°F)= 10kΩ : 50°C(122°F)= 3.4kΩ
Pipe temp sensor: 10°C(50°F) = 10kΩ : 25°C(76°F)= 5kΩ : 50°C(122°F)= 1.8kΩ
n Error diagnosis and countermeasure flow chart
Is sensor properly
connected to PCB?
Is the resistance value
of sensor normal?*
Connect properly to PCB
Change the sensor
Change the PCB
Yes
Yes
No
No
Measure the resistance of outlet pipe temp sensor.
CN_PIPE/OUT: Pipe outlet temp sensor
CN_ROOM: Indoor air temp sensor
CN_PIPE/IN: Pipe inlet temp sensor
Error
No.
Error Type Error Point Main Reasons
01 Indoor unit air sensor error
Indoor unit sensor is
open/short
1. Indoor unit PCB wrong connection
2. Indoor unit PCB failure
3. Sensor problem (main reason)
02 Indoor unit pipe inlet sensor error
06 Indoor unit pipe outlet sensor error
<Standard Indoor Unit>
<Fresh Air Intake Unit>
