ENGLISH
Installation Manual 19
Installation
Installation

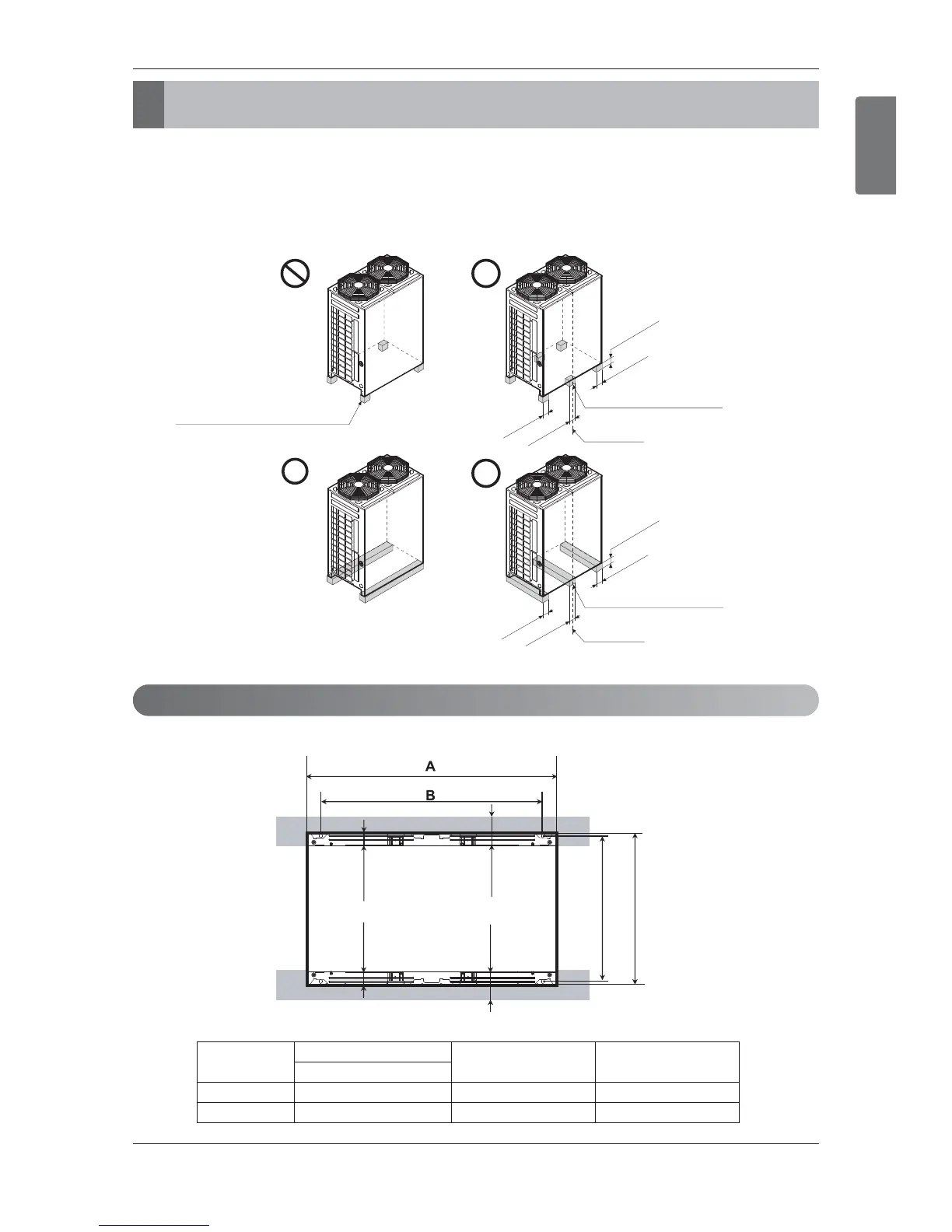

The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least 100mm(3-15/16 inch) under the units legs before
being fixed.
• The outdoor unit supports should have minimum height of 200mm(7-7/8 inch).
• Anchor bolts (M10) must be inserted at least 75mm(2-15/16 inch).
At least 100mm
At least 100mm
At lea
s
t 100mm
At least 100mm
At least 100mm
Set up supports under center of the unit.
Center of the Unit
At least 100mm
At least 200mm
The outdoor unit should not be
supported only by the corner
supports.
Set up supports under center of the unit.
Center of the Unit
At least 200mm
730(28-3/4)
760(29-29/32)
65(2-9/16)
65(2-9/16)
Unit : mm(inch)
At least
65(2-9/16)
At least
65(2-9/16)
Chassis
Outdoor unit capacity
A [mm(inch)] B [mm(inch)]
H/R
UX2 8HP 920(36-7/32) 792(31-3/16)
UX3 10~14HP 1240(48-13/16) 1102(43-3/8)
