Getting Started 9
Getting Started
1

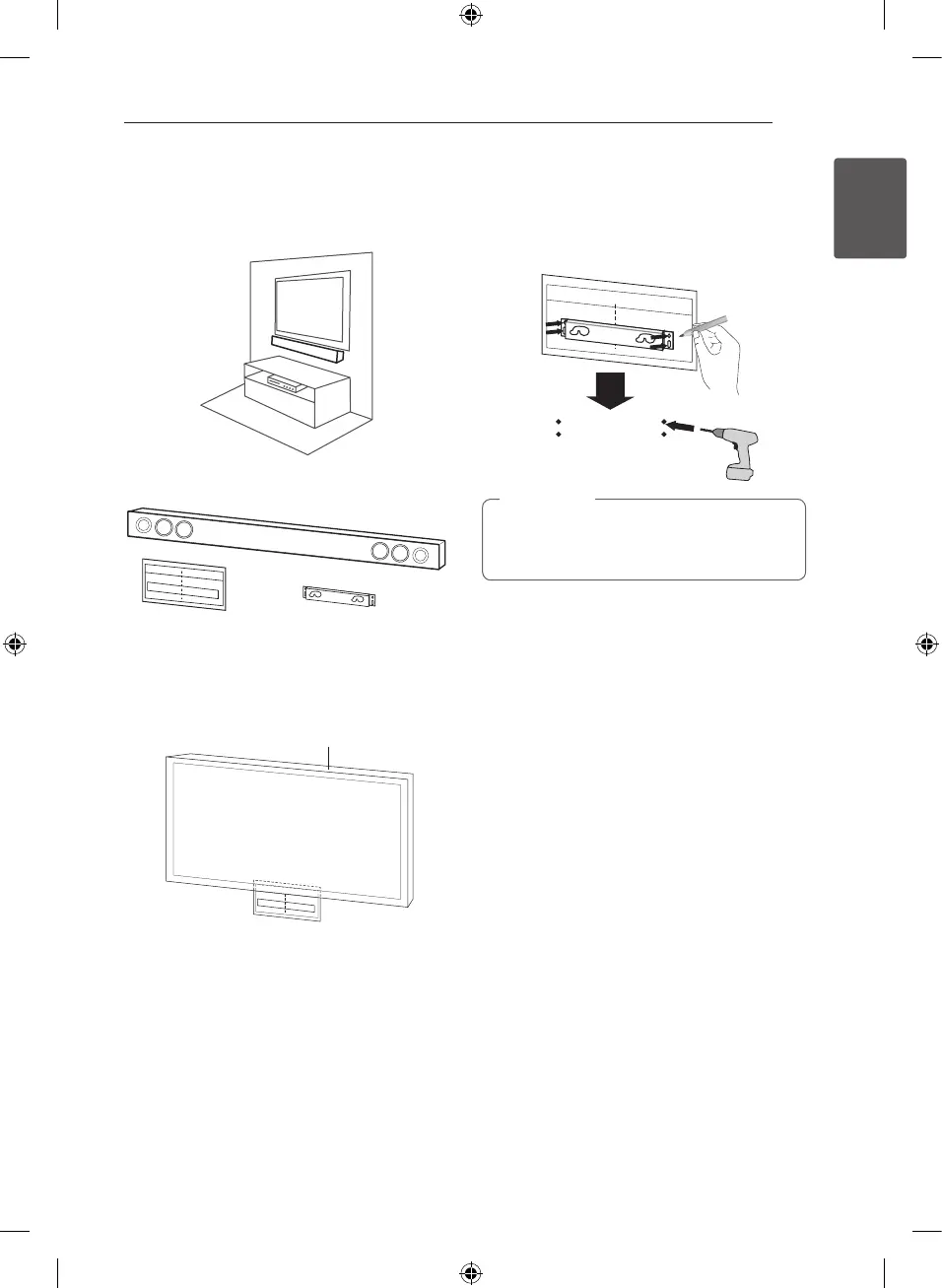

Mounting the main
unit on a wall
You can mount the main unit on a wall.
Prepare screws and bracket.
Unit
Wall bracket
Wall Mount Bracket
Installation Template
1. Match the TV’s BOTTOM EDGE of Wall Mount
Bracket Installation Template with the bottom
of TV and attach to the position.
TV
2. When you mount it on a wall (concrete), use
the wall plugs (Not supplied). You should drill
some holes. A guide sheet (Wall Mount Bracket
Installation Template) is supplied to drill. Use the
sheet to check the point to drill.
Wall Mount Bracket Installation Template
Screws and Wall Plugs are not supplied for
mounting the unit. We recommend the Hilti
(HUD-1 6 x 30) for the mounting.
,
Note
NB3630A-NB_DHKGLLK_ENG.indd 9 2013-10-30 11:07:01
