3-3
ONE POINT REPAIR GUIDE
2. POWER ON ERROR
No display or Not working.
2-1. IC601
1) Check 3.3 VA at L602.
2) If 3.3 VA is not checked at the point, then find 18.7 V at pin7 of IC601.
3) 1), 2) is NG. Replace IC601.
2-2. IC602
1) Check 5.1 VA at L606.
2) If 5.1 VA is not checked at the point, then find 18.7 V at pin7 of IC602.
3) 1), 2) is NG. Replace IC602.
2-3. IC603
1) Check 12 VA at L604.
2) If 12 VA is not checked at the point, then find 18.7 V at pin7 of IC603.
3) 1), 2) is NG. Replace IC603.

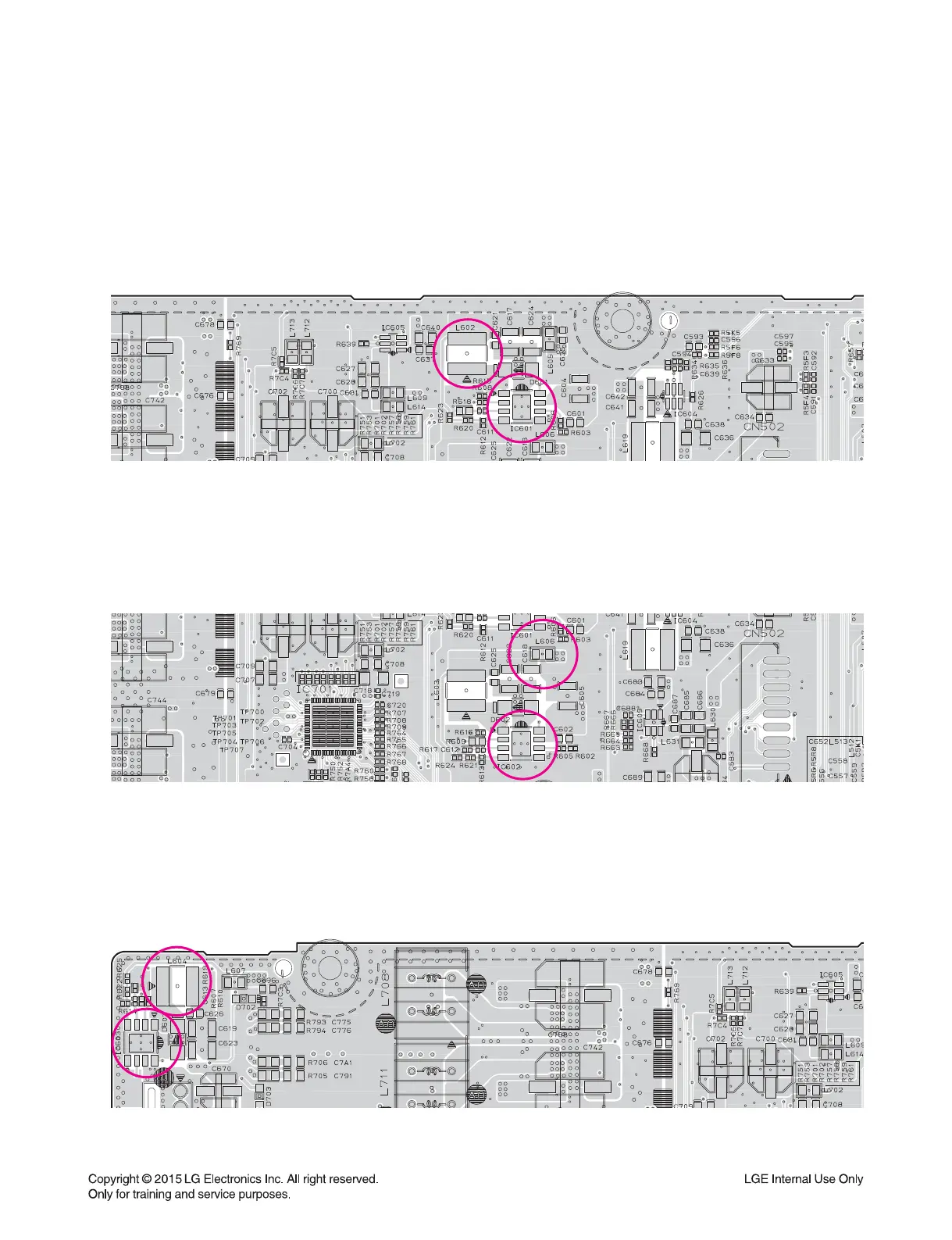

< MAIN board top view >
< MAIN board top view >
< MAIN board top view >
L602
L606
L604
IC601 pin7
IC602 pin7
IC603 pin7
To Next Page
