ONE POINT REPAIR GUIDE
4. NO WIRELESS
4-1. Solution
Replace IC505 on MAIN board.(No 3.3 V)
4-2. How to troubleshoot (Countermeasure)
1) Please check externally status of Wireless board to board connection on your eyes.
(at CN506 and Wireless module)
2) Please check 3.3 V of WL_3V3 (at L509).
If 3.3 V is ok at L509, please check SPI signal (WL_SPI_CS/D0/WP/DI/CLK) of IC505 (pin1, 2, 3, 5, 6).
3) If you can’t have no signal, please replace IC505.
4) If 3) is OK, then proceed S/W update.
Update Wireless TX (Main set) and Wireless RX (Subwoofer) each.
4-3. Service hint (Any picture / Remark)

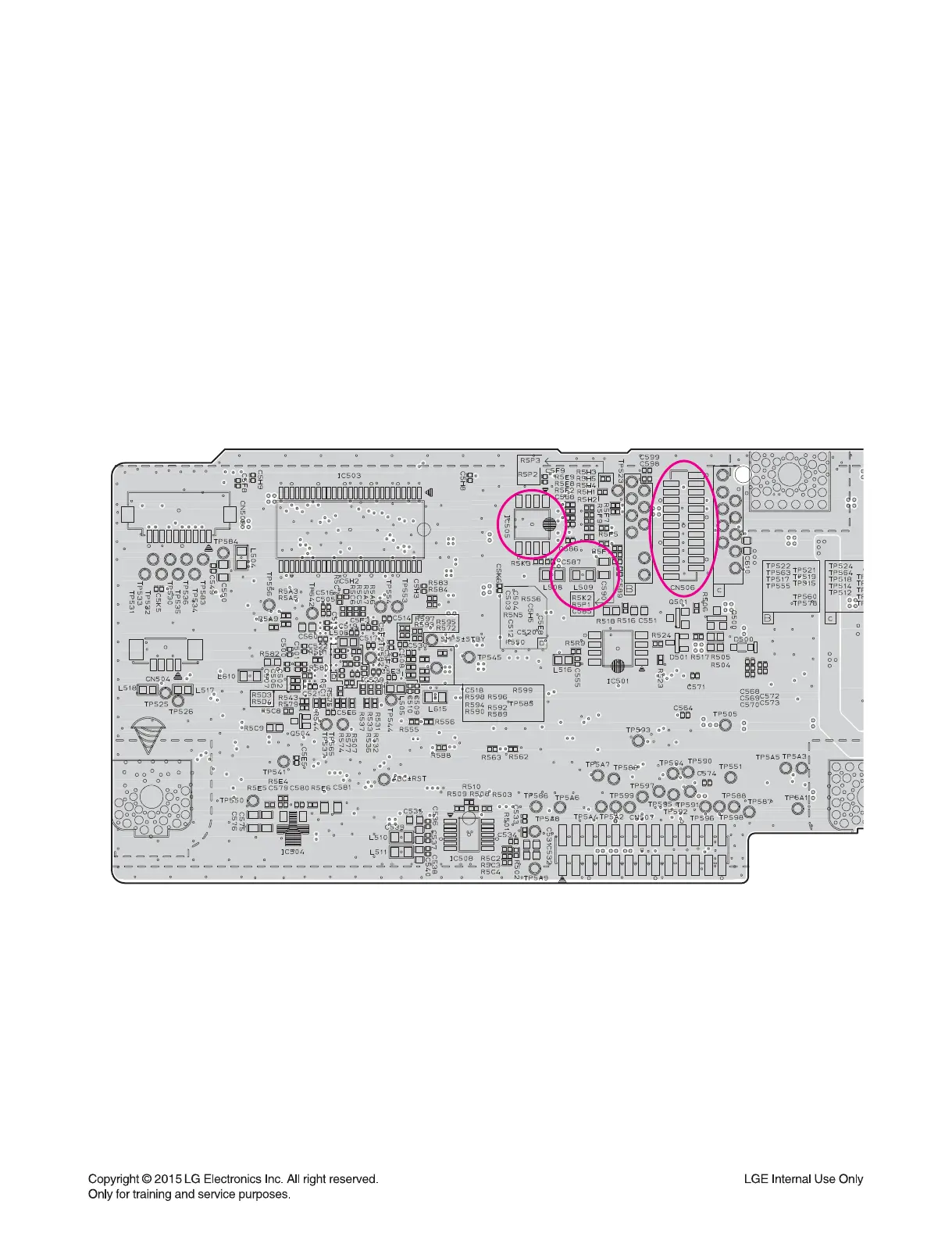

< MAIN board bottom view >
IC505
L509
CN506
