-26-
COMPONENT REPLACEMENT
FIL
TER REMOV
AL

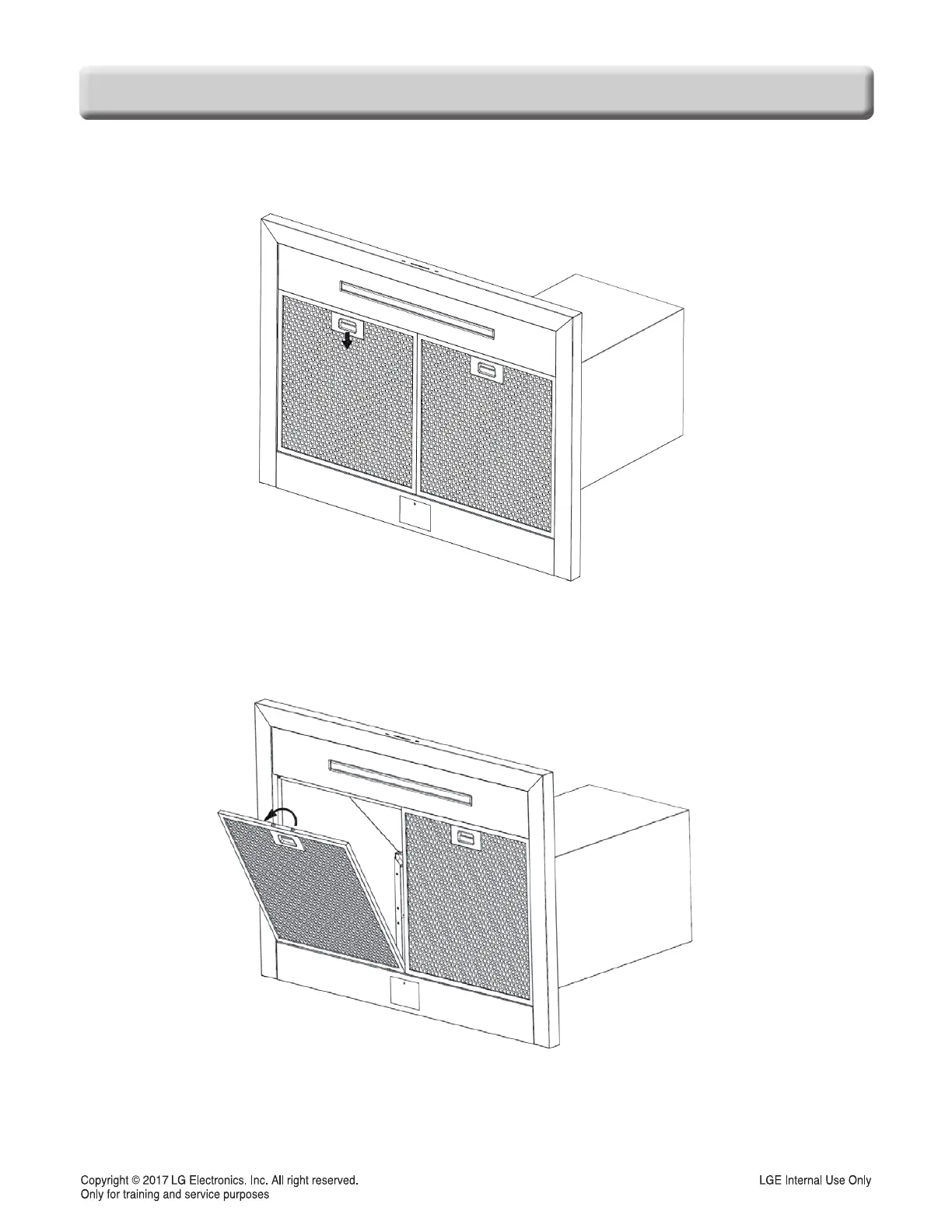

Step 1. Follow the below arrows direction to push in on filter handle.
Step 2. Follow the below arrow direction to remove filter by pulling away from hood.
* Follow these steps in reverse to reassemble the part.
25
27
Table of Contents
Table of Contents
2
General
4
General Safety Precautions
4
Product Specifications
7
General Specifications
7
All Models
7
Model Specific
7
Weight Specifications
7
Dimensions
8
Top Dimensions
8
Planning the Installation
9
Cabinet Layout
9
Warning Fire Hazard
11
Electrical
12
Parts of the Range Hood
14
Product Overview
15
Parts List
15
Touch Controls & Features
16
Power / Delay off Button
16
Speed Selection Button
16
Lights Button
17
Display Indicators
17
Wiring Diagram
18
Component Locations
19
Component Replacement
20
Blower Removal
20
Damper Removal
23
Duct Cover Bracket Removal
24
Filter Removal
26
LED Strip Removal
27
Light Panel Removal
28
Main PCB Removal
29
