-28-
COMPONENT REPLACEMENT

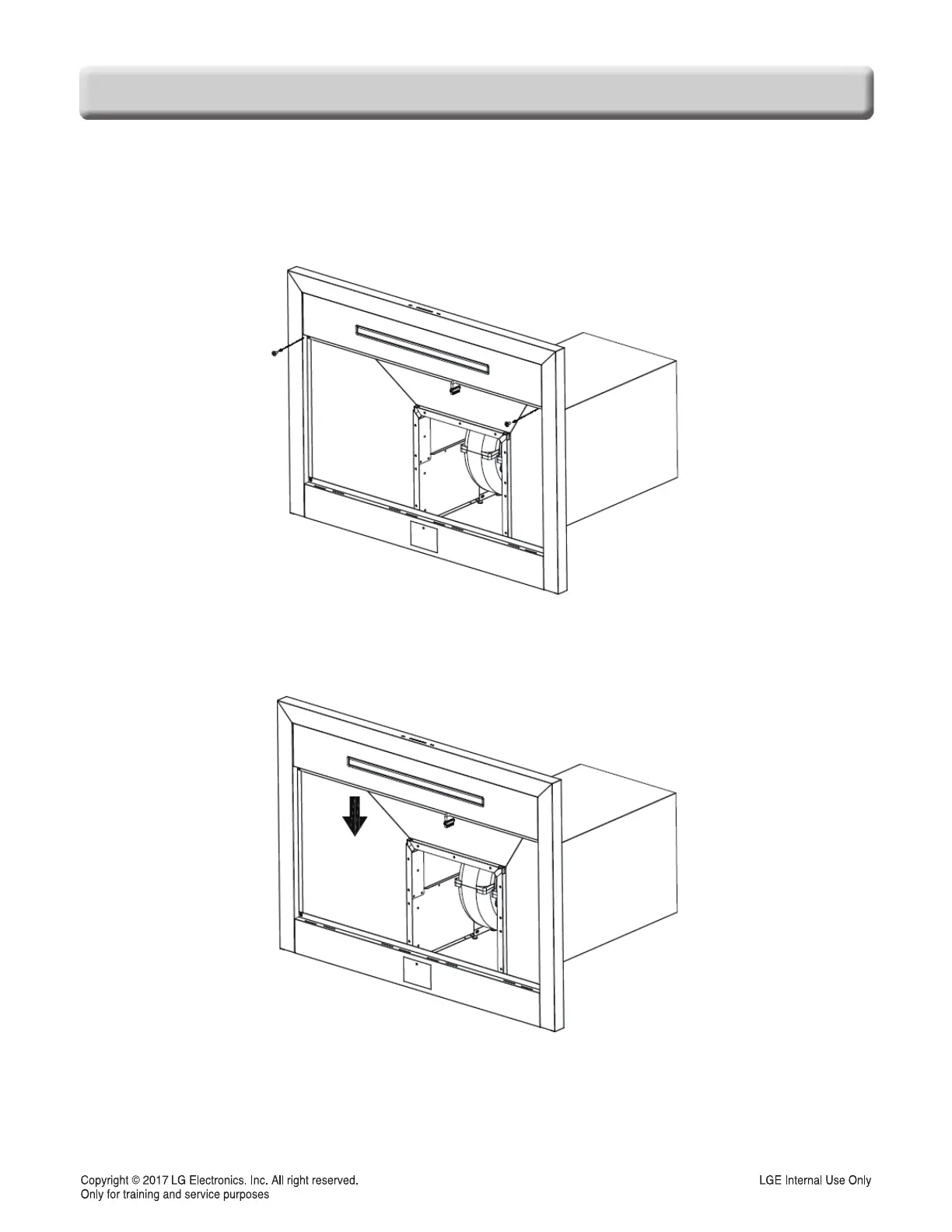

Step 1. Remove the mesh filters.
Step 2. Loose four screws for securing left side panel and right side panel. (Only for DC9700BL, two screws
for each side.)
Step 3. Follow the below arrow direction to take out the light panel.
* Follow these steps in reverse to reassemble the part.
LIGHT PANEL REMOVAL
