Connecting22
Connecting
2
Optional equipment
connection

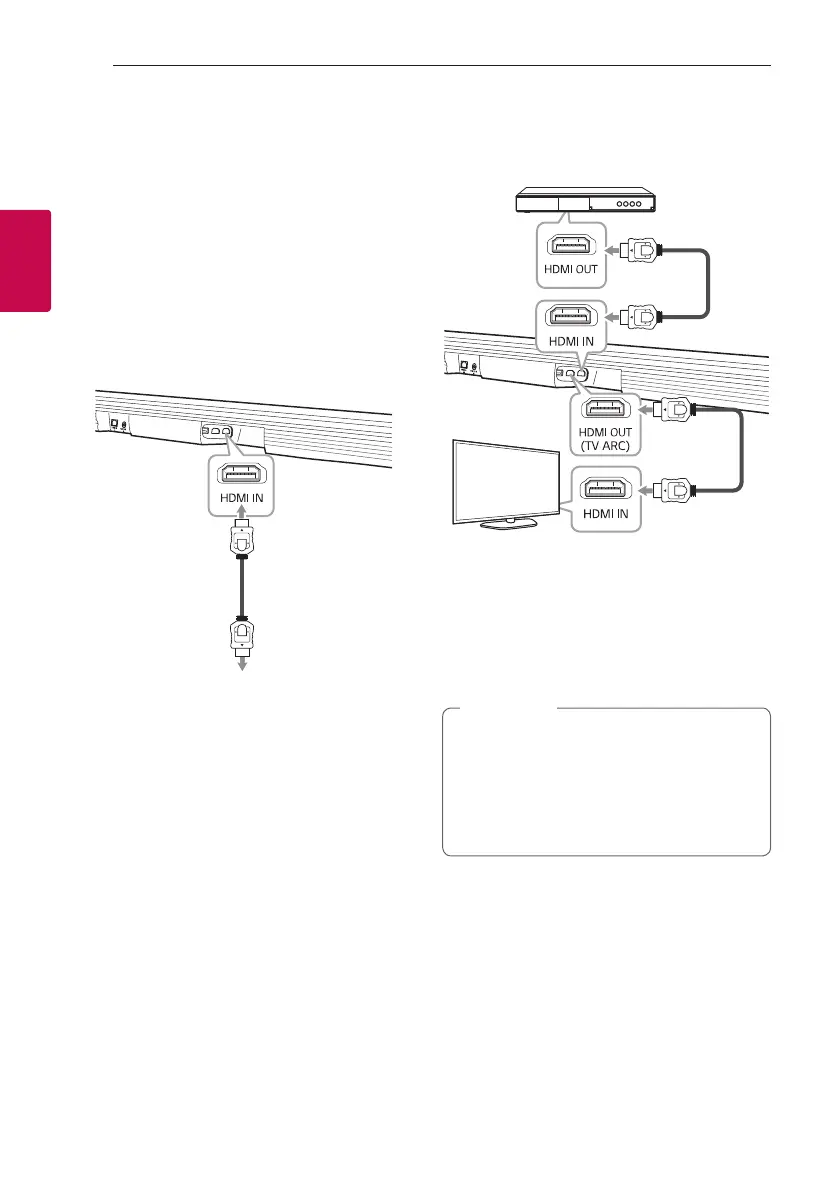

HDMI connection
You can enjoy the sound and picture from HDMI
connection on external device.
For enjoying sound only
You can enjoy the sound from the external device you
connect.
HDMI cable
To the Blu-ray disc player,
DVD player, etc.
1. Connect HDMI IN jack on the back of the unit to
HDMI OUT jack on the audio device such as Blu-
ray disc player, DVD player, etc.
2. Select the input source to HDMI IN by pressing F
button on the remote control or unit repeatedly.
For enjoying both sound and picture
You can enjoy both sound and picture from the
external device you connect.
HDMI
cable
HDMI
cable
1. Connect HDMI IN jack on the back of the unit to
HDMI OUT jack on the external device such as
Blu-ray disc player, DVD player, etc.
2. Connect HDMI OUT (TV ARC) jack on the back of
the unit to HDMI IN jack on the TV.
3. Select the input source to HDMI IN by pressing F
button on the remote control or unit repeatedly.
y
Audio and Video signal can't pass through
when this unit is turned off.
y
HDMI OUT (TV ARC) jack is for TV connection.
Even though multi channel is inputted to the
unit through an HDMI cable, the unit can only
output PCM 2 channel to TV.
,
Note
To Next Page
