51

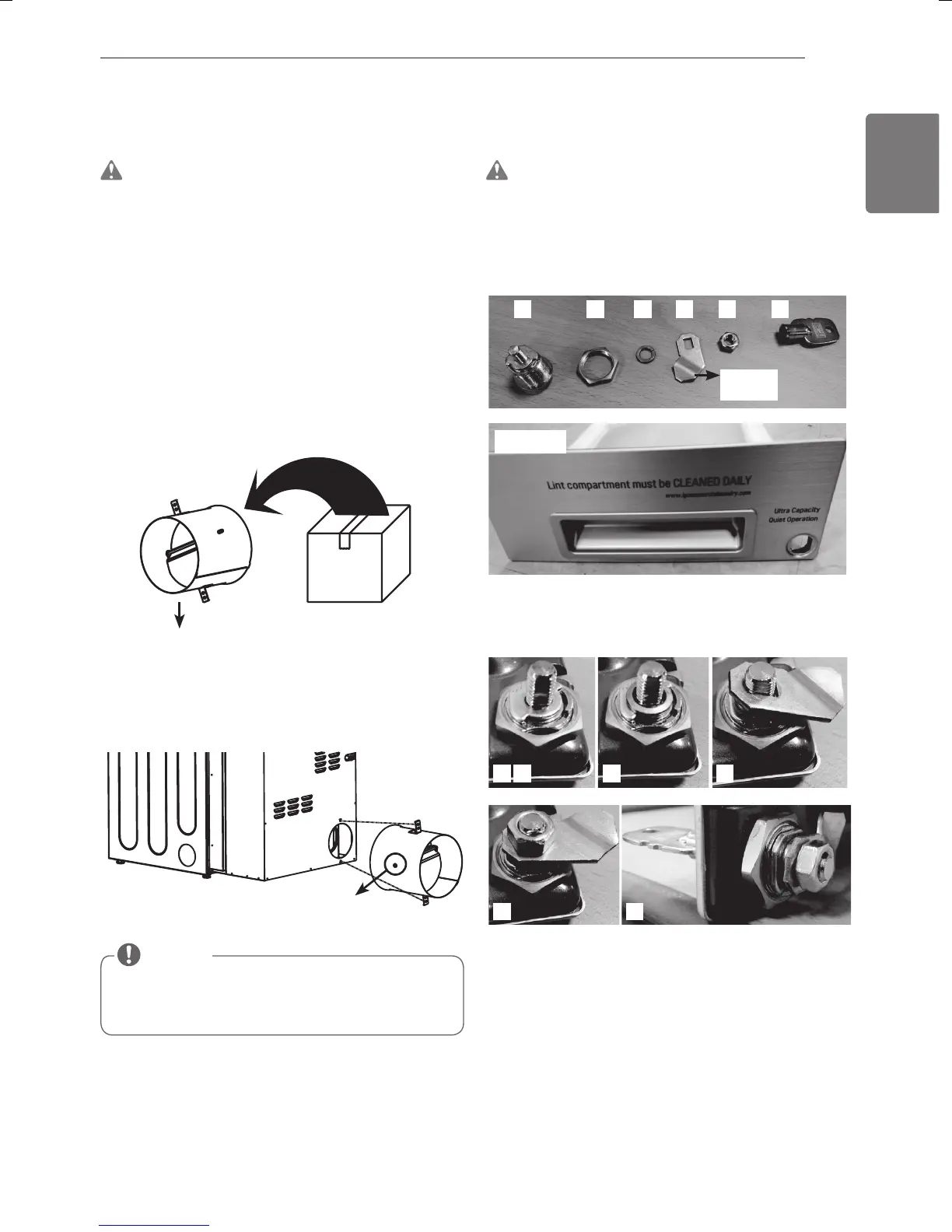

OUTLET DUCT INSTALLATION, SECURITY HOLDER INSTALLATION
OUTLET DUCT
INSTALLATION
SECURITY HOLDER
INSTALLATION
WARNING
Before performing this exhaust installation, be sure to
disconnect the dryer from its electrical supply.
Protect your hands and arms from sharp edges when
working inside the cabinet. Be sure to wear gloves.
To reduce the risk of personal injury, adhere to all
industry recommended safety procedures including the
use of long sleeved gloves and safety glasses.
Failure to follow all of the safety warning in this manual
could result in property damage, personal injury or
death.
1. Outlet duct is in accessory box.
The box is in drum.
2. Assemble the outlet duct with 2 screws.
Screws is in deco sheet bag.
WARNING
Protect your hands and arms from burr when working.
Be sure to wear gloves.
1. The security holder is in accessory assembly.
The accessory assembly is in drum
2. Assemble security holder in lint filter as below picture.
Note the assembly step.
When assembling the duct, be cautious in duct’s
direction. Screw head should be on the left side of the
duct.
NOTE
Oulet duct
Screw head
1 2 3 4 5 6
Security
holder
Lint filter
1
5 6
2 3 4
MFL67863709_en_170328.indd 51 2017-03-28 �� 9:54:50
