LG V280 User Manual

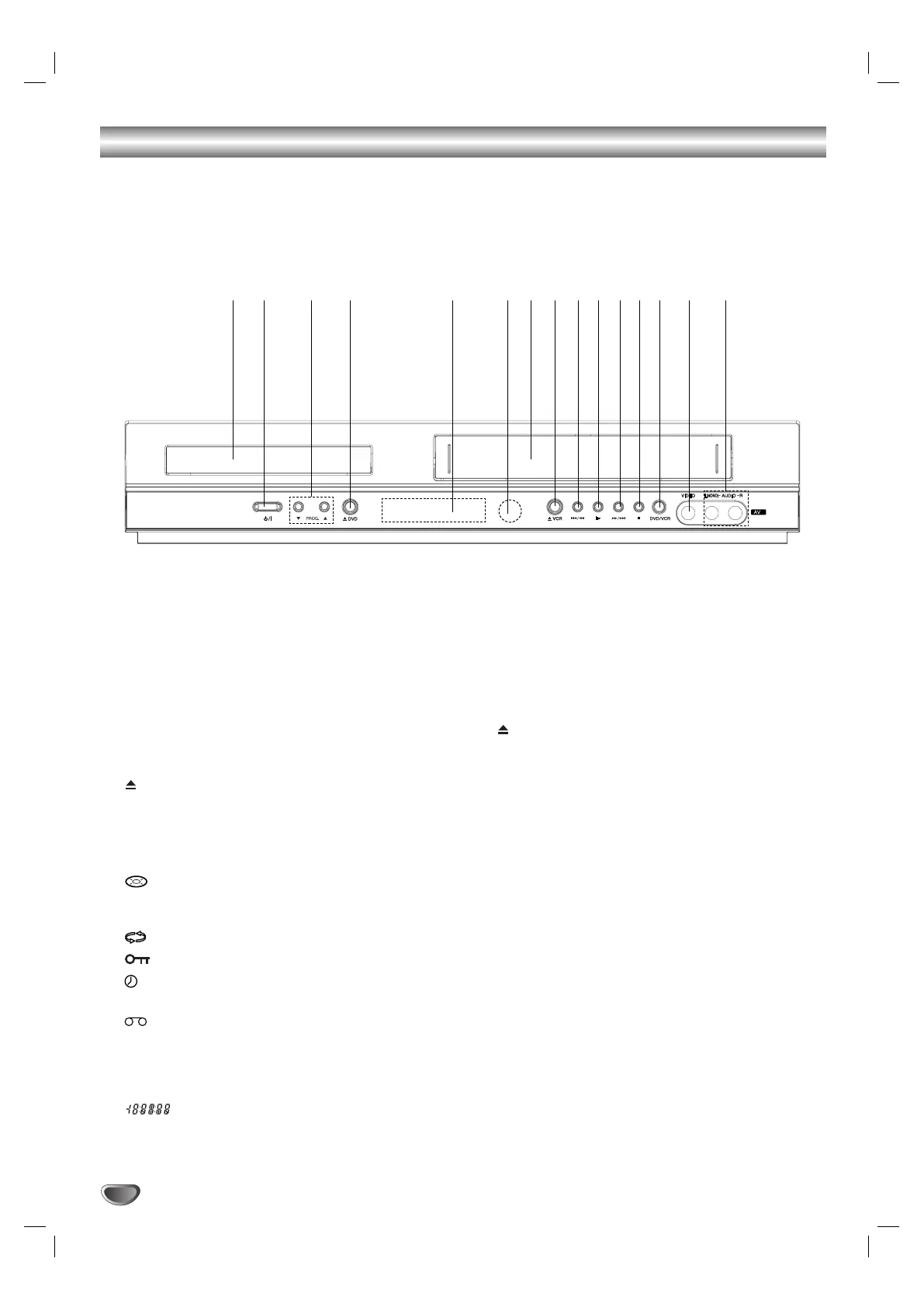

Front Panel
6
1. Disc Tray
Insert a disc here.
2.
11//
I
Switches the unit to ON or OFF.
3. PROG. (V/v)
Channel Programme Selectors .
4. DVD
Opens or closes the disc tray.
5. Display window
Shows the current status of the unit.
DVD: DVD deck is selected.
:
A disc is loaded in the DVD deck.
[P]: Indicates the Progressive Scan is set to On
mode.
:
Indicates repeat mode.
:
Child Lock is engaged.
:
DVD+VCR is in timer recording or a timer
recording is programmed.
:
A Cassette is in the VCR deck.
VCR: VCR deck is selected.
REC:
VCR recording is engaged.
DVD to Video tape copy is in progress.
TV: Indicates TV mode. (See Notes on page 20.)
: Indicates total playing time/elapsed
time/current time.
6. Remote Sensor
Point the remote control here.
7. Tape Compartment.
8. VCR
Tape Eject.
9.
..//mm
Go to beginning of current chapter/track or to
PREVIOUS chapter/track.
Press and hold for two seconds for a fast reverse
search. Rewinds the tape.
10.
NN
Starts playback.
11.
MM//>>
Go to NEXT chapter/track.
Press and hold for two seconds for a fast forward
search. Winds the tape forwards.
12.
xx
Stops playback.
13. DVD/VCR
DVD/VCR Selector.
14. Video IN Jack
15.
Audio IN (L/R) Jacks
3
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

LG V280 Specifications

General

power requirements	AC 200-240V, 50/60 Hz
power consumption	17W
operating temperature	5˚C to 35˚C (41˚F to 95˚F)
operating humidity	5 % to 90 %
laser wavelength	650 nm
frequency response (DVD PCM 96 kHz)	8 Hz to 44 kHz
frequency response (DVD PCM 48 kHz)	8 Hz to 22 kHz
frequency response (CD)	8 Hz to 20 kHz
signal-to-noise ratio	More than 100dB
harmonic distortion	Less than 0.008%
dynamic range (DVD)	More than 100 dB
dynamic range (CD)	More than 95 dB
audio input (VCR SCART)	-6.0dBm, more than 10 kohms
audio input (VCR RCA)	-6.0dBm, more than 47 kohms
video input (VCR SCART/RCA)	1.0 Vp-p, 75 ohms
video output (DVD)	1 Vp-p 75 ohms, sync negative
component video output (Y)	1.0 V (p-p), 75 Ω
component video output (Pb/Pr)	0.7 V (p-p), 75 Ω
RGB output (DVD)	0.7 Vp-p, 75 ohms
audio output (coaxial audio DVD)	0.5 V (p-p), 75 Ω
audio output (analog audio DVD)	2.0 Vrms (1 KHz, 0 dB), 600 Ω
audio output (VCR SCART)	-6.0dBm, less than 1 kohms
video output (VCR SCART)	1.0Vp-p, 75 ohms
RGB output (VCR)	0.7 Vp-p, 75 ohms

Weight and Dimensions

dimensions	430 x 78.5 x 265 mm (W x H x D)
mass	4.2 kg
