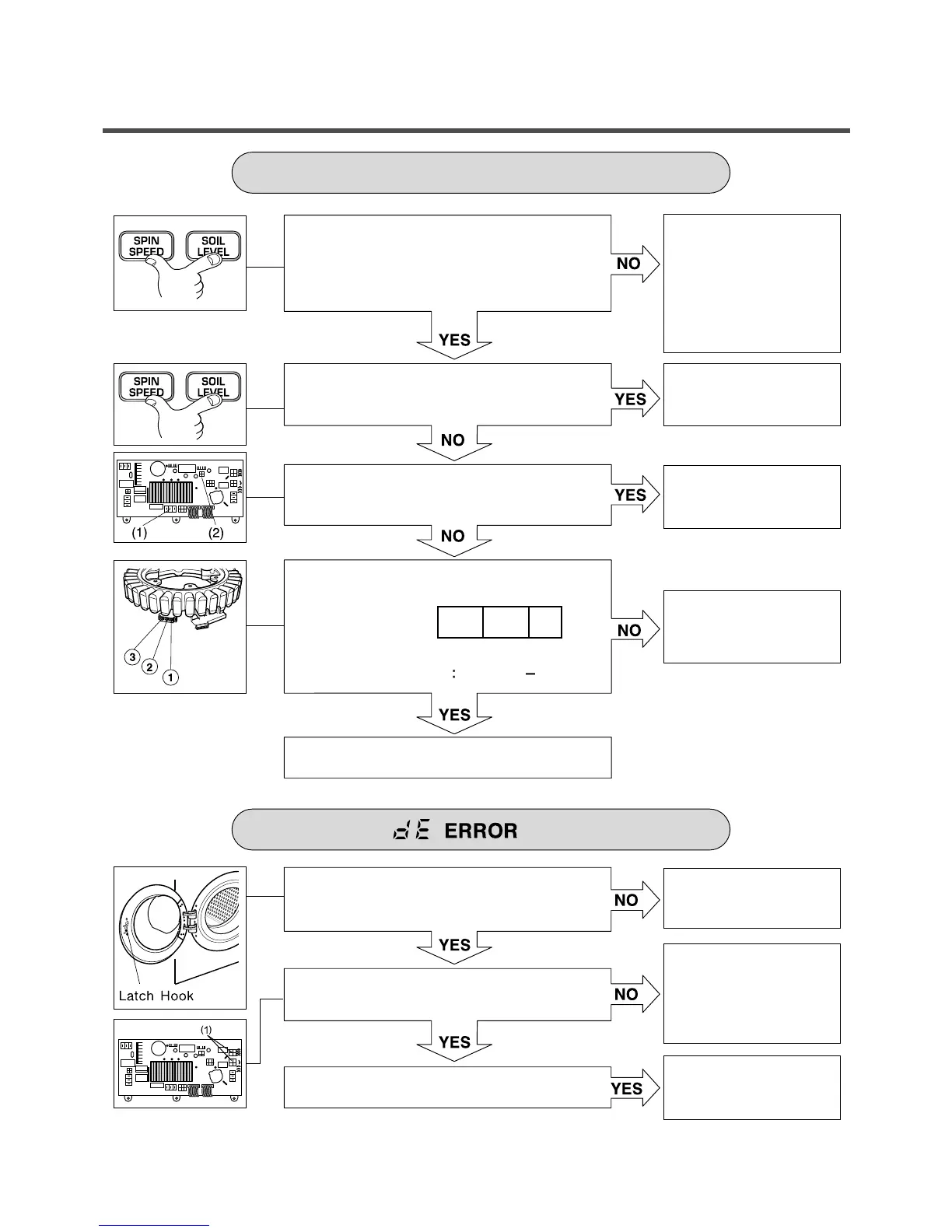

SPIN TROUBLE
Check the SENSOR SWITCH
ASSEMBLY or HOSE (Pressure).
If the problem is on the
SENSOR
SWITCH ASSEMBLY or the
HOSE, replace the SENSOR
SWITCH ASSEMBLY or the
HOSE.
Normal
Correct the connection.
Replace the STATOR
ASSEMBLY
Check during spin if the frequency of the water
level is 248 or more.
Press the START / PAUSE button 2 times in QC
Test mode, is the drum spinning at low speed?
Is it disconnected, or disassembled?
[Red:3pin (1), NA:4pin (2)]
Check the motor connector, Is the resistance of
the terminal the same as the figure?
MOTOR TERMINAL
Resistance of terminal:
¥L-¥M/ ¥M-¥N/ ¥N-¥L About 5Ω 15Ω
Replace the MAIN PWB ASSEMBLY
Does the spring of Latch Hook actuate?
Is there clicking sound once or twice when the
START/PAUSE button is pressed to start the cycle?
Is DOOR SWITCH ASSEMBLY broken?
Replace Door Assembly.
Check the DOOR SWITCH
ASSEMBLY Connector and
MAIN PWB ASSEMBLY
(Red 4 pin and white 4 pin
connector (1)).
Replace the DOOR
SWITCH ASSEMBLY.
¥N ¥M ¥L
To Next Page
