1.

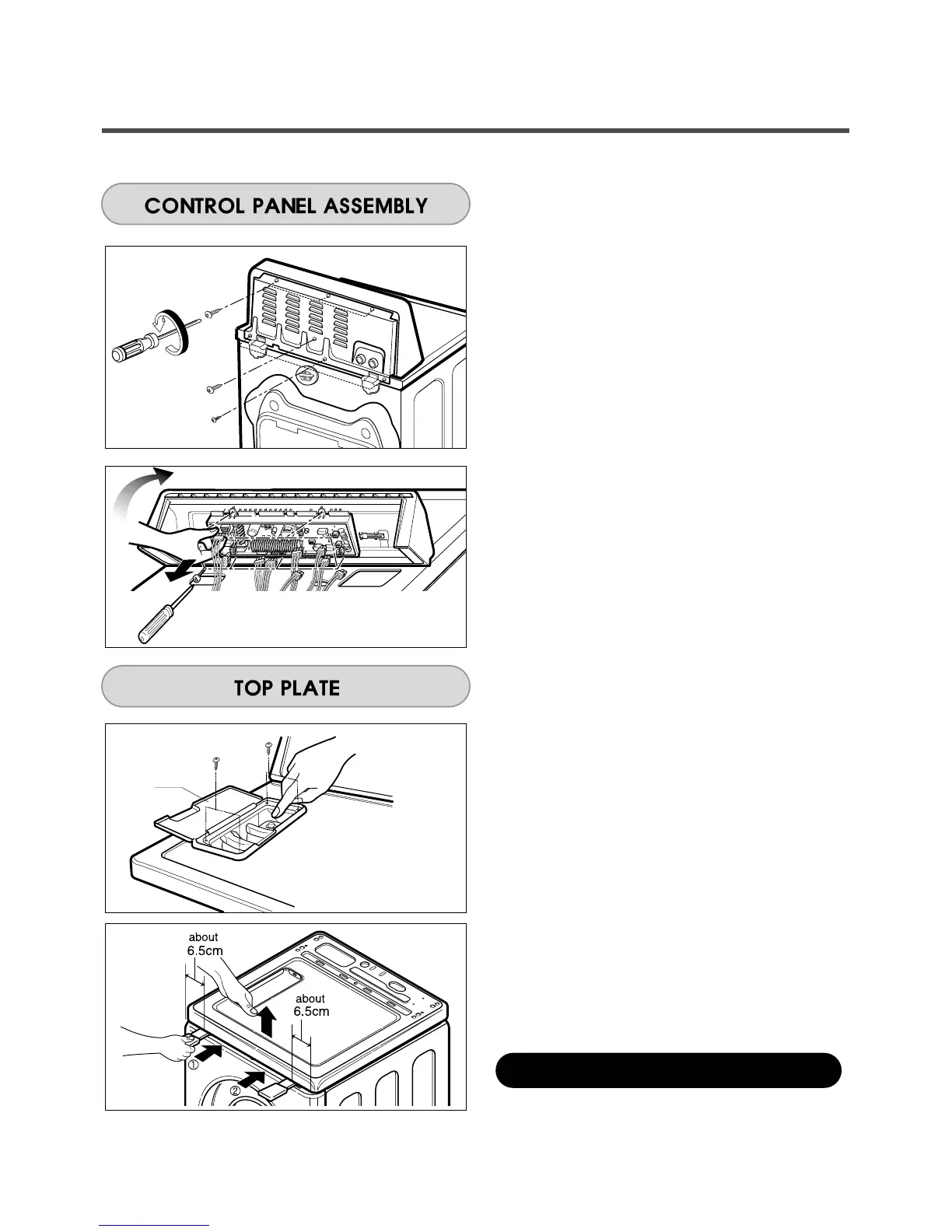

Unscrew 7 screws on the Rear Frame.
2.
Disassemble the Rear Frame.
3.
Pull the Control panel forward.
4.
Disconnect connectors.
5.
Unscrew 5 screws.
6.
Disassemble the controller assembly.
1.
Open the Lid.
2.
Unscrew 4 screws.
3.
Disassemble the Lid Assembly.
4.
Pull down the Dispenser by pushing hooks.
5.
Put a hand into the dispenser hole
and hold the top plate.
6.
Push backward using an opener
and lift the top plate.
9. DISASSEMBLY INSTRUCTIONS
ƒR
Disassemble and repair the unit only after pulling out power plug from the outlet.
