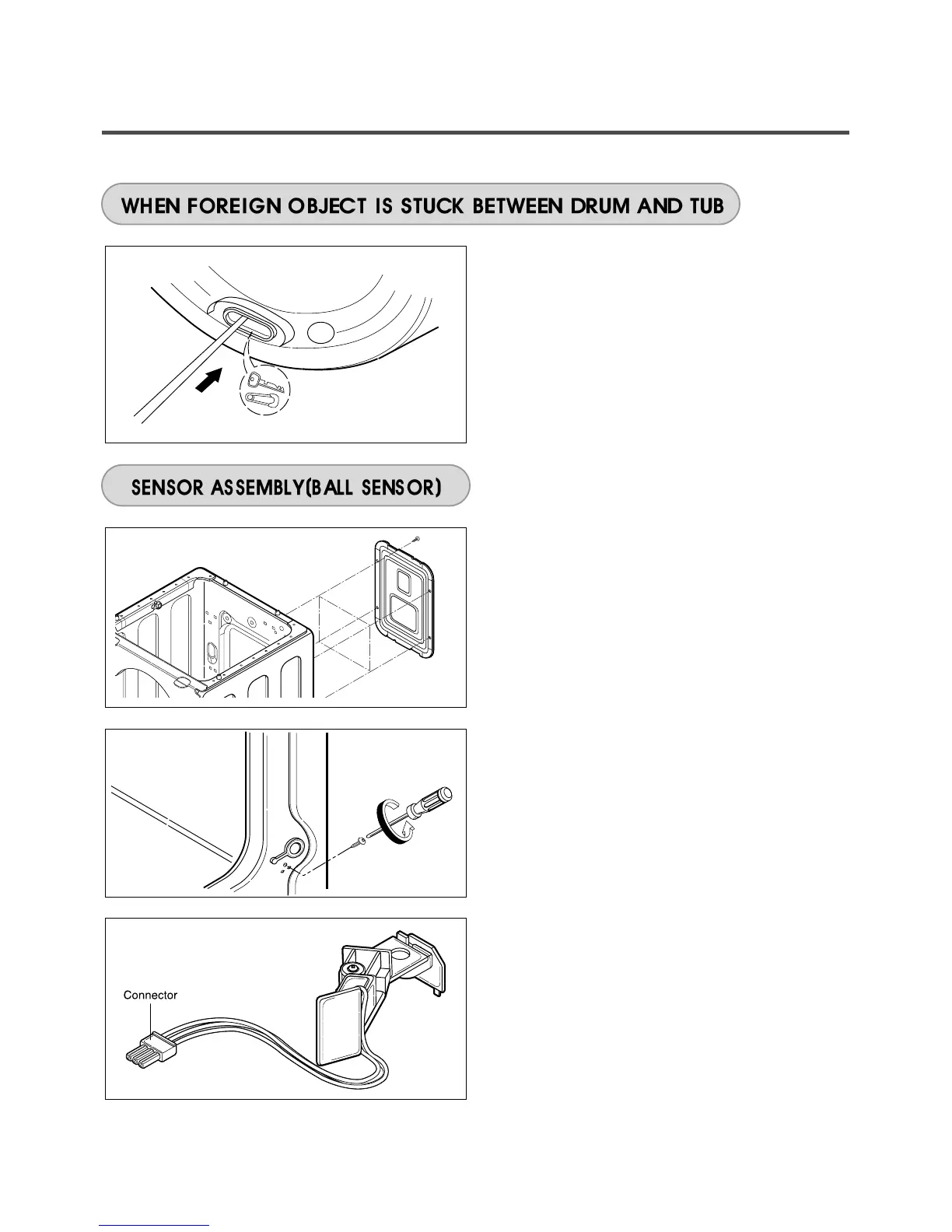

1.
Disassemble the cabinet cover
.
2.
Separate the heater from the tub.
3.
Remove any foreign objects (wire, coin, etc.) by
inserting a long bar in the opening.
1.
Unscrew the 4 screws from the back cover
.
2.
Unscrew the single screw from the lower-right
side of the cabinet.
3.
Disconnect the connector from PWB Harness.
38
40
Table of Contents
Default Chapter
3
Table of Contents
3
1 Specifications
4
2 Features & Technical Explanation
6
Fuzzy Logic Washing Time Optimization
7
Water Level Control
7
Door Control
7
3 Parts Identification
8
Machine View
8
Accessories
8
4 Installation
9
To Connect the Inlet Hose
10
To Connect the Drain Hose
10
To Connect Power Plug
10
Test Operation
11
5 Operation
12
Buttons and Displays Description
12
Controls and Displays Views
14
6 Wiring Diagram / Program Chart
16
Program Chart
19
7 Troubleshooting
20
Before Performing Service
20
QC Test Mode
20
How to Check the Water Level Frequency
20
Error Display
21
8 Error Diagnosis and Check List
23
Diagnosis and Solution for Abnormal Operation
23
Fault Diagnosis and Troubleshooting
26
No Power
26
No Water Supply
27
Detergent Does Not Flow in
27
Softener/Bleach Does Not Flow in
28
Abnormal Sound
28
Heating Without Water
29
Drain Malfunctions
29
Wash Heater Trouble
30
Heating Continuously above the Setting Water Temperature
30
Will Not Circulate Water
31
Spin Trouble
32
Error
32
9 Disassembly Instructions
33
Control Panel Assembly
33
Top Plate
33
Dispenser Assembly
34
Noise Filter
34
Cabinet Cover
35
Door Disassembly
37
Door Switch Assembly
37
Pump/Heater/Thermistor Disassembly
38
When Foreign Object Is Stuck between Drum and Tub
39
Sensor Assembly (Ball Sensor)
39
Motor/Damper Disassembly
40
Exploded Views
41
Cabinet and Control Panel Assembly Exploded View
41
Drum and Tub Assembly Exploded View
42
Dispenser Assembly Exploded View
43
