LG WM2501H Series User Manual

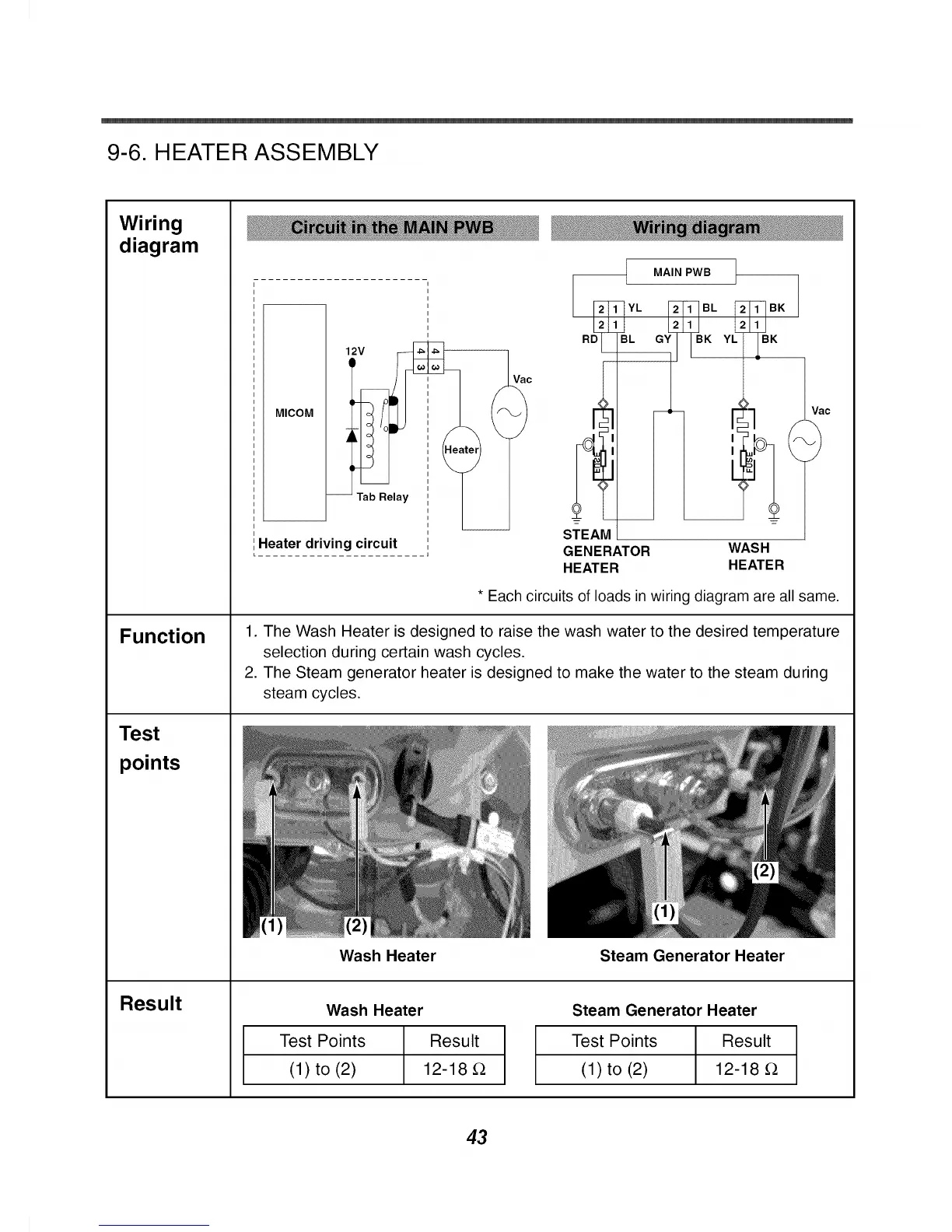

9-6. HEATER ASSEMBLY
Wiring
diagram
Function
Test
points
Result
MICOM
12V
Tab Relay
Heater driving circuit
L .......................
Vac
MAIN PWB
E_Ill _- F_] /F_ac
STEAM
GENERATOR WASH
HEATER HEATER
* Each circuits of loads in wiring diagram are all same.
1. The Wash Heater is designed to raise the wash water to the desired temperature
selection during certain wash cycles.
2. The Steam generator heater is designed to make the water to the steam during
steam cycles.
Wash Heater
Wash Heater
Test Points Result
(1) to (2) 12-18 _2
Steam Generator Heater
Steam Generator Heater
Test Points Result
(1) to (2) 12-18 _
43
