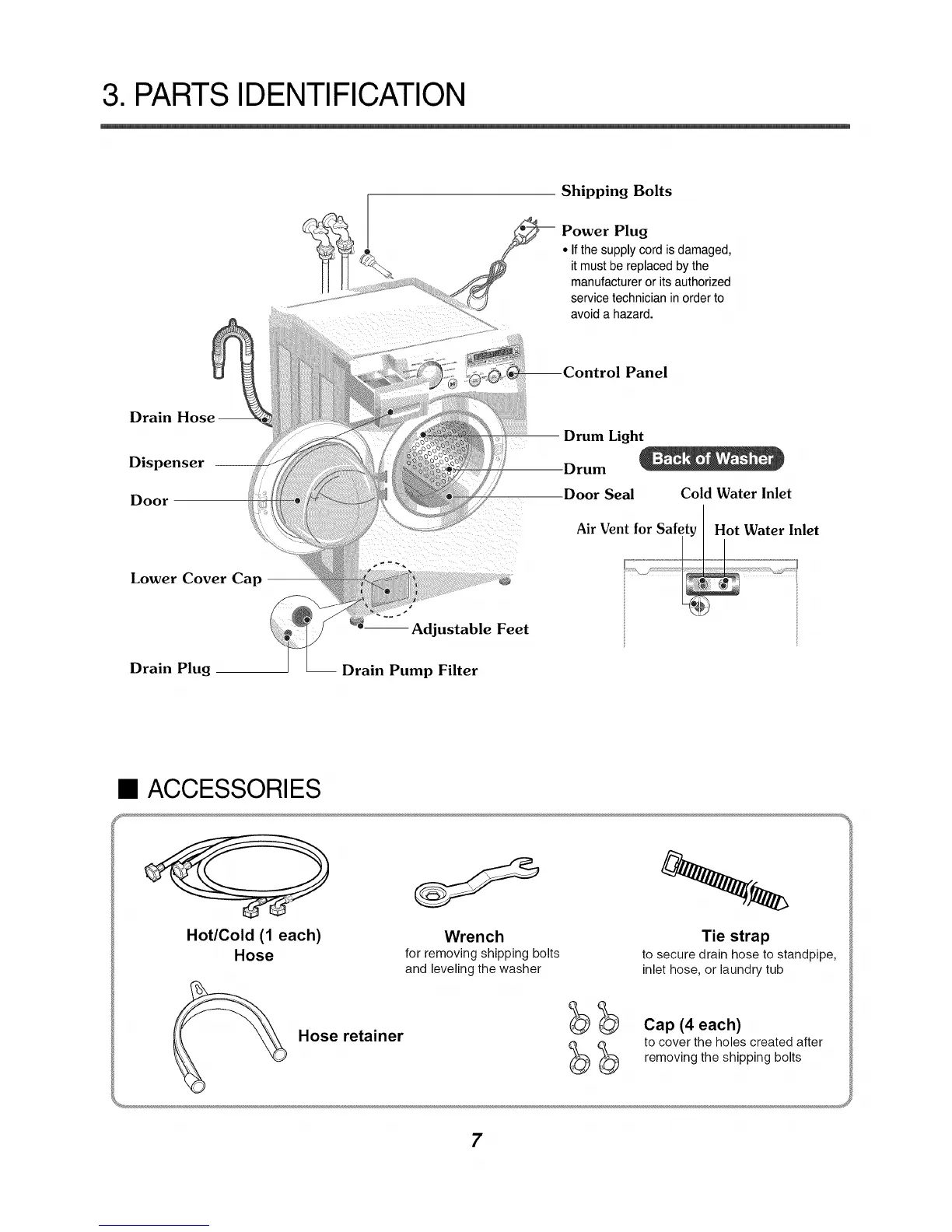

3. PARTS IDENTIFICATION
Shipping Bolts
Power Plug
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its authorized
service technician in order to
avoid a hazard.
Panel
Drain Hose-
Dispenser
Door
Lower Cover Cap
-- Adjustable Feet
Drum Light
---Drum
.Door Seal
Cold Water Inlet
Air Vent for Safety Hot Water Inlet
Drain Plug
-- Drain Pump Filter
I ACCESSORIES
Hot/Cold (1 each)
Hose
Hose retainer
Wrench
for removing shipping bolts
and leveling the washer
Tie strap
to secure drain hose to standpipe,
inlet hose, or laundry tub
Cap (4 each)
to cover the holes created after
removing the shipping bolts
7
