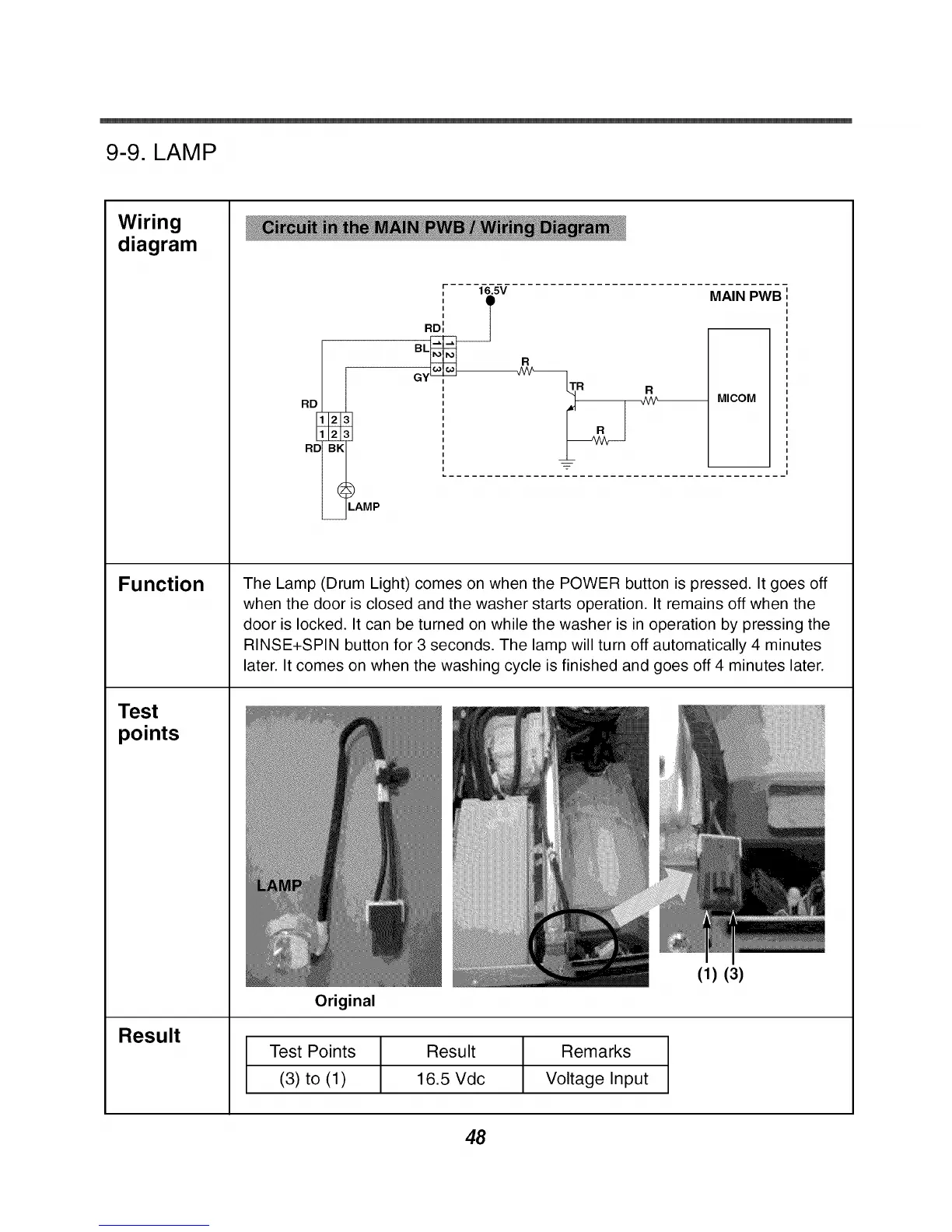

9-9. LAMP
Wiring
diagram
Function
Test
points
Result
RD
RDi
I
I
I
RD',
BL
LAMP
16.5V
MAIN PWB
R
R
MICOM
The Lamp (Drum Light) comes on when the POWER button is pressed. It goes off
when the door is closed and the washer starts operation. It remains off when the
door is locked. It can be turned on while the washer is in operation by pressing the
RINSE+SPIN button for 3 seconds. The lamp will turn off automatically 4 minutes
later. It comes on when the washing cycle is finished and goes off 4 minutes later.
Original
(1) (3)
Test Points Result Remarks
(3) to (1) 16.5 Vdc Voltage Input
48
