33

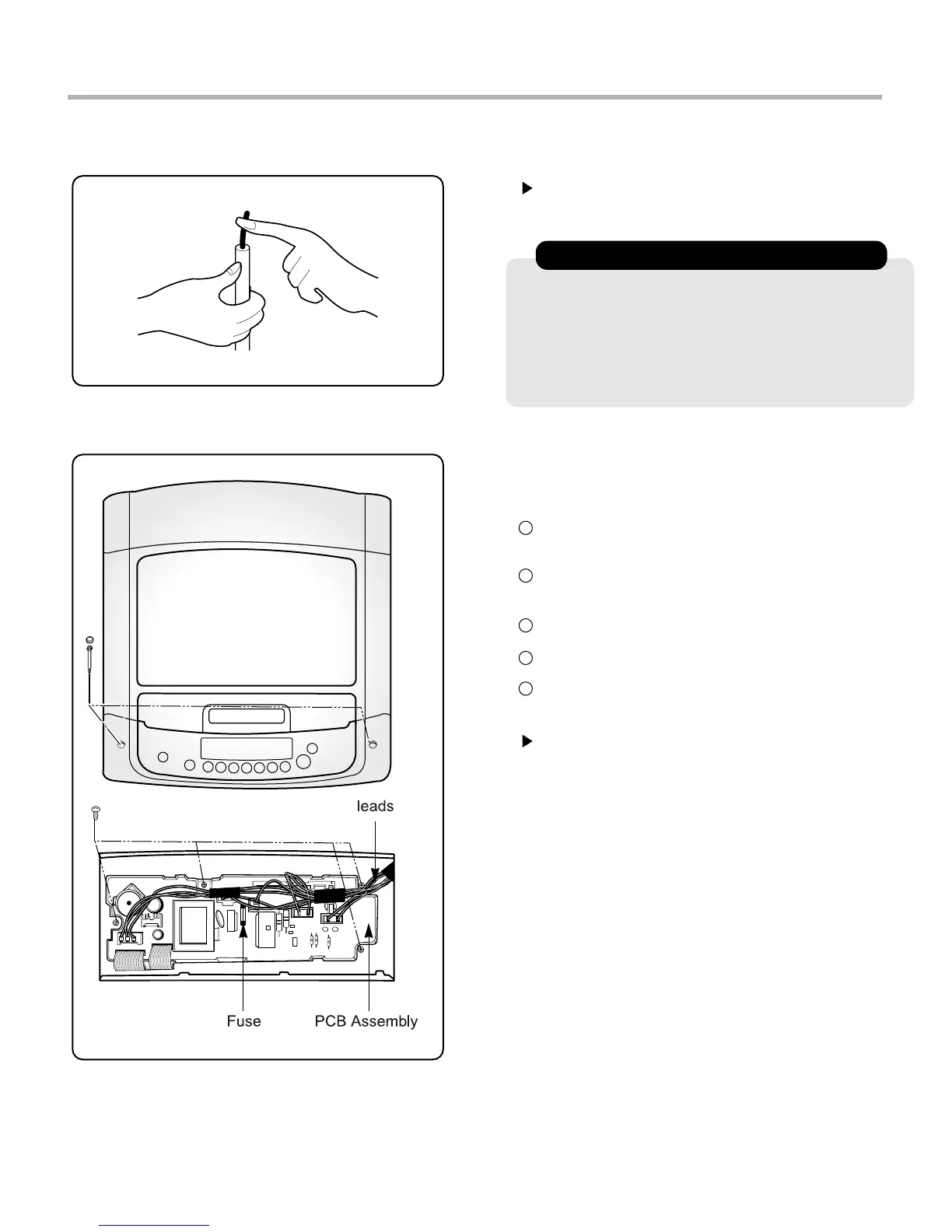

4-5. DISASSEMBLY INSTRUCTION
1) Disassembly of Front Panel
& PCB Assembly
Be sure to unplug the power to repair and
replace electric parts.
Fuse is located in the PCB assembly For fuse
replacement use the following rated fuse
* Rating of fuse
- 250V 6A fusing type for 220-240V product
- 125V 12A fusing type for 100-127V product
Remove two screw caps using a sharp tool
and two front panel fixing screws.
Be sure to make earth connection for trouble
diagnosis and parts replacement. If impossible,
touch earth wire on the body to remove electric
deviation between the body and product before
work.
CAUTION FOR ELECTROSTATICS
1
Push the front panel to the left side then
pull it out.
2
Disconnect the leads from the controller.
3
Remove 4 screw from the front panel.
4
Remove the PCB Assembly.
5
To Next Page
