(5) How to use Jig
(6) How to check sensing results
Initial operation: Press "RESERVATION" + "START/PAUSE" botton together after power on, and press
"RESERVATION" button only again
(displaying the number of pressing button and each data every 0.5 second)

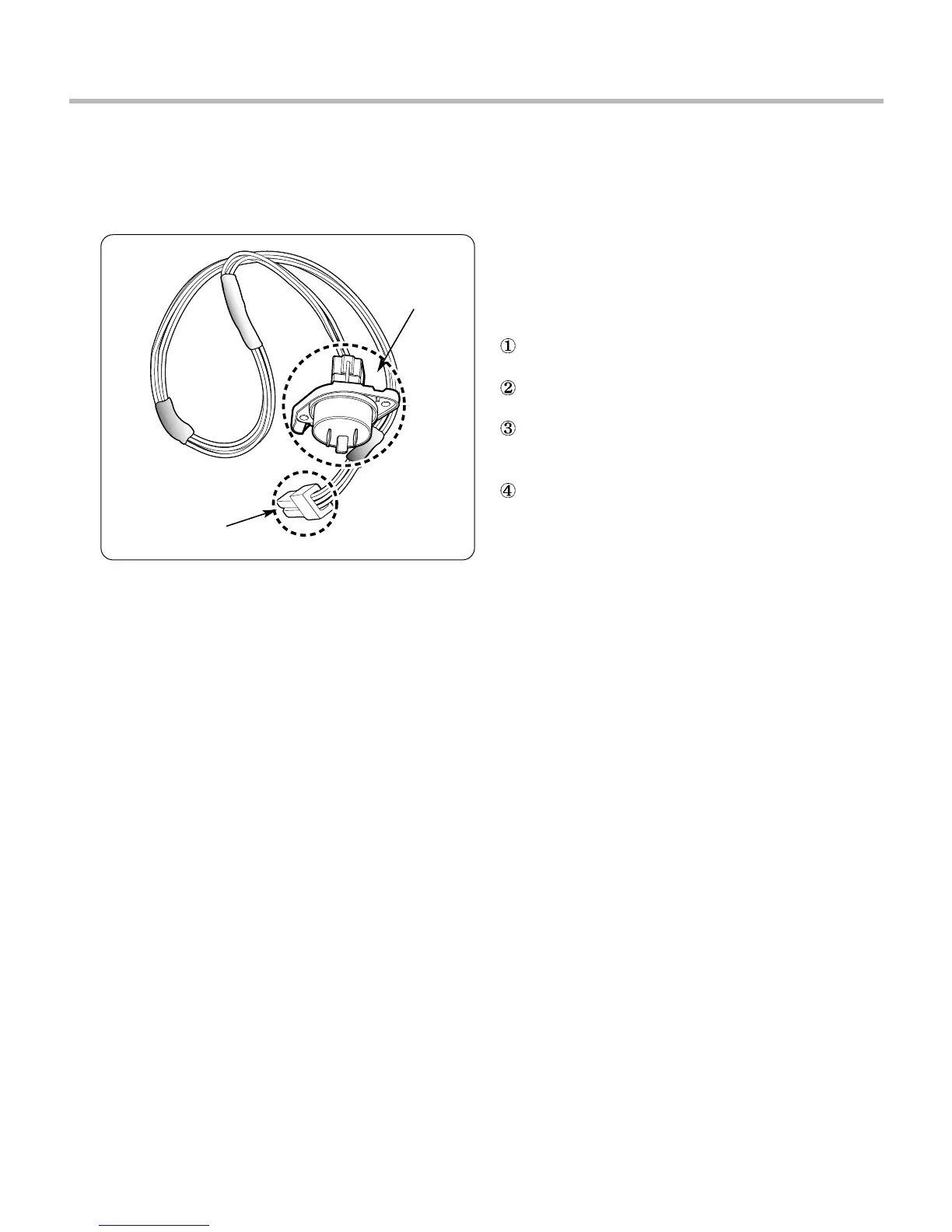

< Fig1 >
Sensor
Terminal
of Controller
How to Connect
• Loosening the front panel of the washing machine
and connect the sensor connecting terminal with
the terminal of the jig.
After supplying water to the washing bath, agitate
for one minute before using the jig.
Record the sensed value of the sensor attached
to the current product at Test mode.
Connect the jig, put the jig sensor into the
washing bath, and record the sensed value of the
sensor.
Determine the sensor performance by comparing
the value measured by the jig and the value
measured by the sensor attached to the product.
1 times : TR Controller Group ( 1 ~ 26 )
2 times : Check the temperature sensor codition
0 : Normal
99 : Temperature senosr’s error,
(Stop sensing for Temperature and Hardness)
3 times : Temperature of supplied water
4 times : Increment/decrement of washing time according to temperature
5 times : Washing stream at Motor off according to temperature
6 times : The number of comparing the conductivity of washing with rinsing conductvity
0 ~ 9 : Normal
99 : Abnormal (Stop the sensing of Hardness)
7 times : Sensored result (0 ~ FF: hexadecimal is displayed)
.
.
.
18 times: Initial stage
