Chapter 9 Optional Parts
102
9.2 Battery cabinet
9.2.1 External Dimensions
The UPS system has two kinds of battery cabinets that are UF-B0100-30 and UF-
B0065-30 respectively. The External Dimensions are given in Fig. 9-1 and Fig. 9-2
respectively. The structural parameters are given in Table 9-3.
Table 9-2 structural parameters
Name
Height
(mm)
Width
(mm)
Depth
(mm)
Size when
opening front
door(mm)
Angle of opened
door(degree)
Ventilation
channel
(mm)
Weight
(kg)
Weight(including
battery (kg)
UF-B0065-30
1400 850 800 620
150
°
500 150 850
UF-B0100-30
1800 1000 800 660
150
°
500 150 1350
Select the support rack and floor with proper bearing ability because the battery
cabinet is rather heavy after being filled with batteries.

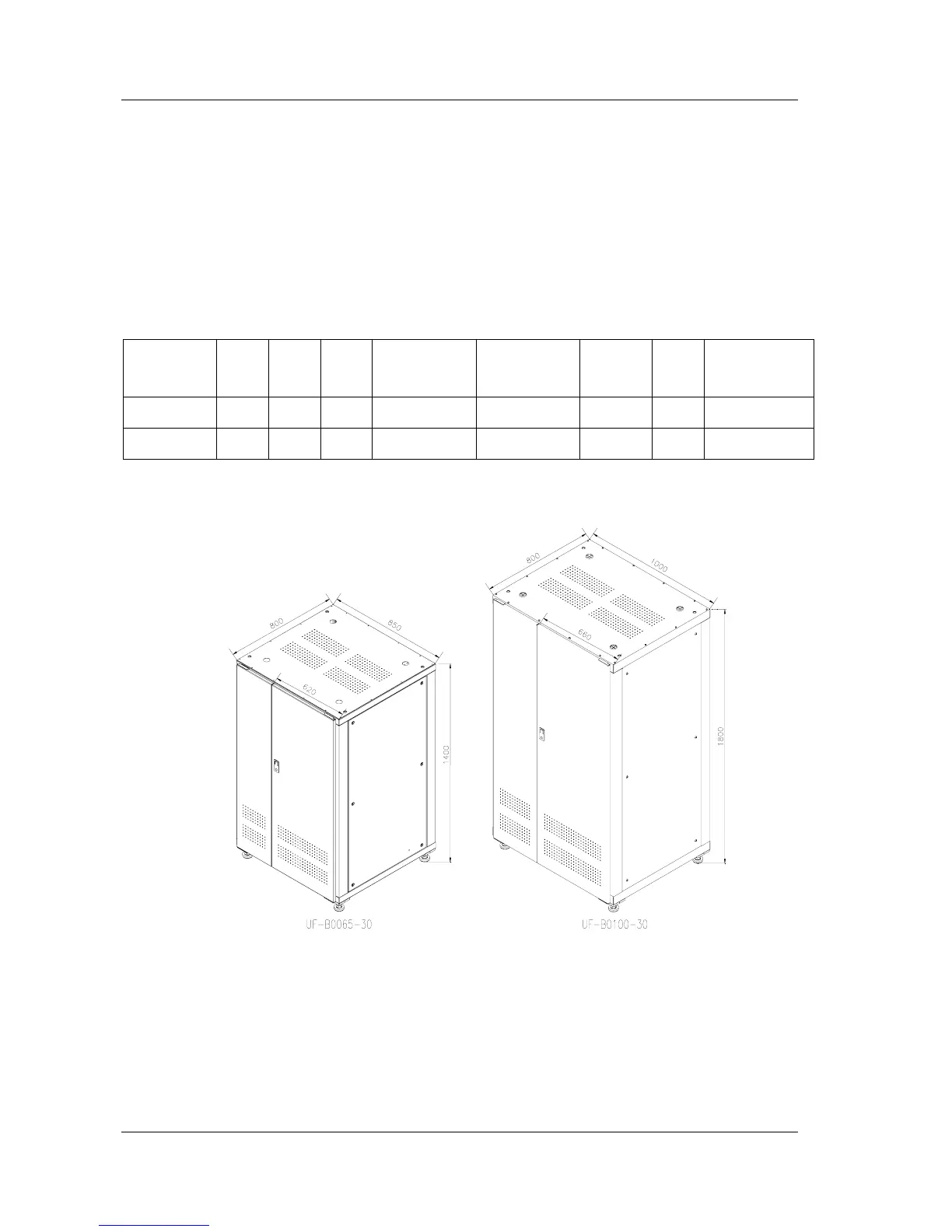

Fig. 9-1 Outline of battery cabinet
