Linear SWC User Manual

SWR • SWC • SWD Swing Gate Operator Installation Guide - 20 - 227965 Revision X22 8-11-2011

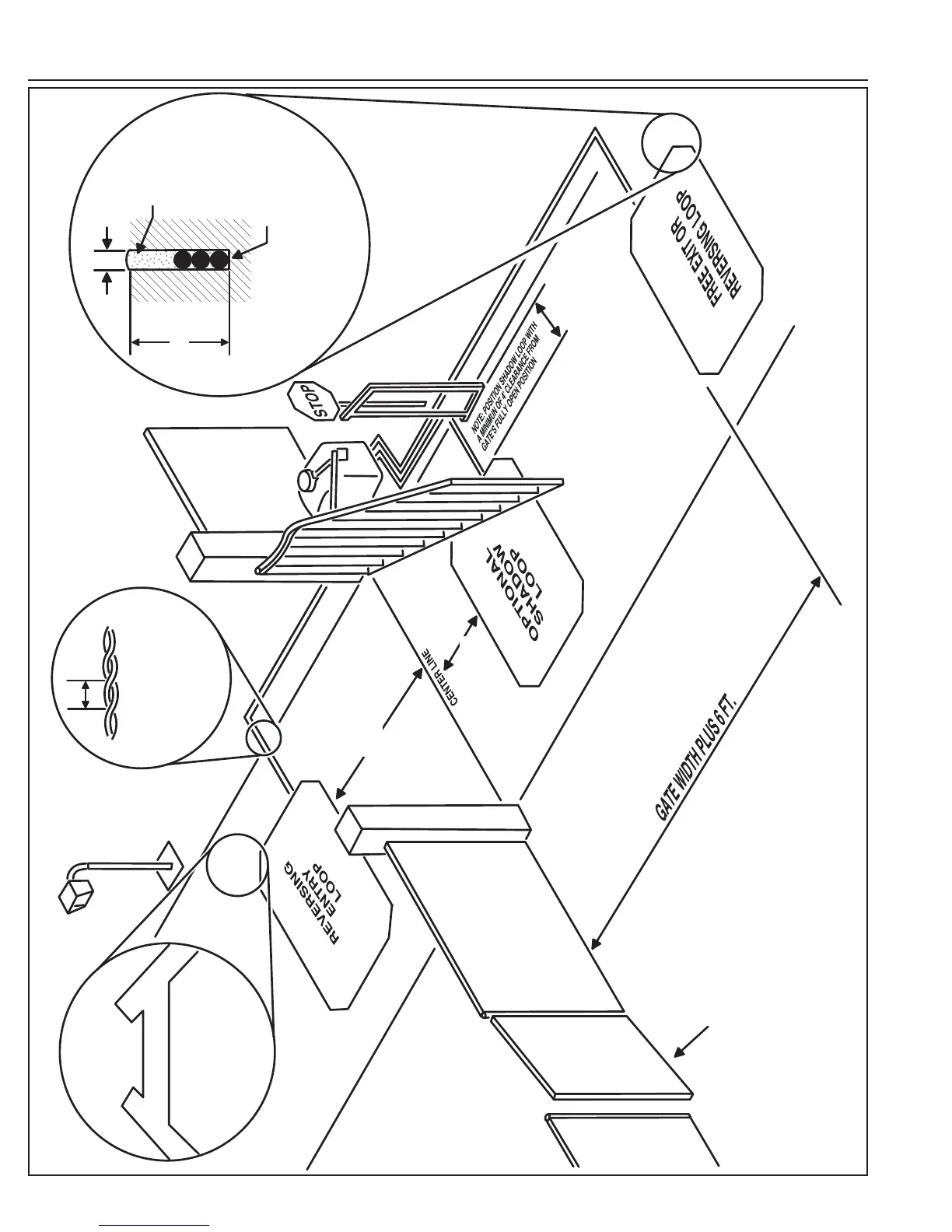

Loop Layout Illustration
2"
3/8"
4 FT. MIN
USE RELIEF CUTS
AT CORNERS
TWIST WIRE FROM END OF
LOOPS BACK TO OPERATOR
AT LEAST SIX TIMES PER
FOOT
2" MAX.
LOOP SEALANT
MULTIPLE TURNS
REFER TO LOOP
INSTALLATION NOTES
FOR DETAILS
OPEN
GATE
PARTIALLY
SHOWN
NOTE: POSITION SHADOW LOOP APPROXIMATELY HALF WAY
BETWEEN ENTRY AND EXIT REVERSING LOOPS. THE DISTANCE
BETWEEN THE SHADOW LOOP AND EXIT/REVERSING LOOPS
SHOULD NEVER EXCEED THE LENGTH OF THE SHORTEST
VEHICLE TYPE WHICH IS EXPECTED TO USE THIS GATE.
WALL PARTIALLY
SHOWN FOR CLARITY
SEPARATE PEDESTRIAN GATE REQUIRED
7 FT. MINIMUM DISTANCE AWAY FROM GATE
6 FT.

Linear SWC Specifications

General

Brand	Linear
Model	SWC
Category	Gate Opener
Language	English
