Linear SWC User Manual

SWR • SWC • SWD Swing Gate Operator Installation Guide - 26 - 227965 Revision X22 8-11-2011

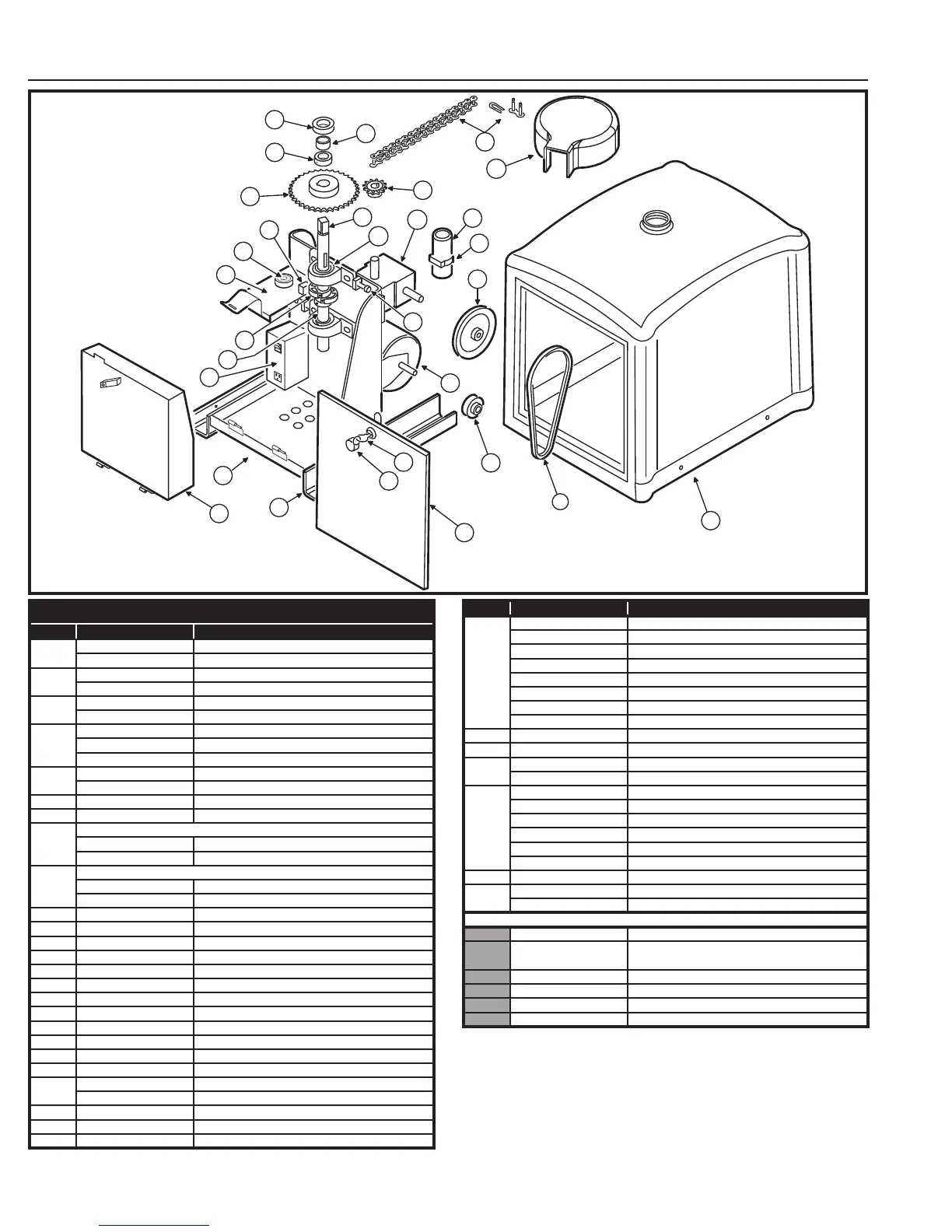

Model SWR Exploded View
3A
3B
26
25
4
20
22
17
23
15
13A
13C
13B
12
3
8
9
7
5
11
7A
7B
10
14
13
2
16
1
19
18
MODEL SWR MECHANICAL PARTS LIST
REF. # PART # DESCRIPTION
1
2300-925-BEIGE Operator Cover, Tan
2300-925-BLACK Operator Cover, Black
2
2300-926-BEIGE Rain Cap, Tan
2300-926-BLACK Rain Cap, Black
3
2100-2030-BEIGE Access Door, Tan (no lock or reset button)
2100-2030-BT Access Door, Black (no lock or reset button)
3A
2510-354 Plunger Reset Assembly
2500-2240 Plunger Reset Button
2500-2241 Plunger Extension Only
3B
2200-790 Lock for Cover, with Keys
2200-824 Extra Keys
4 2110-785 Frame Assembly
5 2400-509 Socket Head Cap Screw, 3/8-16 x 1-1/2”
7
MOTORS
2510-274 Motor Assembly, 1/2 HP, 115 VAC, with Harness
2510-275 Motor Assembly, 1/2 HP, 230 VAC, with Harness
7A
CAPACITORS
2500-261 Capacitor for 115 VAC
2500-552 Capacitor for 230 VAC
7B 2200-872 Capacitor Clamp
8 2200-132 Pulley, 2”, 5/8” bore
9 2200-208 V-belt, 4L, 26”
10 2200-926 Gear Reducer, 60:1
11 2100-388 Pulley, 5”, 5/8” bore
12 2200-190 Sprocket, 40-B-12, 3/4” bore
13 2100-2020-PLT Drive Shaft
13A 2200-015 Shaft Collar, 1” diameter, 9/16 LTB
13B 2100-519-PLT Sleeve Spacer
13C 2200-016 Moisture Seal
14 2200-274 Pillow Block Bearing, 1” diameter
15 2200-376 Sprocket, 40-B-36, 1” bore
16
2200-673 #40 Chain, 21 Links
2200-006 #40 Master Link
17 2100-1748 Limit Cam
18 2200-015 Shaft Collar, 1” diameter, 9/16 LTB
19 2500-2347 Limit Switch
REF. # PART # DESCRIPTION
20
2510-422 115 VAC Power Box Assembly
2510-430 230 VAC Power Box Assembly
2500-2411 Power Switch Only, 115 VAC and 230 VAC
2500-2413 Power Outlet (only available on 115 VAC Models)
2500-212 115 VAC - 24 VAC Power Transformer
2500-791 230 VAC - 24 VAC Power Transformer
2100-2113 Back Plate
2100-2112 Cover Plate
21 2100-2111 Controller Latch
22 2100-2108 Limit Switch Mounting Bracket
23
2100-2024 Accessory Mounting Shelf
2200-874-PLT Hinge, Male for Control Box
25
2500-2393 APeX Module
2500-2399 APeX DC Motor Module
2100-2104 APeX Mounting Plate
2300-1025 Plastic Cover Only
2510-423 Knob Kit
2510-420 Stop/Reset Switch and Bracket Assembly
26 2500-2435 Alarm
27
2510-427 115 VAC Wiring Harness Assembly (not shown)
2510-429 230 VAC Wiring Harness Assembly (not shown)
OPTIONAL PARTS
2120-483 Post Mounting Kit
2220-047
3” Torque Limiter with Bushing and 40-A-36
Sprocket
2200-591 Friction Disc pair for 3” Torque Limiter
2200-593 Bushing for 3” Torque Limiter
2200-281 Sprocket, 40-A-36, 1” Bore
2100-2041 Operator Base Plate
