3. The new side column assembly can now be installed. Remove the motor and re install the coupler.
(see 2-3 Motor replacement) This is easier to do before the column assembly is installed.

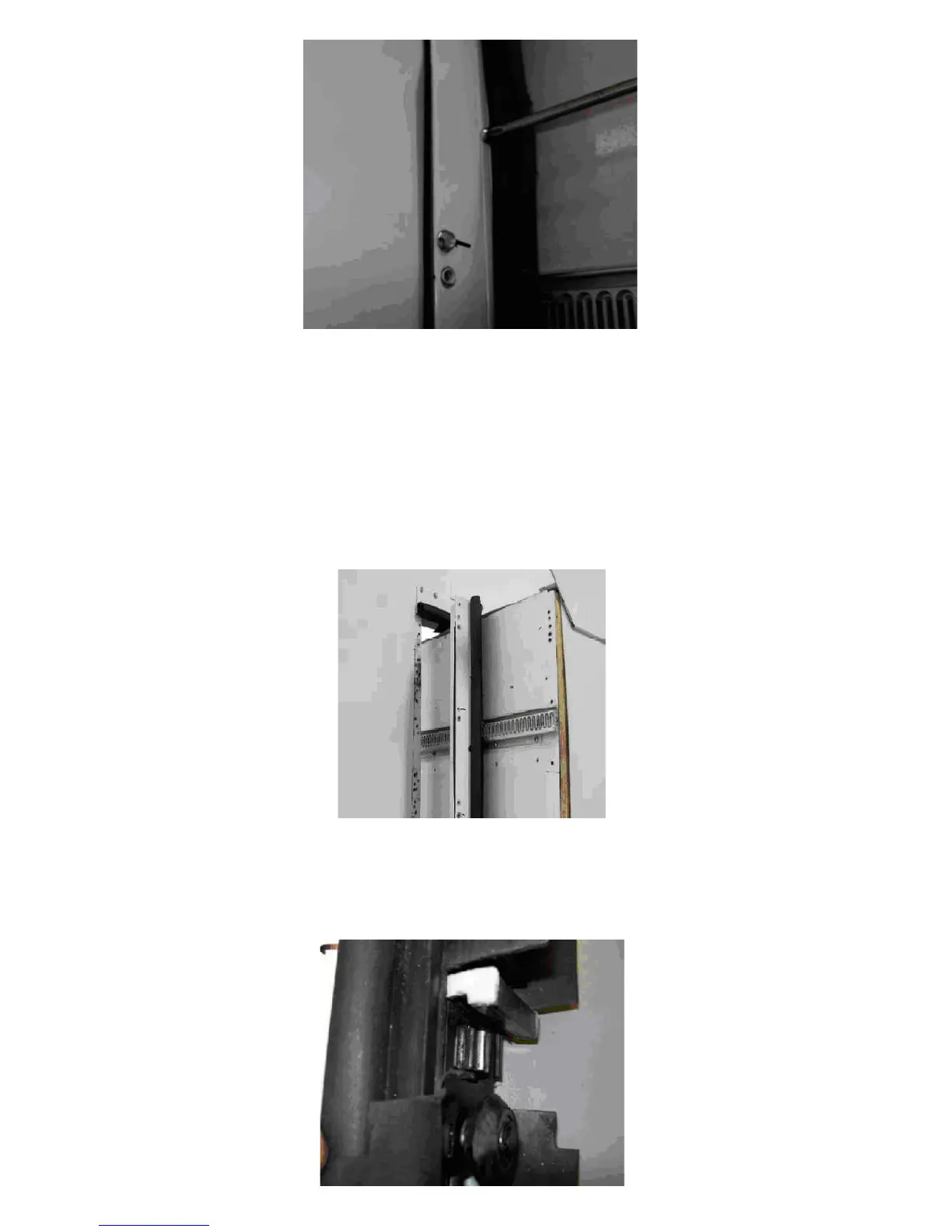

4. On the side of the column facing towards the room, there is a v-roller, a gear above the roller and
a hook, with a plastic shoe, above the gear.
13
11. Tuck the motor wires inside the side column. The column can be slid back along the racks,
and into the opening in the wall. There will be some resistance from the motor.
12.Withthesidecolumnmountingangepushedagainsttheoutsideofthewall,themounting 
screws can be replaced.
13. Plug the motor back in.
2-3 Slide mechanism replacement
1. Follow steps 1 through 4 for motor replacement.
2. With the motor disengaged, and the side column detached from the side wall, remove the
exterior T-molding. Slide the side column along the racks towards the outside, until the column
separates from the racks.
