Lippert Components 13398-C2 Troubleshooting Guide

Rev: 01.30.2015
Page 10

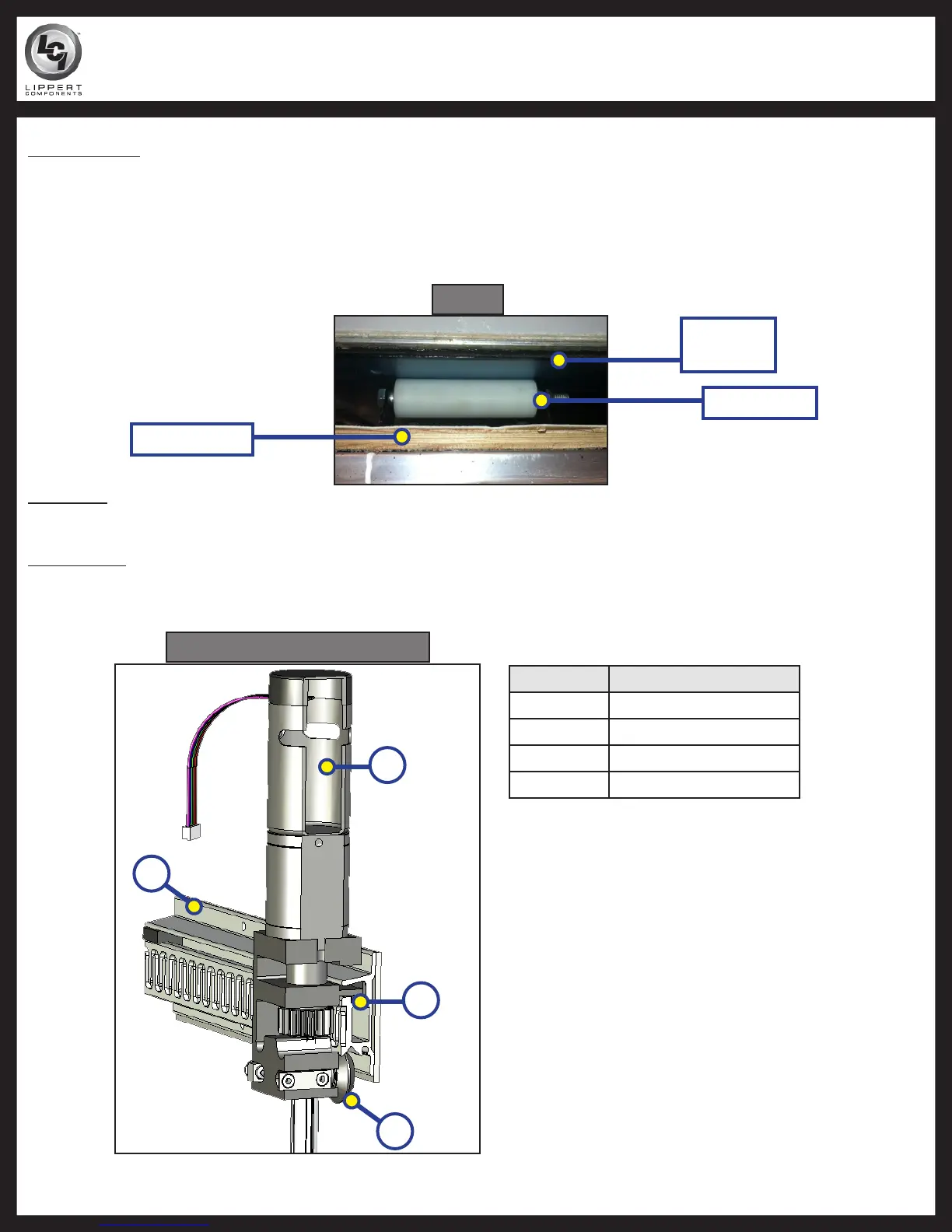

Lippert In-Wall Troubleshooting Guide
Floor Rollers
1. Check that the seals are not getting caught in the rollers, which could cause binding to the slide-out.
2. Check for proper roller engagement:
A. Rollers should not be digging into the floor of the slide-out.
B. Rollers should not spin freely beneath slide-out.
Callout Description
A Motor
B Gear Rack
C Shoe
D V-Roller
A
B
C
D
Fig. 16 - Assembly Detail View
V-Rollers
1. Visually inspect V-roller (Fig. 16D) for obstructions or damage.
Gear Racks
1. Check to make sure the screws in the gear rack are secured flush and not getting caught in the seals
(Fig. 16B).
Fig. 15
Floor Roller
Floor of Unit
Floor of
Slide-out
SCHWINTEK IN-WALL™ TROUBLESHOOTING GUIDE
