Lippert Components 13398-C2 User Manual

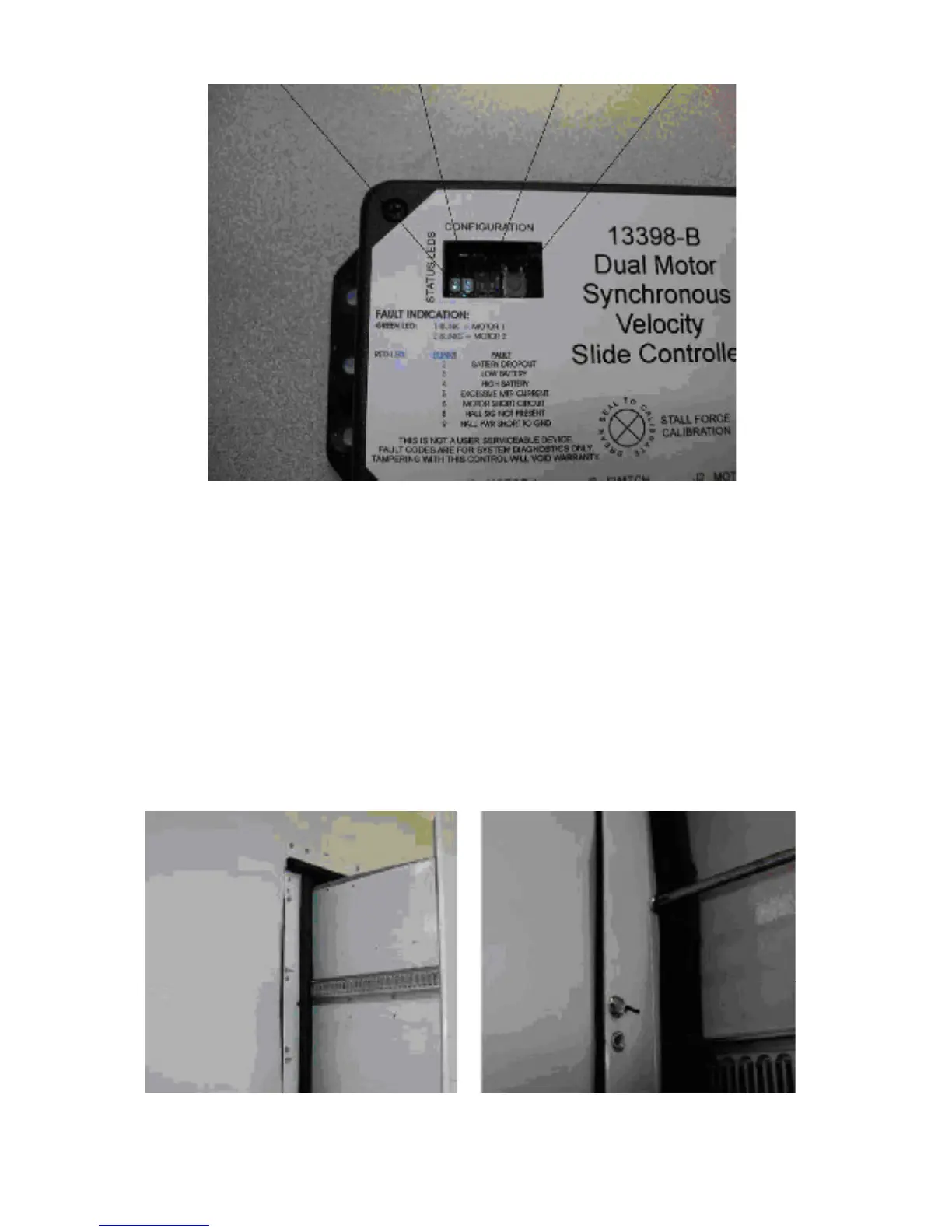

1-9 Motor direction switches
red led green led mode switch
motor direction
switches
Motor direction switches are used to change the direction of individual motors. If when trying to
extend or retract the room, one side goes in and the other side goes out, then there is a problem in
the wiring. The motor direction switches can be used to correct this problem. The left switch controls
motor 2 and the right switch controls motor 1. If motor 1 is going in the wrong direction then change
switch 1’s position. If motor 2 is going in the wrong direction then change switch 2’s position.
The motor direction switches can also be used to change the direction of the extend/retract switch. If
the room extends when the extend/retract switch is moved to the retract position, it’s direction can be
reversed by moving both switch 1 and switch 2 to their opposite positions. This feature can be used if
it is more convenient to change the motor direction switches than to rewire the extend/retract switch.
6
II. Motors
2-1 Motor disengagement
Ifmotorsneedtobedisengaged,followthesesteps:
1. On the outside of the room, approximately 2 inches above the top guide rack there is a motor
retention screw. Remove this screw.
2. Directly above the rack, pull back the weather stripping to expose the bottom of motor. Insert a
screwdriver between the motor and it’s mount and pry the motor up.
