19
LOADER MOUNTING

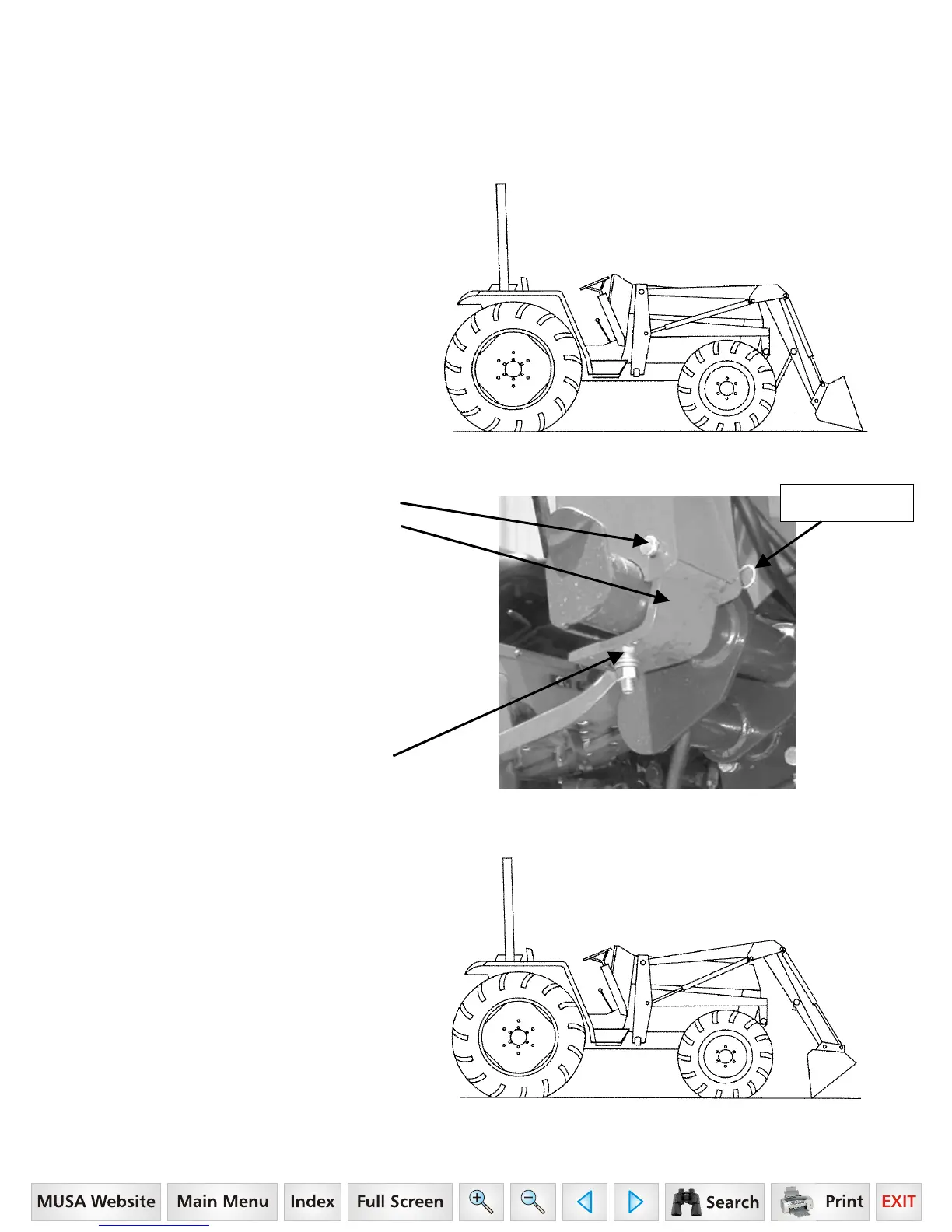

STEP 4. With the subframe secure in the
Front Mount, extend the bucket cylinders to
lower the subframe onto the Rear Mount.
Clevis pin
Hinge Assembly
STEP 5. Shut the tractor OFF and
reinstall hinge assemblies, clevis pins,
and hitch pin clips to both sides. Secure
hinges with the 1/2” flat washer, lock
washer and nut as shown typical each
side.
Carriage Bolt Assembly
and hardware
STEP 6. Start the tractor, raise the loader
off the ground and put bucket in dumped
position.
Lower loader to position bucket cutting
edge on ground and shut tractor OFF.
Remove parking leg and place in storage
position.
Hitch Pin Clip
16 Series, Model - 2816
