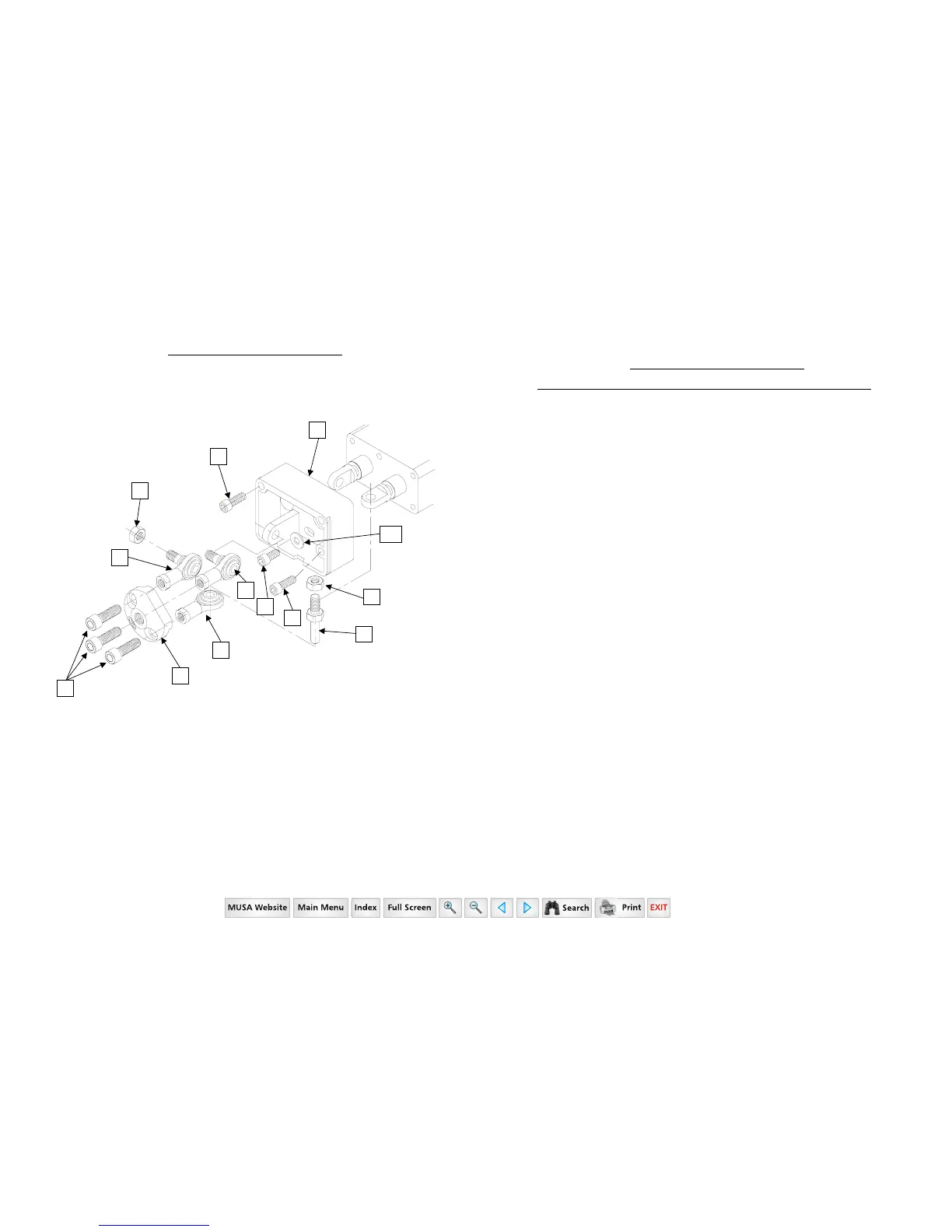

SINGLE LEVER CONTROL KIT
5
9
7
7
6
5
2
3
4
8
1
6
10
Form 1503-1067 Page 11 of 11
SINGLE LEVER CONTROL KIT
Reference Description Part No. Qty.
...................................... Single Lever Control Kit (complete) .........................1409-3076 ............. 1
1 .................................... Spool Stud...................................................................1409-3077 ............. 1
2 .................................... Rod End .......................................................................1409-3078 ............. 1
3 .................................... Adapter Plate ..............................................................1409-3079 ............. 1
4 .................................... Cap Screw ...................................................................0563-2387 ............. 3
5 .................................... Rod End Assembly.....................................................1409-3080 .............2
6 .................................... Hex Nut........................................................................0555-2000 ............. 3
7 .................................... Cap Screw ...................................................................0563-2008 ............. 2
8 .................................... Spool Lock Clevis.......................................................1409-3081 ............. 1
9 .................................... Cap Screw ...................................................................0563-2003 ............. 1
10 .................................. Washer.........................................................................0543-2005 ............. 1
11 .................................. Boot (not shown) ........................................................1409-3083 ............. 1
12 .................................. Handle Kit (not shown) ..............................................1409-3082 ............. 1
