18

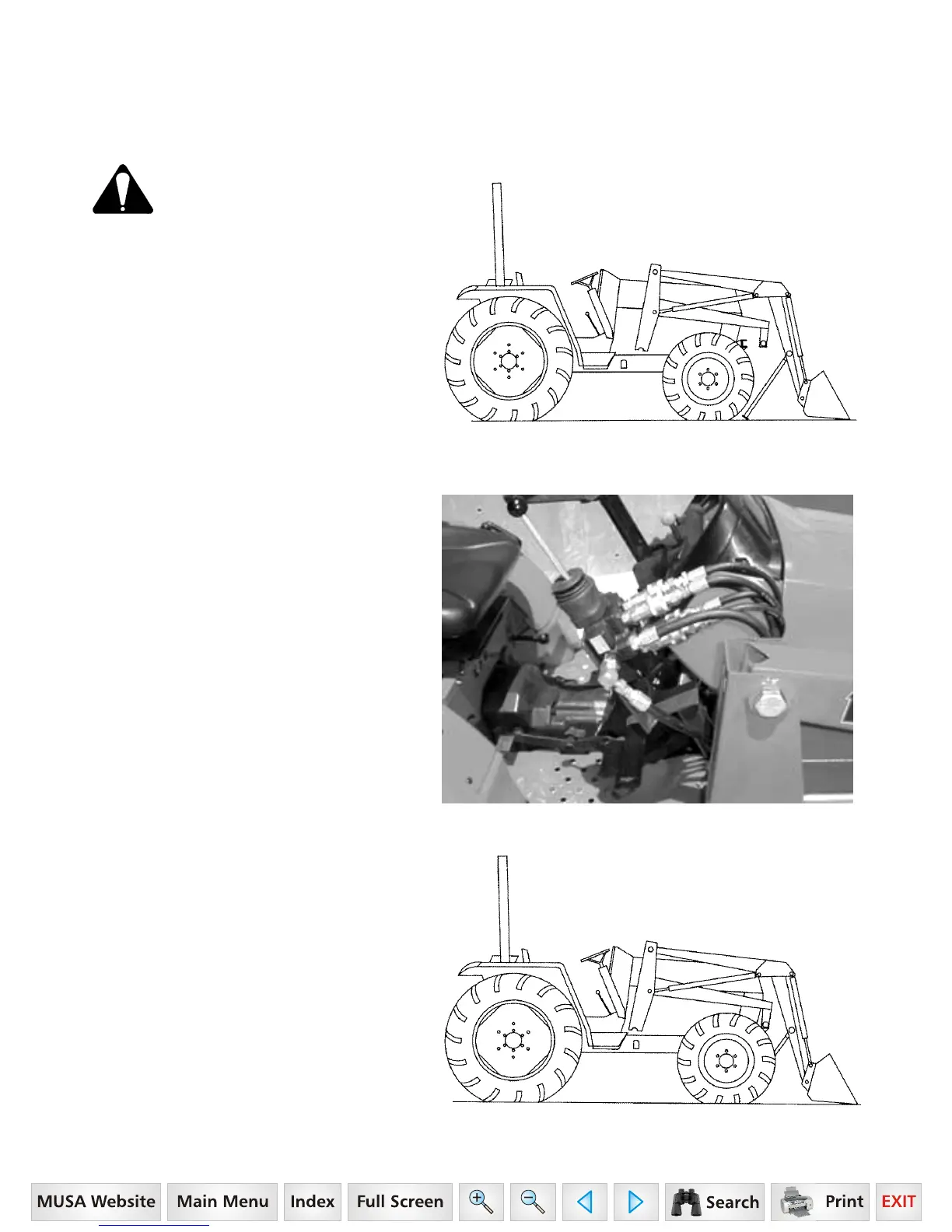

LOADER MOUNTING
CAUTION: Never allow weight
of tractor to be put on parking
leg when mounting loader.
Note: Remove hitch pin clips, clevis
pins, and hinge assemblies from bearing
boxes prior to mounting.
STEP 1. Carefully drive the tractor into the
loader to a position where the hydraulic
hoses can be connected to the control
valve.
Note: The tractor front mount should be
aligned with the subframe front crosstube.
STEP 2. Shut the tractor OFF and connect
the hydraulic couplings matching the color
code rings.
STEP 3. Start the tractor and drive ahead
slowly to position the subframe front
crosstube into the Front Mount.
Note: Activate the bucket cylinders and lift
cylinders as required to align the subframe
crosstube/front mount.
Shift the control valve (lift cylinder spool)
into the “float” position.
16 Series, Model - 2816
To Next Page
