Form 1503-1041A Page 1 of 7
Supplemental Cylinder Service Instructions
for ML106
Use the following instructions along with your Loader Operator’s Manual.
Applies to:
Lift cylinders(3160-2045) - ML106 Loader Serial Number 034812393 and after.
Tilt cylinders(3150-2055) - ML106 Loader Serial Number 034812387 and after.
Lift cylinders(3160-2049) - ML106 Loader Serial Number 041314853 and after.
Tilt cylinders(3150-2069) - ML106 Loader Serial Number 041314853 and after.
1. If your loader is equipped with cylinder part number 3160-2024 for lift cylinders and part
number 3150-2030 for tilt cylinders, refer to your Loader Operator’s Manual for exploded
Cylinder Parts Drawing, Parts List and cylinder hose requirements. Part numbers are
stamped on cylinder barrel at rod end. Also see picture Figure 1 below for help in
identifying your cylinder design.
2. If your loader is equipped with cylinder part number 3160-2045 for lift cylinders and part
number 3150-2055 for tilt cylinders, refer to the following for exploded Cylinder Parts
Drawing, Parts List and cylinder hose requirements on pages 2 thru 4. Part numbers are
stamped on cylinder barrel at rod end. Also see picture Figure 2 below for help in
identifying your cylinder design.
3. If your loader is equipped with cylinder part number 3160-2049 for lift cylinders and part
number 3150-2069 for tilt cylinders, refer to the following for exploded Cylinder Parts
Drawing, Parts List and cylinder hose requirements on pages 5 thru 7. Part numbers are
stamped on cylinder barrel at base end. Also see picture Figure 3 below for help in
identifying your cylinder design.

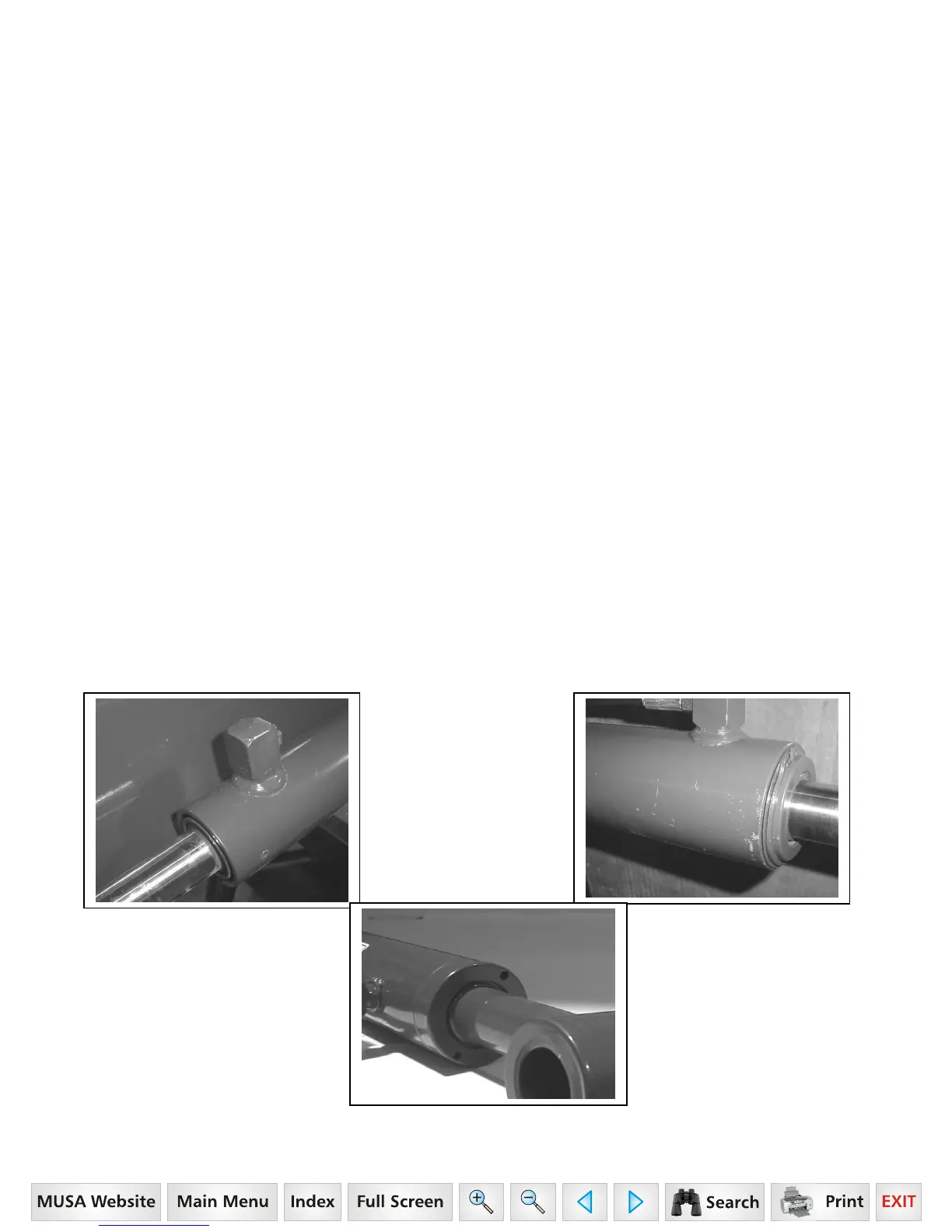

Figure 1 Figure 2
Figure 3
