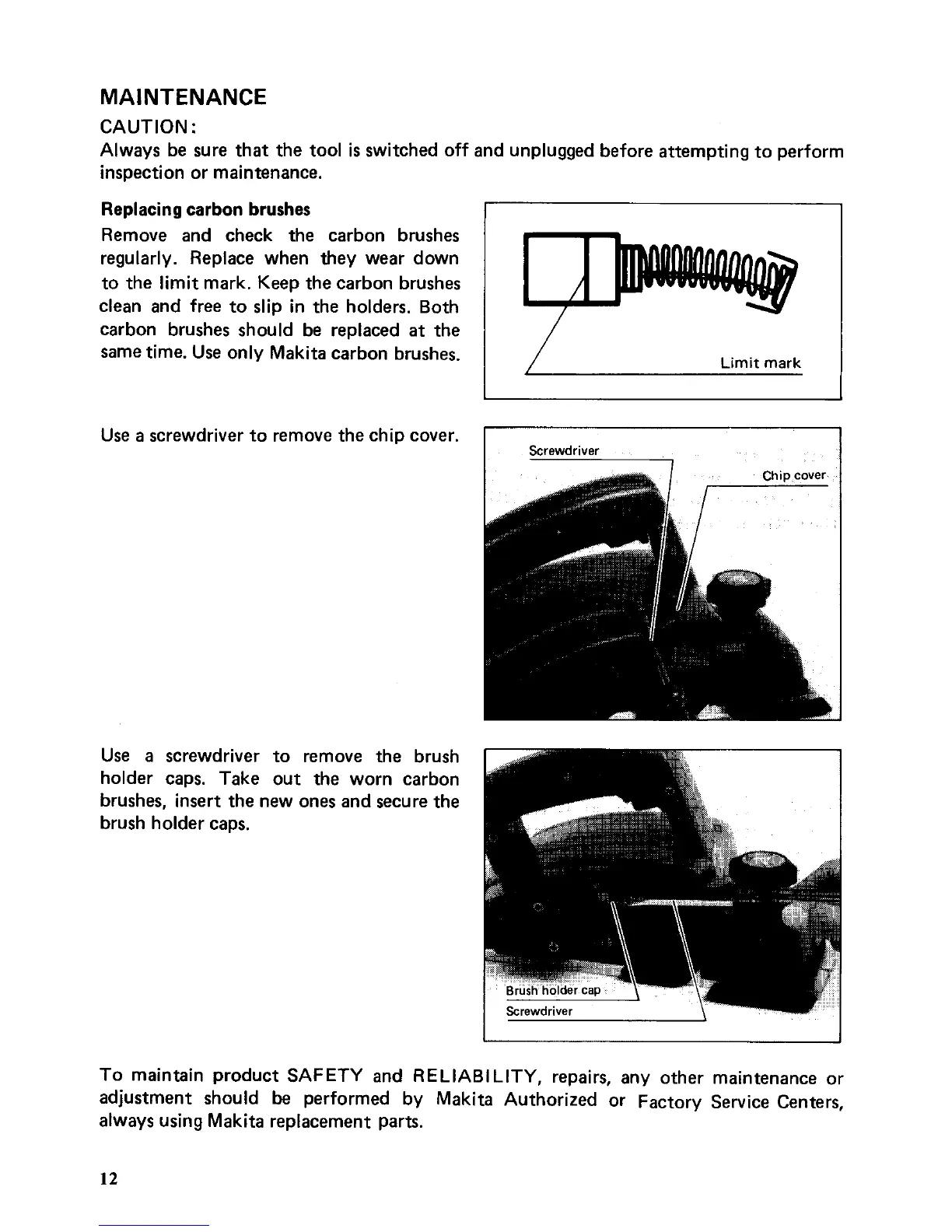

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon
brushes should be replaced
at the
same time. Use only Makita carbon brushes.
I
Limit mark
Use a screwdriver to remove the chip cover.
Screwdriver
Use a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder caps.
I I
To maintain product SAFETY and RELlABl LITY, repairs, any other maintenance or
adjustment should
be performed by Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
