6

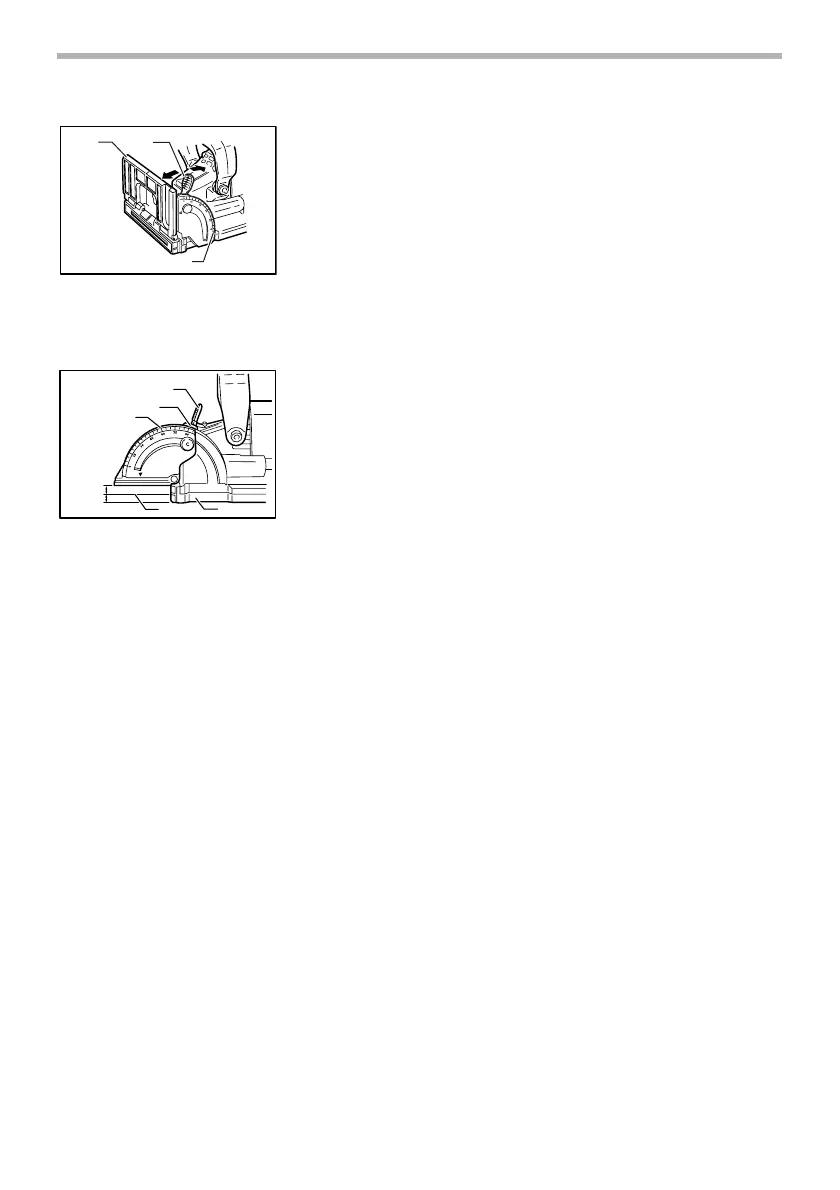

Fence
The angle of the fence can be adjusted between 0° and 90° (positive stops at
0°, 45° and 90°). To adjust the angle, loosen the lock lever and tilt the fence
until the pointer points to the desired graduation on the angle scale. Then
tighten the lock lever to secure the fence.
When the fence is set at 90°, both the distance from the center of the blade
thickness to the fence and the distance from the center of the blade thickness
to the bottom of the base are 10 mm.
1. Fence
2. Lock lever
3. Angle scale
1. Lock lever
2. Pointer
3. Angle scale
4. Center of blade thickness
5. Base
12
3
004577
10 mm (0.4”)
10 mm (0.4”)
1
2
3
45
004578
