ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Removing or installing the blade
CAUTION:
• When installing the cutter blade, mount the inner flange with the side
marked “22” facing toward you.
• When installing the circular saw blade, mount the inner flange with the
side marked “22” facing toward the tool.
To remove the blade, loosen the clamp screw and open the blade cover. Push
the shaft lock and loosen the lock nut using the lock nut wrench. To install the
blade, first mount the inner flange.
Then mount the blade and the lock nut. Securely tighten the lock nut using the
lock nut wrench. Close the blade cover and tighten the clamp screw to secure
the blade cover.
CAUTION:
• Use only Makita lock nut wrench provided to remove or install the blade.
• Always check the depth of cut after replacing the blade. Reajust it if
necessary.
Dust bag
To attach the dust bag, fit it onto the dust nozzle. If the dust bag becomes an
obstacle to your work, turn the dust nozzle to change the dust bag position.
When the dust bag is about half full, switch off and unplug the tool. Remove
the dust bag from the tool and pull the bag’s fastener out. Empty the dust bag
by tapping it lightly to remove as much of the dust as possible.
NOTE:
• If you connect a Makita vacuum cleaner to your plate joiner, more
efficient and cleaner operations can be performed.

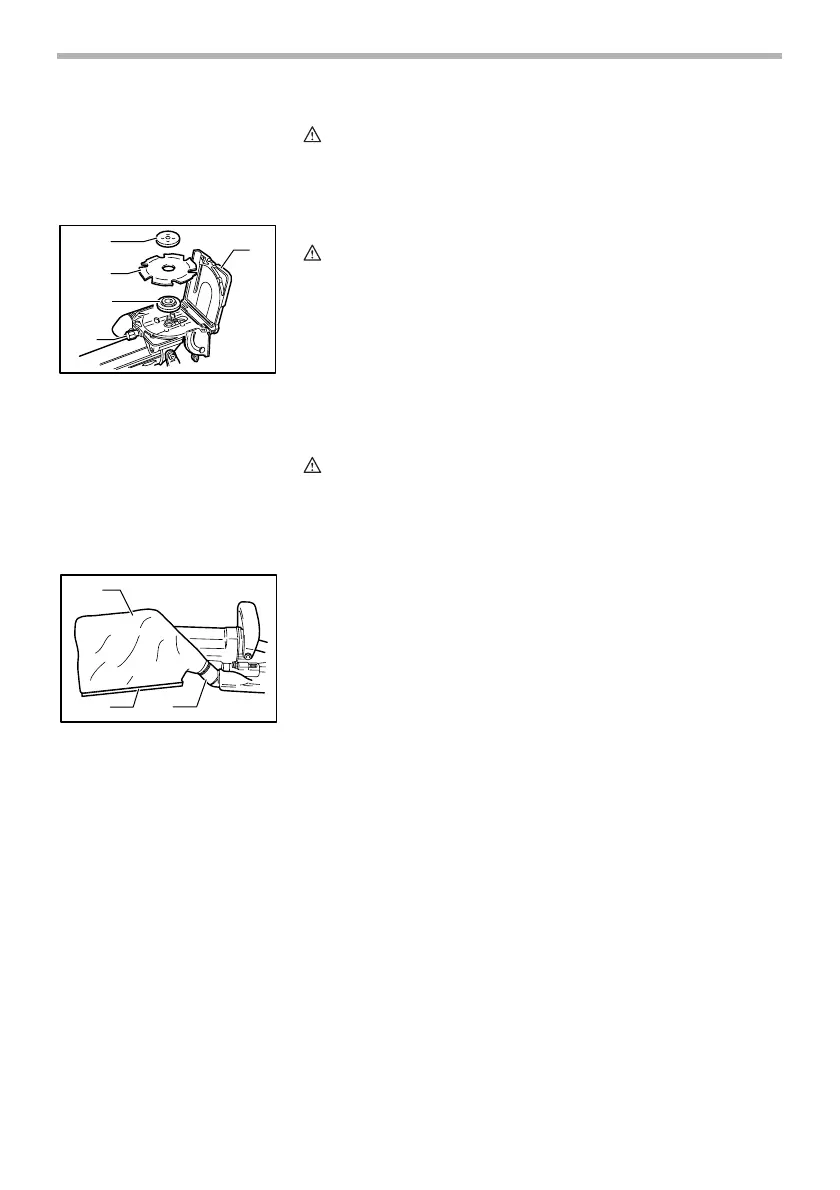

1. Lock nut
2. Cutter blade
3. Inner flange
4. Clamp screw
5. Blade cover
1
2
3
4
5
004582
1. Dust bag
2. Fastener
3. Dust nozzle
1
23
004583
