ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.

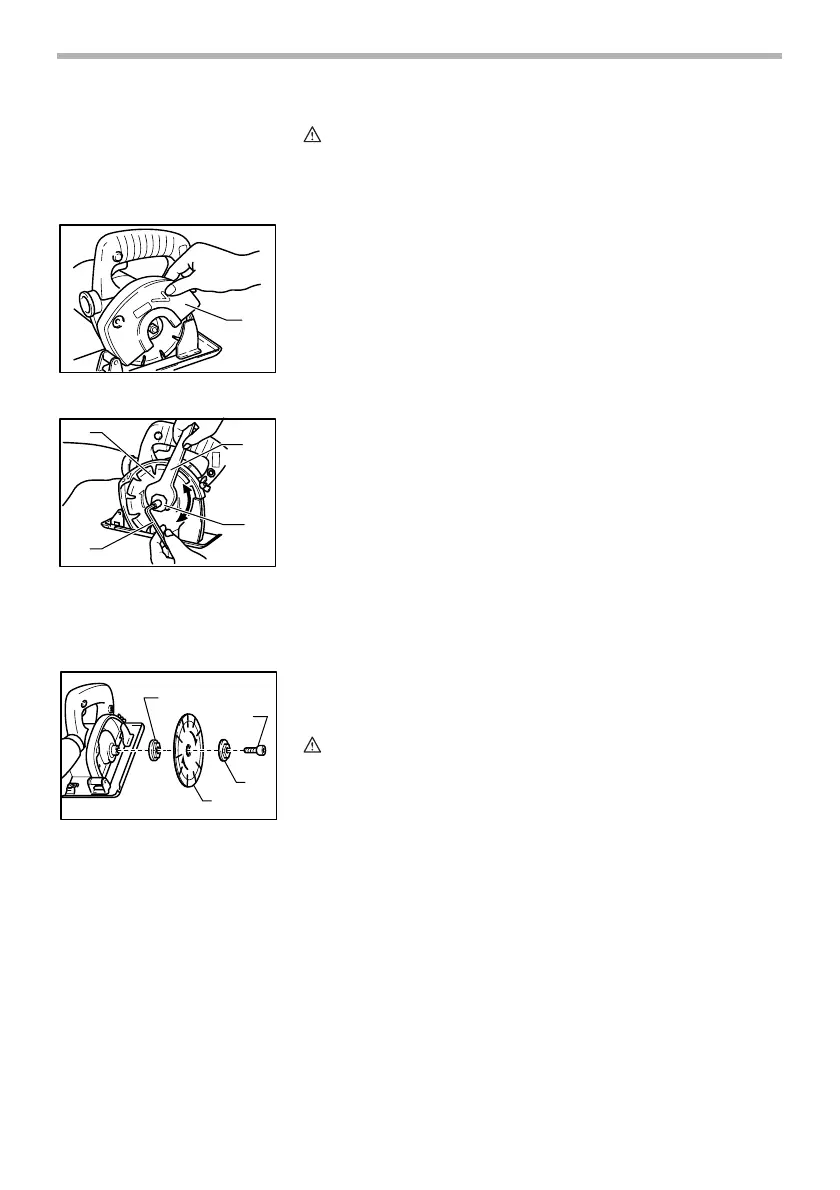

Installing or removing diamond wheel
Remove the blade cover.
Hold the outer flange with the wrench and loosen the hex socket head bolt
clockwise with the hex wrench. Then remove the hex socket head bolt, outer
flange and diamond wheel.
To install the wheel, follow the removal procedure in reverse. Always install the
wheel so that the arrow on the wheel points in the same direction as the arrow
on the blade case.
BE SURE TO TIGHTEN THE HEX BOLT SECURELY.
CAUTION:
• Use only the Makita wrench to install or remove the wheel.
1. Blade cover
1
005154
1. Diamond wheel
2. Hex wrench
3. Outer flange
4. Wrench
1
2
3
4
005155
1. Inner flange
2. Diamond wheel
3. Outer flange
4. Hex bolt
1
2
3
4
005156
