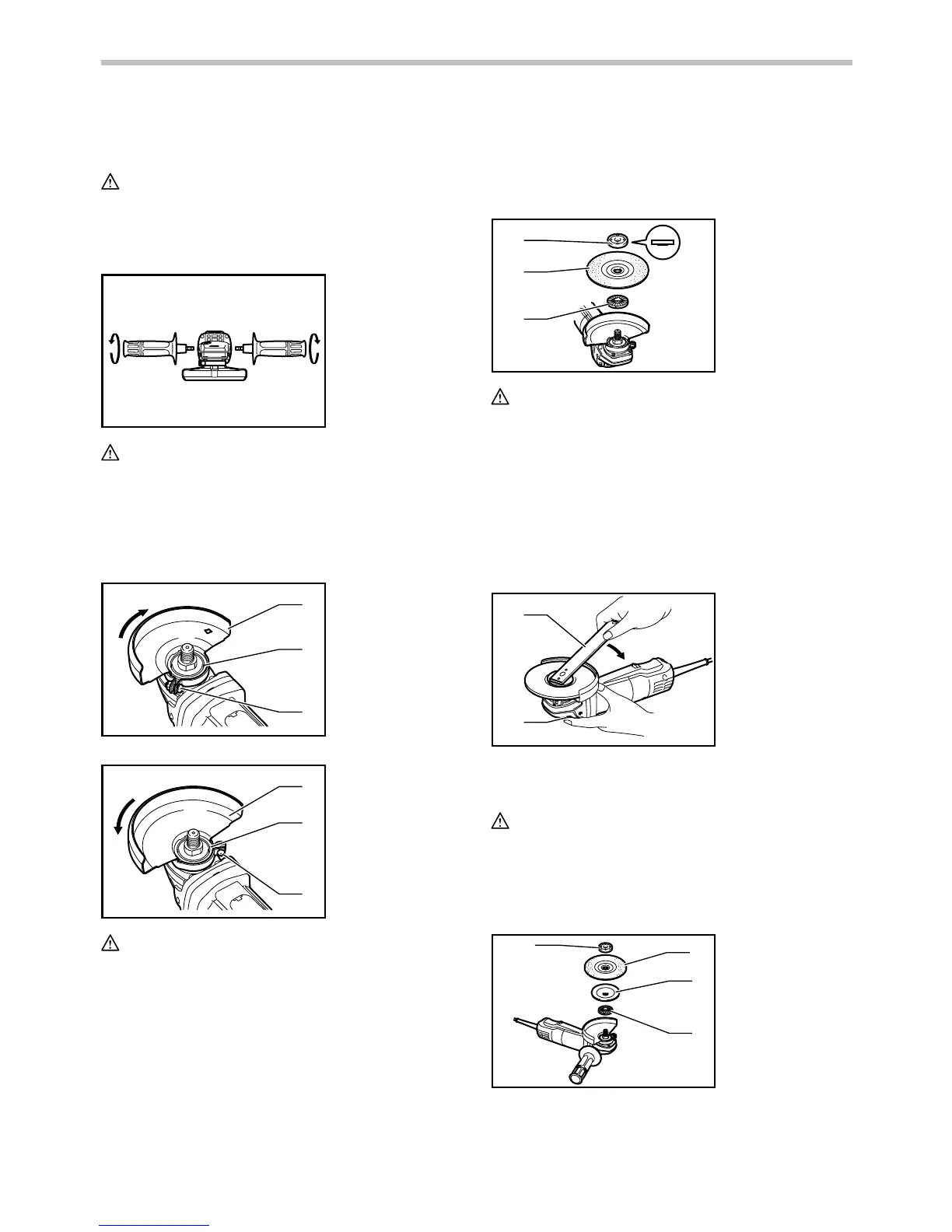

ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing side grip (handle)
006113
CAUTION:
• Always be sure that the side grip is installed
securely before operation.
Screw the side grip securely on the position of the tool as
shown in the figure.
Installing or removing wheel guard
1
2
3
006114
1
2
3
006115
CAUTION:
• When using a depressed center grinding
wheel/Multi-disc, flex wheel, wire wheel brush,
cut-off wheel or diamond wheel, the wheel guard
must be fitted on the tool so that the closed side of
the guard always points toward the operator.
Mount the wheel guard with the protrusion on the wheel
guard band aligned with the notch on the bearing box.
Then rotate the wheel guard around 180 degrees. Be
sure to tighten the screw securely.
To remove wheel guard, follow the installation procedure
in reverse.
Installing or removing depressed center
grinding wheel/Multi-disc
1
2
3
006116
WARNING:
• Always use supplied guard when depressed center
grinding wheel/Multi-disc is on tool. Wheel can
shatter during use and guard helps to reduce
chances of personal injury.
Mount the inner flange onto the spindle. Fit the wheel/disc
on the inner flange and screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
1
2
006117
To remove the wheel, follow the installation procedure in
reverse.
WARNING:
• Only actuate the shaft lock when the spindle is not
moving.
Installing or removing flex wheel
(optional accessory)
1
2
3
4
015769
1. Lock nut
2. Flex wheel
3. Back up pad
4. Inner flange
1. Lock nut wrench
2. Shaft lock
1. Lock nut
2. Depressed
center
wheel/Multi-disc
3. Inner flange
1. Wheel guard
2. Bearing box
3. Screw
1. Wheel guard
2. Bearing box
3. Screw
