9

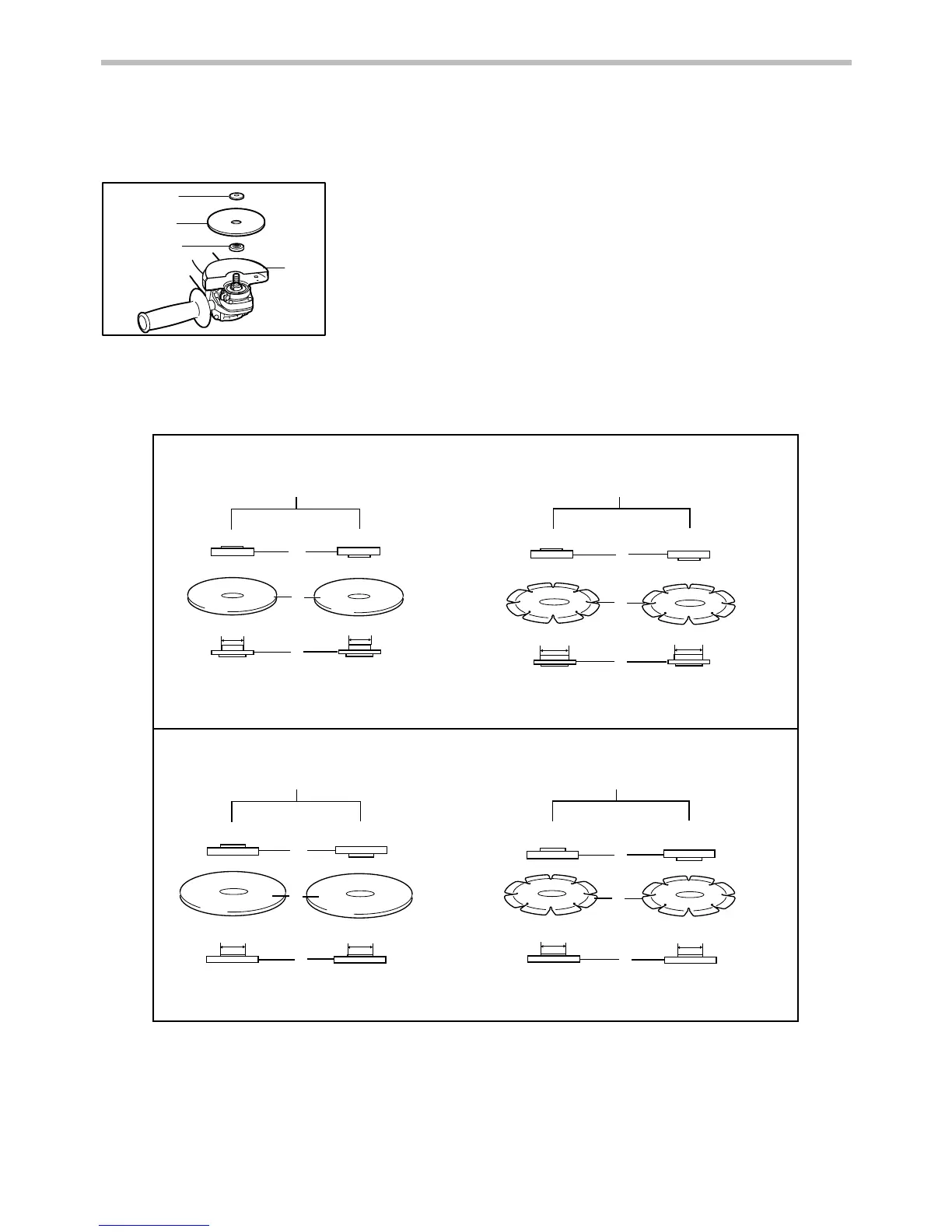

Operation with abrasive cut-off / diamond
wheel (optional accessory)
1
2
3
4
010855
The direction for mounting the lock nut and the inner
flange varies by wheel thickness. Refer to the table
below.
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
16 mm (5/8")
20 mm (13/16")
22.23 mm (7/8")
Abrasive cut-off wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
22.23 mm (7/8")
22.23 mm (7/8") 22.23 mm (7/8")
16 mm (5/8")
20 mm (13/16")
1
2
3
1
4
3
1. Lock nut 2. Abrasive cut-off wheel 3. Inner flange 4. Diamond wheel
100 mm (4")
115 mm (4 - 1/2") / 125 mm (5")
1. Lock nut 2. Abrasive cut-off wheel 3. Inner flange 4. Diamond wheel
1
2
3
1
4
3
010848
1. Lock nut
2. Abrasive cut-off
wheel/diamond
wheel
3. Inner flange
4. Wheel guard for
abrasive cut-off
wheel/diamond
wheel
