Makita AF505 User Manual

7

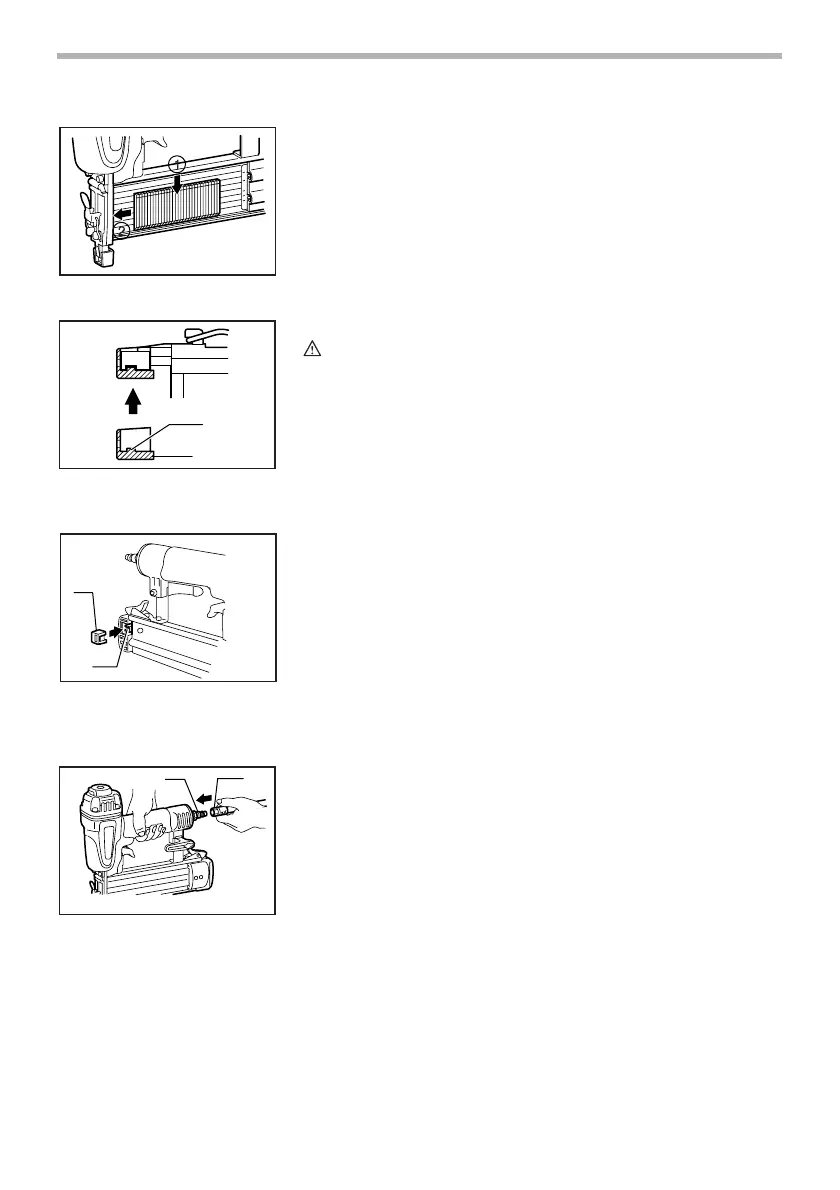

Align the tip of nails with the grooves at the bottom of the magazine and push
the whole part of nails toward the firing opening.
Close the sliding door.
Nose adapter
CAUTION:
• Always disconnect the hose before installing the nose adapter.
To prevent the surface of workpiece from being scratched or damaged, use
the nose adapter by fittiing the protrusion of the inside of nose adapter with the
notch in the contact arm.
Store the nose adapter in place when not in use. The place for storage is on
both sides of the tool and inside the carrying case.
Connecting air hose
Slip the air socket of the air hose onto the air fitting on the nailer. Be sure that
the air socket locks firmly into position when installed onto the air fitting. A
hose coupling must be installed on or near the tool in such a way that the pres-
sure reservoir will discharge at the time the air supply coupling is discon-
nected.
007184
1. Protrusion
2. Nose adapter
1
2
007185
1. Nose adapter
2. Place for storage
1
2
007186
1. Air fitting
2. Air socket
1
2
007187

Makita AF505 Specifications

General

Magazine capacity	100
Nail lengths supported	15 - 50 mm
Nail diameters supported	1.05 - 1.26 mm
Maximum operating pressure	8 bar
Minimum operating pressure	4 bar
Product color	Black, Green, Metallic
Belt hook included	Yes
Power source	Pneumatic

Weight and Dimensions

Weight	1400 g
