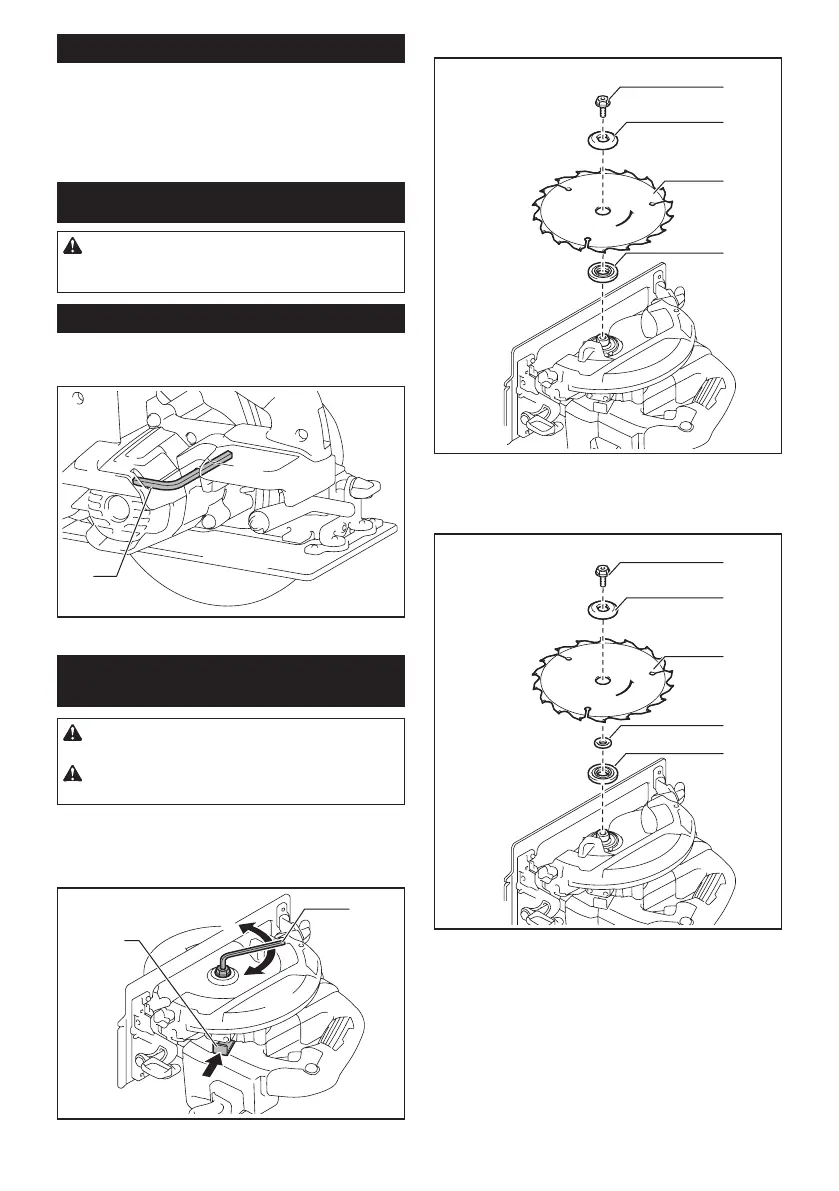

12 ENGLISH
Electronic function
Thetoolsequippedwithelectronicfunctionareeasyto
operatebecauseofthefollowingfeature(s).
Soft start feature
Soft start because of suppressed starting shock.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Hex wrench storage
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
1
►1. Hex wrench
Removing or installing circular saw
blade
CAUTION: Be sure the circular saw blade is
installed with teeth pointing up at the front of the tool.
CAUTION: Use only the Makita wrench to
install or remove the circular saw blade.
Toremovethecircularsawblade,presstheshaftlockfully
so that the circular saw blade cannot revolve and use the
hex wrench to loosen the hex bolt. Then remove the hex bolt,
ring(countryspecic),outerangeandcircularsawblade.
1
2
4
3
►1. Shaft lock 2. Hex wrench 3. Loosen 4. Tighten
For tool without the ring
1
2
3
4
►1. Hex bolt 2.Outerange3. Circular saw blade
4.Innerange
For tool with the ring
1
2
3
5
4
►1. Hex bolt 2.Outerange3. Circular saw blade
4. Ring 5.Innerange
To install the circular saw blade, follow the removal
procedure in reverse.

Makita DGA513 Specifications

General

Voltage	18V
Disc Diameter	125 mm
No Load Speed	3, 000-8, 500 RPM
Brushless Motor	Yes
Electric Brake	Yes
Variable Speed Control	Yes
Spindle Thread	M14 x 2
Overall Length	382 mm
Arbor Size	22.23 mm
