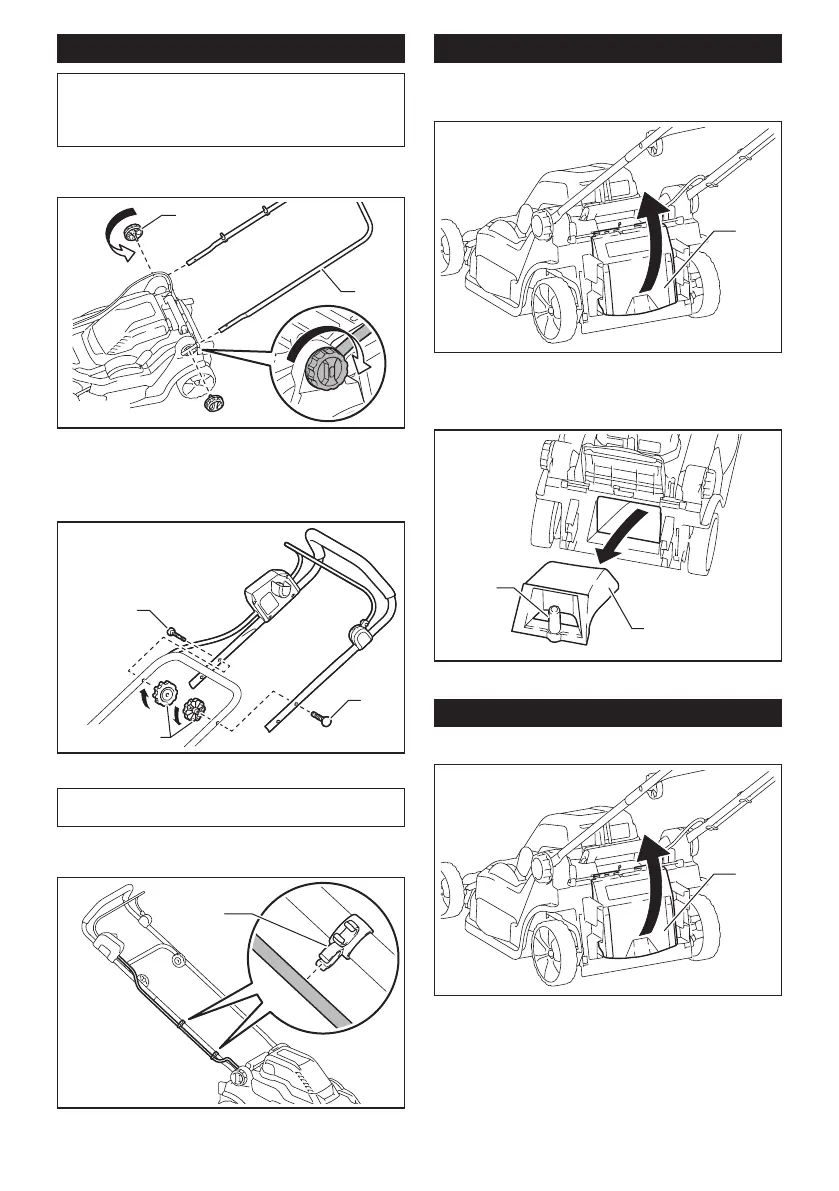

Makita DLM432Z User Manual

7 ENGLISH
Installing the handle
NOTICE: When installing handles, position the
cords so that they are not caught by anything
between the handles. If the cord is damaged, the
mower switch may not work.
1. Slide the both ends of lower handle into the grooves
ofthemowerthenfullytightentheclampingscrews.
1
2
►1. Clamping screw 2. Lower handle
2. Align the screw holes of upper handle and lower
handle. Secure them with the clamping screws and
nuts.
2
2
1
►1. Clamping nut 2. Clamping screw
NOTE:Holdtheupperhandlermlysothatitdoes
notdropoffyourhand.
3. Attach the holders to the handle. Position the
powersupplycordasshowninthegure.
1
►1. Holder
Removing the mulching plug
Optional accessory
1. Open the rear cover.
1
►1. Rear cover
2. Holdthemulchingplugbythehandle,andthen
pullitoutfromthemowerbodyasshowninthegure.
1
2
►1. Mulching plug 2. Handle
Installing the grass basket
1. Open the rear cover.
1
►1. Rear cover

Makita DLM432Z Specifications

General

Cutting width	430 mm
Grass catcher	Yes
Number of wheels	4 wheel(s)
Rotational speed	3600 RPM
Maximum lawn area	575 m²
Sound power level	92 dB
Standard deviation	3 dB
Rear wheels diameter	160 mm
Sound pressure level	81 dB
Front wheels diameter	140 mm
Maximum cutting height	75 mm
Minimum cutting height	20 mm
Grass collecting volume	50 L
Number of height positions	13
Power source	Battery
Battery voltage	18 V

Weight and Dimensions

Depth	1490 mm
Width	460 mm
Height	1045 mm
