18 ENGLISH
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery
cartridge firmly when installing or removing
battery cartridge. Failure to hold the tool and the
battery cartridge firmly may cause
them to slip off
your hands and result in
damage to the tool and battery cartridge and a
personal injury.
► Fig.3: 1. Red indicator 2. Button 3. Battery
cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not, it
may accidentally fall
out of the tool,
causing injury to you or
someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity
► Fig.4: 1. Battery indicator 2. Check button
Press the check button to indicate the remaining battery
capacities. The battery indicators correspond to each
battery.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator ►
Fig.5: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to
indicate the remaining battery capacity. The indicator
lamps light up for a few seconds.

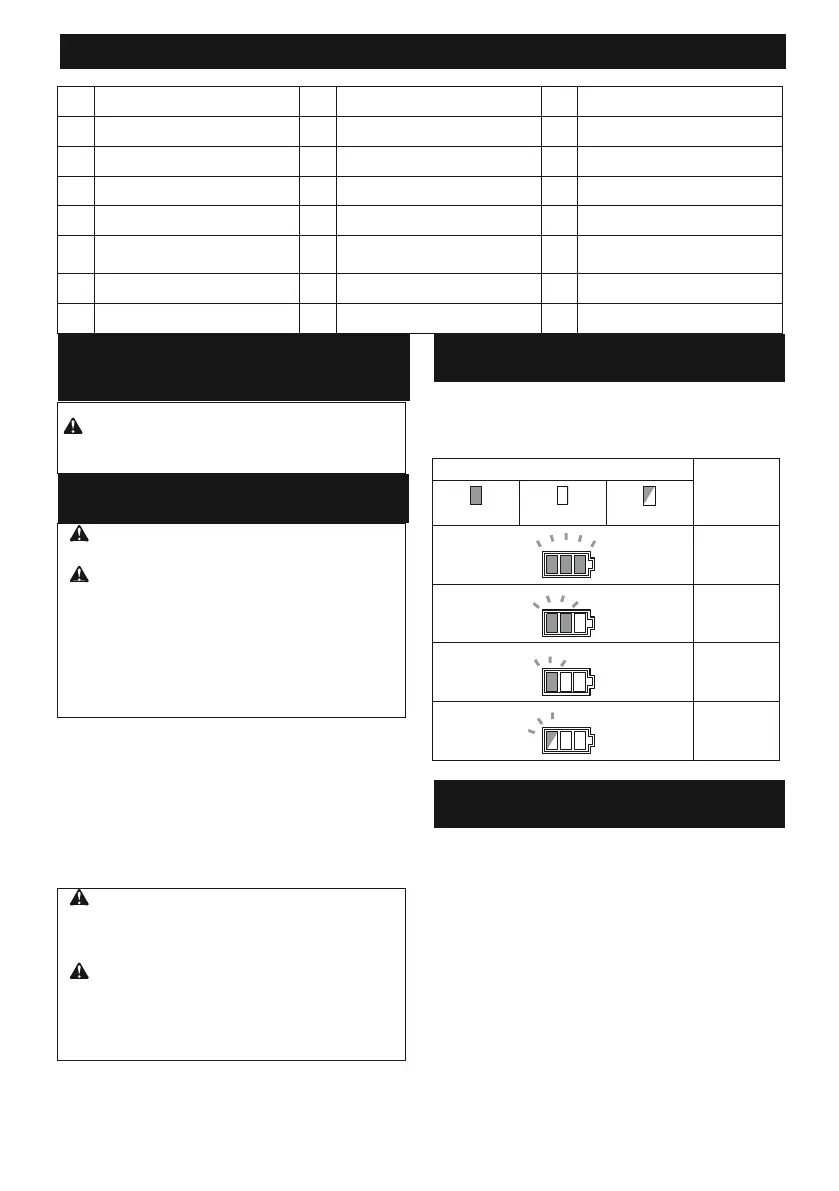

PARTS DESCRIPTION
► Fig.2
1
Battery indicator
2
Check button
3
Switch trigger
4
Top handle
5
Lock-off lever
6
Front hand guard
7
Guide bar
8
Saw chain
9
Chain catcher
10
Retaining nut
11
Chain adjusting screw
12
Battery cartridge
13
Main power lamp
14
Mode indicator
15
Main power switch
16
Cap
17
Adjusting screw (for
oil pump)
18
Carabiner
19
Front handle
20
Oil tank cap
21
Spike bumper
22
Guide bar cover
-
-
-
-
Battery indicator status
Remaining
battery
capacity
On
Off
Blinking
% to 100%
50
20
% to 50%
0
% to 20%
Charge the
battery

Makita DUC306 Specifications

General

Idle speed	- RPM
Motor type	Brushless
Chain pitch	3/8 \
Chain speed	20 m/s
Blade length	300 mm
Product color	Black, Blue
Oil tank capacity	0.2 L
Kickback protection	Yes
Power source	Battery
Battery voltage	18 V

Weight and Dimensions

Length	270 mm
Weight	5100 g
