Makita EK7650H Technical Information

[4] DISASSEMBLY/ASSEMBLY
[4]-7. Engine block (cont.)
Repair
P 13/ 19
DISASSEMBLING
Fig. 46
Fig. 47

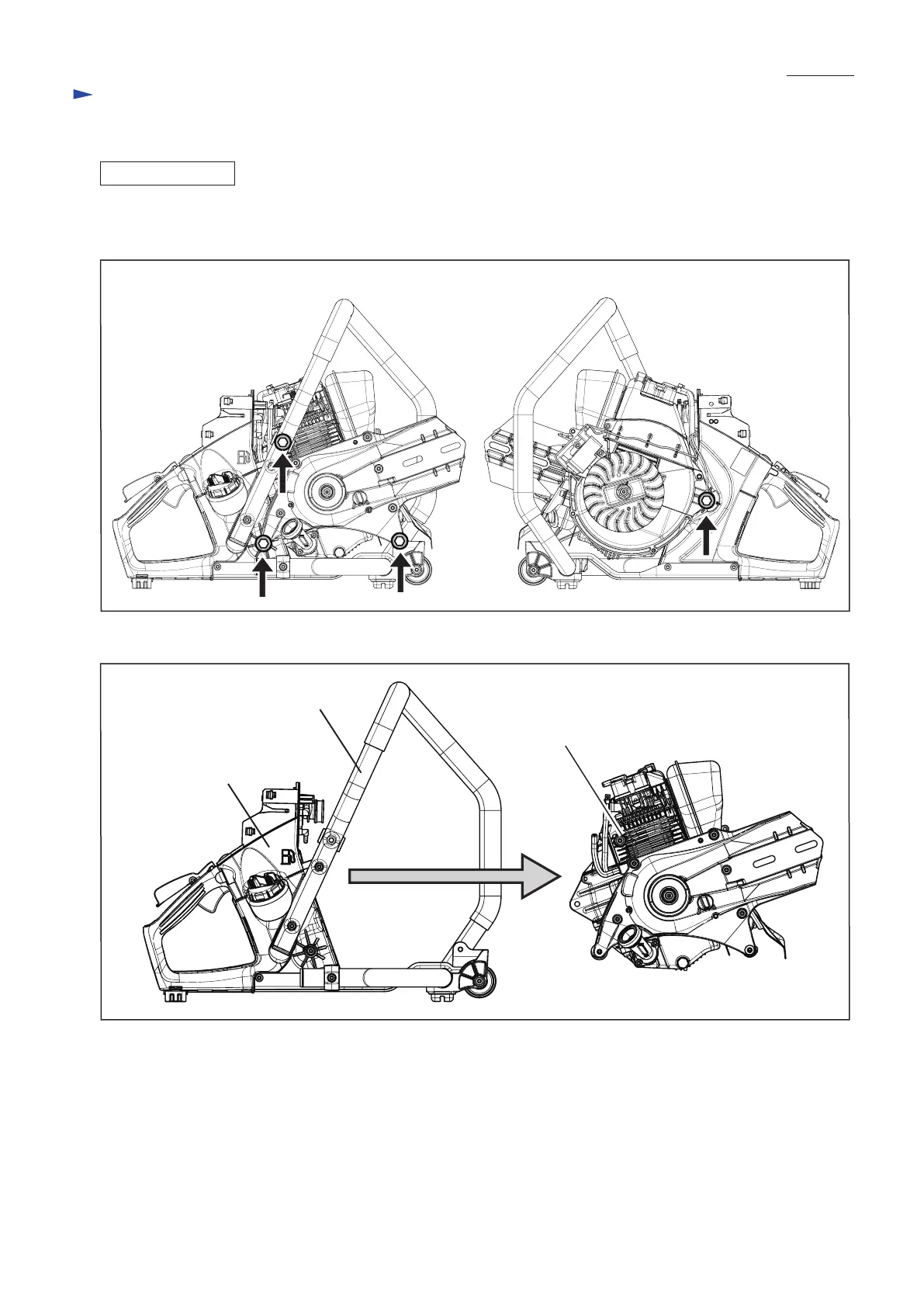

(6) Remove four M6x30 Hexalobular socket head bolts that fasten Front handle, Tank complete and Engine. (Fig. 46)
Engine block can be removed. (Fig. 47)
[Viewed from Blade installation side] [Viewed from Starter assembly installation side]
Engine block
Front handle
Tank complete
M6x30 Hexalobular socket
head bolt (3 pcs.)
M6x30 Hexalobular socket
head bolt
