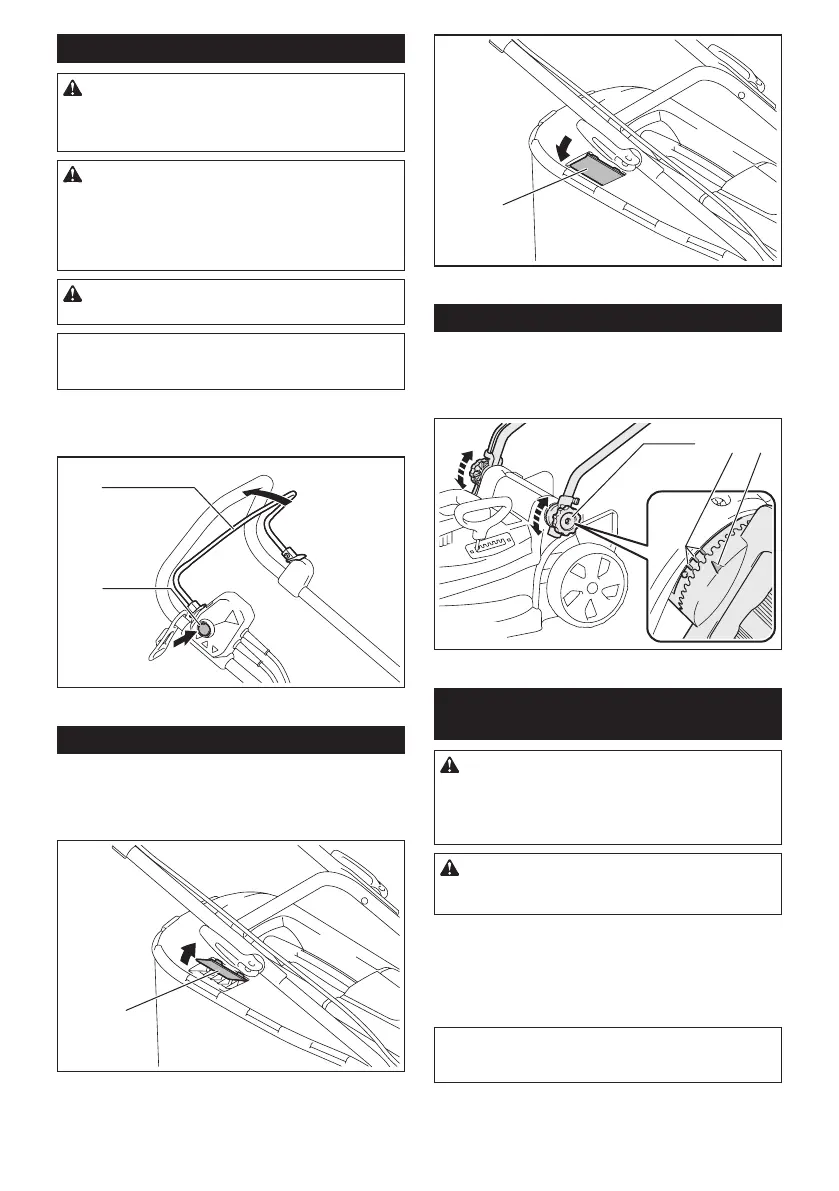

8 ENGLISH
Switch action
WARNING: Before plugging in the tool,
always check that the switch lever actuates
properly and returns to the “OFF” position when
released.
WARNING: For your safety, this machine is
equipped with the lock-off button which prevents
the tool from unintended starting. Never use the
machine if it starts when you pull the switch lever
without pressing the lock-off button. Ask your
local Makita Service Center for repairs.
WARNING: Never disable the lock function or
tape down the lock-off button.
NOTICE: Do not pull the switch lever forcibly
without pressing the lock-off button. The switch
may break.
To start the machine, press the lock-off button, and
then squeeze in the switch lever. To stop the machine,
release the switch lever.
1
2
►1. Switch lever 2. Lock-off button
Level indicator of grass basket
The level indicator of the grass basket opens during
mowing if the grass basket is not full. If the grass basket
is full, the level indicator closes during mowing. If it's
full, empty the grass basket before starting mowing.
1
►1. Level indicator
1
►1. Level indicator
Adjusting the handle height
Thehandleheightcanbeadjustedinthreelevels.
Loosen the thumb nuts while holding the handle, then
adjustthehandleheightbyaligningthearrowwithone
of the marks, and then tighten the thumb nuts.
321
►1. Thumb nut 2. Mark 3. Arrow
Motor protection system (Over
current relay)
WARNING: If the machine suddenly stops
while operating it, release the switch lever
and unplug the extension cord. Otherwise, the
machine may suddenly restart and cause an
injury.
CAUTION: Before removing an object that is
jamming the blade, be sure to wear gloves and
unplug the extension cord from the power socket.
Ifthecutoffgrassordirtisjamminginsideofthemain
body, the machine stops automatically to protect the
motor (over current relay). In this case, unplug the
extension cord from the power socket, then remove the
materialcausingthejam,andthenletthemachinecool
down for a few minutes before turning on the machine.
NOTE: The over current relay may be activated when
wet or long grass gets caught up inside of the main
body.

Makita ELM3320 Specifications

General

Type	Walk behind lawn mower
Easy to use	Yes
Cutting width	33 mm
Grass catcher	No
Product color	Black, Turquoise
Maximum lawn area	400 m²
Mulching function	-
Handle(s) features	Adjustable
Maximum cutting height	55 mm
Minimum cutting height	20 mm
Number of height positions	3
Power source	AC

Weight and Dimensions

Depth	1230 mm
Width	380 mm
Height	1110 mm
