19 ENGLISH

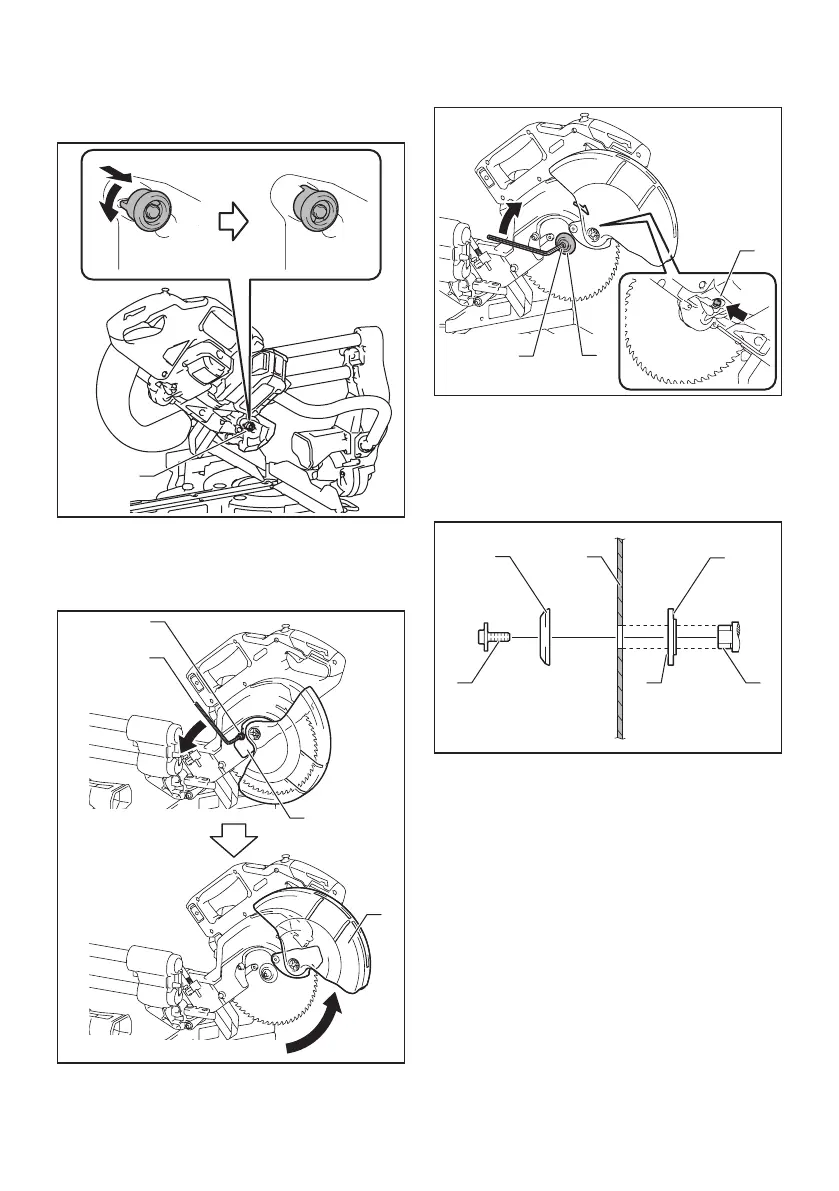

Removing the blade
To remove the circular saw blade, perform the following
steps:
1. Lock the carriage in the raised position by pulling
and turning the stopper pin in a locked position.
1
► 1. Stopper pin
2. Use the hex wrench to loosen the hex socket bolt
holding the center cover. Then, raise the blade guard
and center cover.
1
3
4
► 1. Hex wrench 2. Hex socket bolt 3. Center cover
4. Blade guard
3. Press the shaft lock to lock the spindle and use
the hex wrench to loosen the hex socket bolt clockwise.
Then remove the hex socket bolt, outer ange and
circular saw blade.
1
2
3
► 1. Hex socket bolt (left-handed) 2. Outer ange
3. Shaft lock
4. If the inner ange is removed, install it on the
spindle with its recessed side facing the circular saw
blade. If the ange is installed incorrectly the ange will
rub against the machine.
1
2
3
4
5
6
► 1. Outer ange 2. Circular saw blade 3. Inner
ange 4. Hex socket bolt (left-handed) 5. Spindle
6. Recessed side
