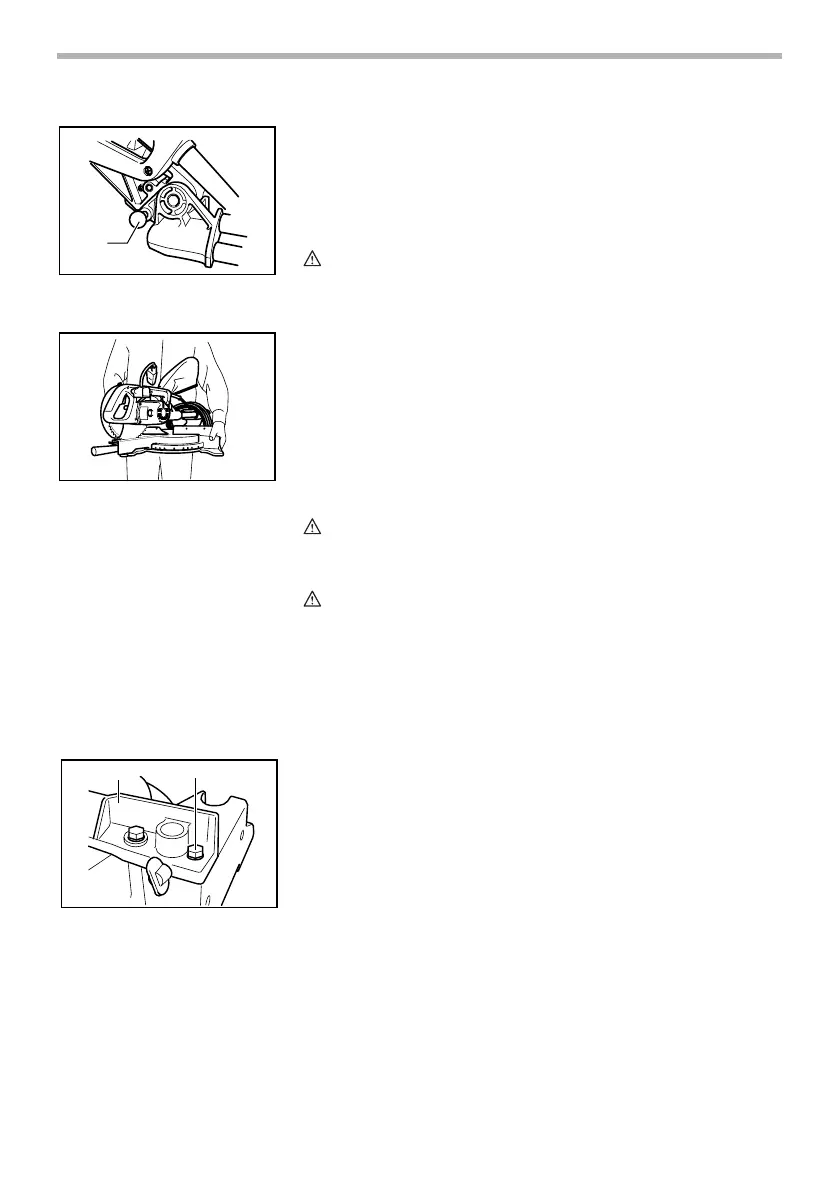

Carrying tool
Make sure that the tool is unplugged. Secure the blade at 0° bevel angle and
the turn base at right miter angle fully. Secure the slide poles after pulling the
carriage toward the guide fence fully. Lower the handle fully and lock it in the
lowered position by pushing in the stopper pin.
Carry the tool by holding both sides of the tool base as shown in the figure. If
you remove the holders, dust bag, etc., you can carry the tool more easily.
CAUTION:
• Always secure all moving portions before carrying the tool.
• Stopper pin is for carrying and storage purposes only and not for any
cutting operations.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
WARNING:
• Always be sure that the blade is sharp and clean for the best and safest
performance.
Adjusting the cutting angle
This tool is carefully adjusted and aligned at the factory, but rough handling
may have affected the alignment. If your tool is not aligned properly, perform
the following:
1. Miter angle
Push the carriage toward the guide fence and tighten two clamp screws
to secure the carriage.
Loosen the grip which secures the turn base. Turn the turn base so that
the pointer points to 0° on the miter scale. Then turn the turn base
slightly clockwise and counterclockwise to seat the turn base in the 0°
miter notch. (Leave as it is if the pointer does not point to 0°.) Loosen the
hex bolts securing the guide fence using the socket wrench.
1. Stopper pin
1
003923
005700
1. Guide fence
2. Hex bolt
12
002242

Makita LS0714 Specifications

General

Input power	1010 W
Power source	AC
Blade bore	20 mm
Blade diameter	190.5 mm
Idle speed (max)	6000 RPM
Bevel setting (left)	45 °
Miter setting (left)	47 °
Bevel setting (right)	5 °
Miter setting (right)	57 °
Cutting capacity 45° miter	52 x 212 mm

Weight and Dimensions

Depth	672 mm
Width	431.8 mm
Height	457.2 mm
Weight	13700 g
