INSTALLATION
Bench mounting
When the tool is shipped, the handle is locked in the lowered position by the
stopper pin. Release the stopper pin by lowering the handle slightly and pulling
the stopper pin.
This tool should be bolted with two bolts to a level and stable surface using the
bolt holes provided in the tool’s base. This will help prevent tipping and possi-
ble injury.
Turn the adjusting bolt clockwise or counterclockwise so that it comes into a
contact with the floor surface to keep the tool stable.
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Blade guard
For all countries other than European countries
When lowering the handle, the blade guard rises automatically. The guard is
spring loaded so it returns to its original position when the cut is completed
and the handle is raised. NEVER DEFEAT OR REMOVE THE BLADE GUARD
OR THE SPRING WHICH ATTACHES TO THE GUARD.
In the interest of your personal safety, always maintain the blade guard in good
condition. Any irregular operation of the blade guard should be corrected
immediately. Check to assure spring loaded return action of guard. NEVER
USE THE TOOL IF THE BLADE GUARD OR SPRING ARE DAMAGED,
FAULTY OR REMOVED. DOING SO IS HIGHLY DANGEROUS AND CAN
CAUSE SERIOUS PERSONAL INJURY.

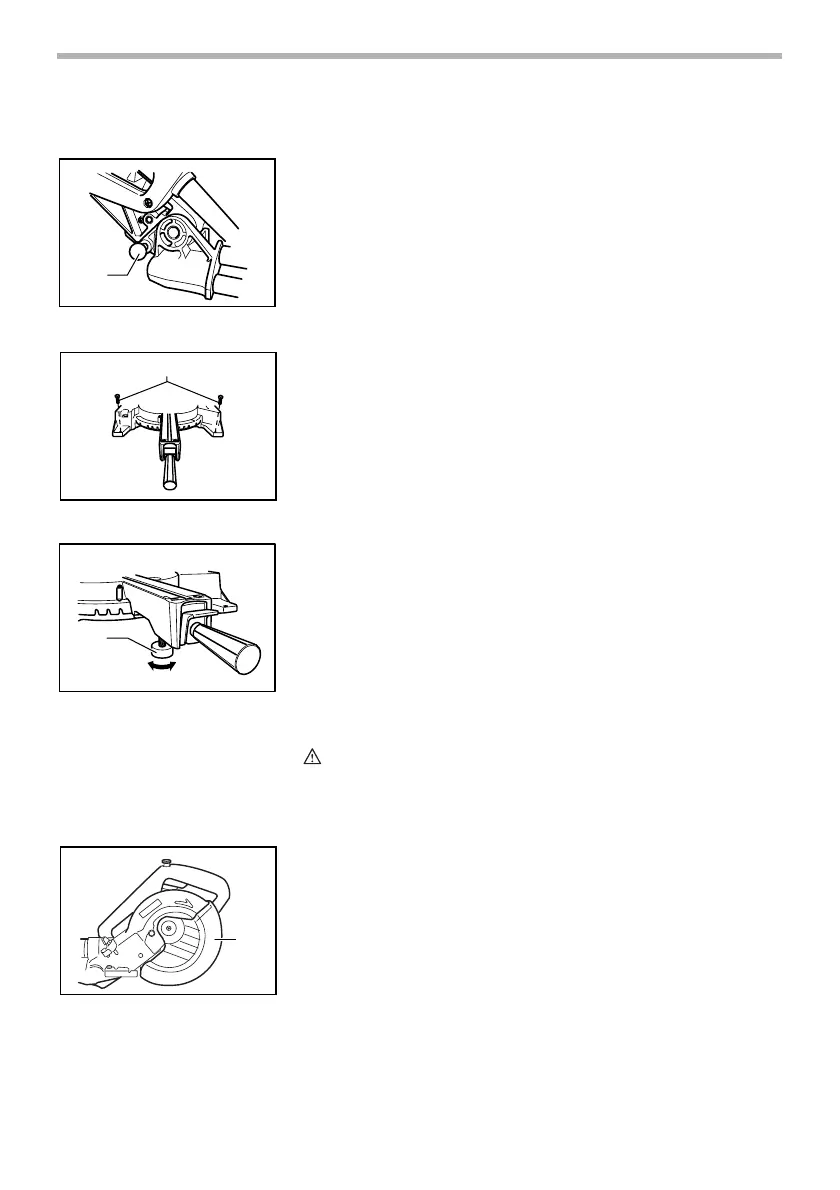

1. Stopper pin
1
003923
1. Bolt
1
003924
1. Adjusting bolt
1
003925
1. Blade guard
1
002252

Makita LS0714 Specifications

General

Input power	1010 W
Power source	AC
Blade bore	20 mm
Blade diameter	190.5 mm
Idle speed (max)	6000 RPM
Bevel setting (left)	45 °
Miter setting (left)	47 °
Bevel setting (right)	5 °
Miter setting (right)	57 °
Cutting capacity 45° miter	52 x 212 mm

Weight and Dimensions

Depth	672 mm
Width	431.8 mm
Height	457.2 mm
Weight	13700 g
