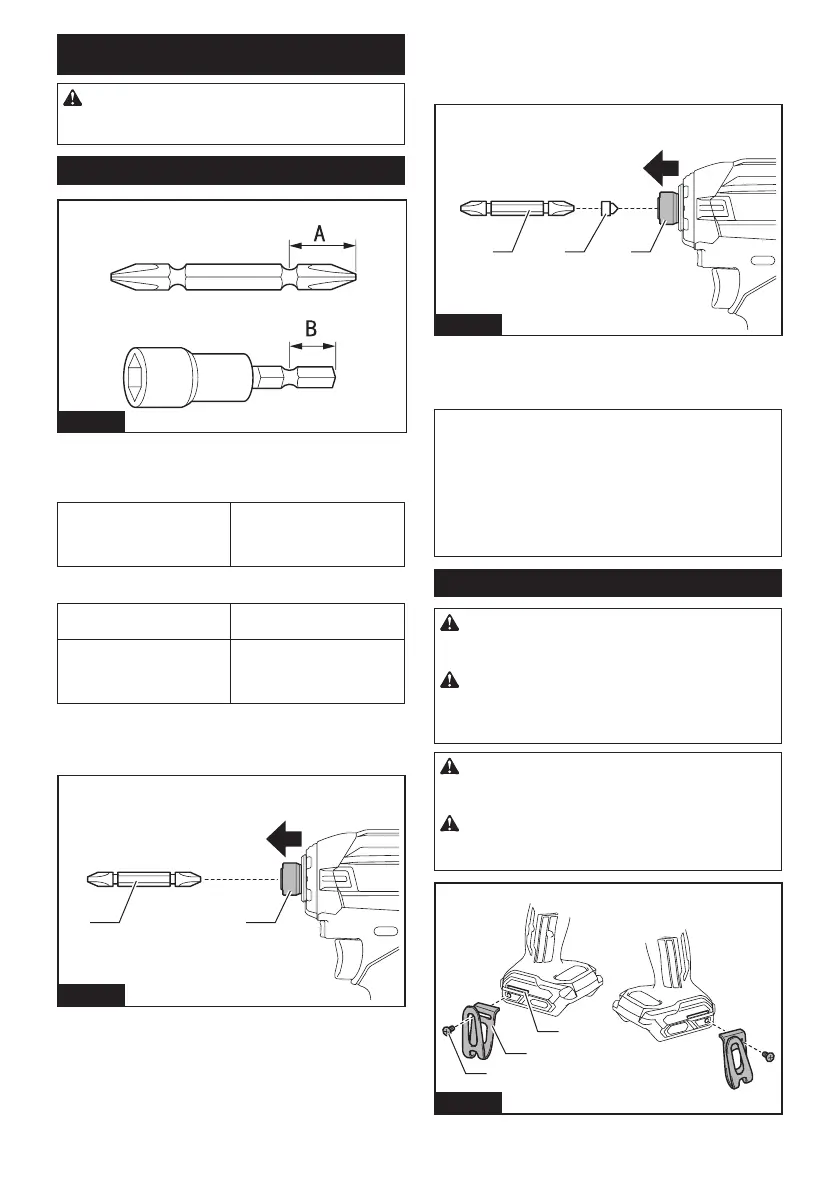

16 ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing driver bit/socket bit
Fig.12
Useonlydriverbit/socketbitthathasinsertingportionshown
inthegure.Donotuseanyotherdriverbit/socketbit.
For tool with shallow driver bit hole
A=12mm
B=9mm
Useonlythesetypeofdriver
bit. Follow the procedure
1. (Note) Bit-piece is not
necessary.
For tool with deep driver bit hole
A=17mm
B=14mm
Toinstallthesetypesofdriver
bits, follow the procedure 1.
A=12mm
B=9mm
Toinstallthesetypesofdriver
bits, follow the procedure 2.
(Note)Bit-pieceisnecessary
for installing the bit.
Procedure 1
For tool without one-touch type sleeve
1 2
Fig.13
►1. Driver bit 2. Sleeve
To install the driver bit, pull the sleeve in the direction of the
arrow and insert the driver bit into the sleeve as far as it will go.
Then release the sleeve to secure the driver bit.
For tool with one-touch type sleeve
To install the driver bit, insert the driver bit into the
sleeve as far as it will go.
Procedure 2
In addition to Procedure 1, insert the bit-piece into the
sleeve with its pointed end facing in.
1 32
Fig.14
►1. Driver bit 2. Bit-piece 3. Sleeve
To remove the driver bit, pull the sleeve in the direction
of the arrow and pull the driver bit out.
NOTE:
If the driver bit is not inserted deep enough into
the sleeve, the sleeve will not return to its original posi-
tionandthedriverbitwillnotbesecured.Inthiscase,try
re-inserting the bit according to the instructions above.
NOTE: Whenitisdi󰀩culttoinsertthedriverbit,pullthe
sleeve and insert it into the sleeve as far as it will go.
NOTE: After inserting the driver bit, make sure that it
isrmlysecured.Ifitcomesout,donotuseit.
Installing hook
WARNING: Use the hanging/mounting parts
for their intended purposes only, e.g., hanging the
tool on a tool belt between jobs or work intervals.
WARNING: Be careful not to overload the
hook as too much force or irregular overburden
may cause damages to the tool resulting in per-
sonal injury.
CAUTION: When installing the hook, always
secure it with the screw rmly.Ifnot,thehookmay
comeo󰀨fromthetoolandresultinthepersonalinjury.
CAUTION: Make sure to hang the tool securely
before releasing your hold.Insu󰀩cientorunbalanced
hookingmaycausefallingo󰀨andyoumaybeinjured.
3
2
1
Fig.15
►1. Groove 2. Hook 3. Screw
